2.
Check Enable FTP.
3.
Select Server Type.
4.
Input the Server IP Address and Port.
5.
Congure the FTP Sengs, and the user name and password are required for the server login.
6.
Set the Directory Structure, Parent Directory and Child Directory.
7.
Set the picture naming rules.
8.
Click Save to enable the sengs.
6.5.12 Video & Audio Sengs
Video Parameters
Steps
1.
Click Video/Audio → Video to enter the
sengs page.

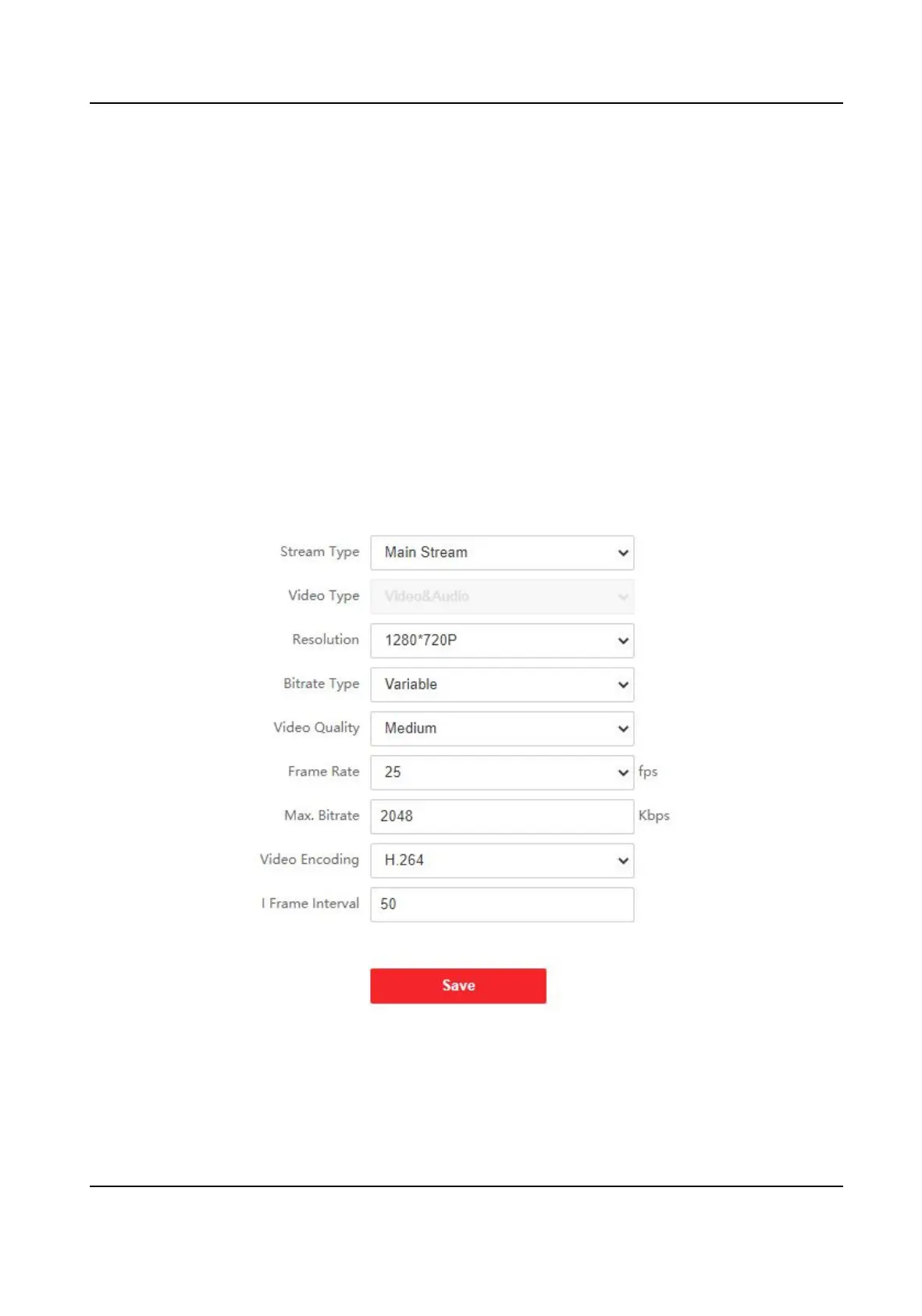

Figure 6-8 Video Parameters
2.
Select the Stream Type.
3.
Congure the video parameters.
DS-KD8003 Series Module Door Staon User Manual
85

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-KD8003 Series and is the answer not in the manual?

HIKVISION DS-KD8003 Series Specifications

General IconGeneral
Ingress ProtectionIP65
Operation SystemEmbedded Linux
Camera2MP
Video Compression StandardH.264
Resolution1920 x 1080
Video Input1 channel
Video Output1 channel
Audio InputBuilt-in microphone
Audio OutputBuilt-in speaker
Audio Compression StandardG.711
Audio Compression Rate64 Kbps
Ethernet10/100 Mbps
Network ProtocolTCP/IP
RS-4851 channel
Alarm Input1 channel
Debug Port1 channel
TF CardSupport up to 128GB
InstallationWall-mounted
Power Supply12 VDC
Working Humidity10% to 90% (No Condensation)
Network InterfaceRJ45
Working Voltage12 VDC
