HIKVISION DS-KH6320-TE1 User Manual

The indoor staon and indoor extension can receive calls from the door staon, the
main staon or iVMS-4200 Client.
On the call from door staon interface, there are 2 unlock buons: Unlock 1, and
Unlock 2. When you tap Unlock 1, the building gate will open by default, and when
you tap Unlock 2, the door connected to the door staon with the secure control
door unit will open.
Tap the capture
buon to capture the live view picture when speaking with the door
staon. And prompts "Captured" will display on the screen.
Indoor extension can receive calls from the door staon and the main staon only.
2.1.5 View Call Logs
Steps
1.
Tap Call → to enter the call log page.

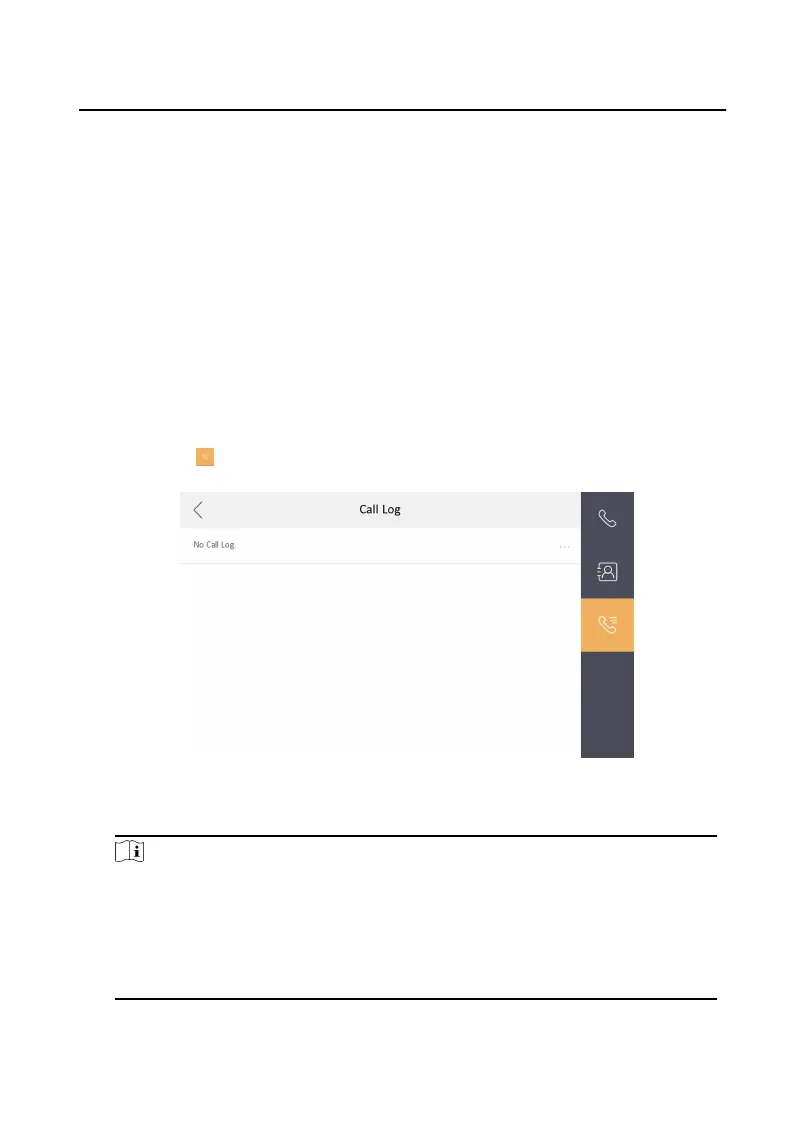

Figure 2-3 Call Logs
2. Tap a piece of call logs in the list to call back.
Note
●
Indoor extension does not support this funcon.
●
The indoor staon saves call logs from door staon, outer door staon,
management center and other indoor staons.
●
Hold a piece of call logs to open the call logs handling menu. Tap Delete to
delete the piece of call logs. Tap Clear to delete all pieces of call logs.
Network Indoor Staon Operaon Guide
4

HIKVISION DS-KH6320-TE1 Specifications

General

Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Product color	Black, Grey
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, SIP, RTSP
Video codecs	G.711u
Connectivity technology	Wired
Maximum number of cameras supported	-
Operating system installed	Linux
Power consumption (typical)	6 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176920

Weight and Dimensions

Depth	15.1 mm
Width	200 mm
Height	140 mm
