Network Camera User Manual
106

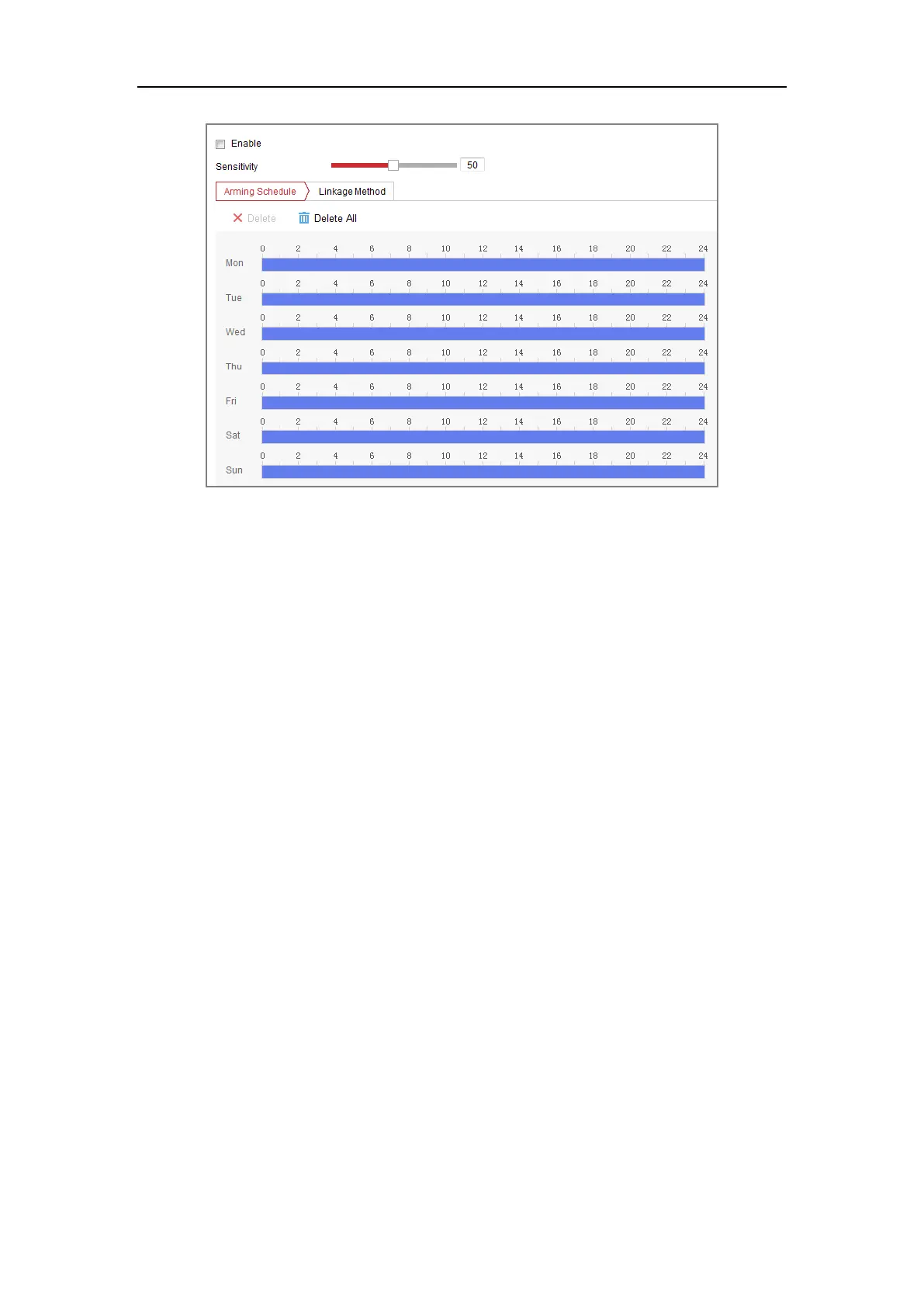

Figure 10-18 Scene Change Detection
2. Check the checkbox of Enable to enable the function.
3. Click-and-drag the slider to set the detection sensitivity. The sensitivity value
ranges from 1 to 100, and the higher the value is, the more easily the change of
scene can trigger the alarm.
4. Click Arming Schedule to set the arming schedule. Refer to Task 2 Set the
Arming Schedule for Motion Detection in Section 10.1.1 for detailed steps.
5. Click Linkage Method to select the linkage methods for scene change, including
Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS,
Trigger Channel and Trigger Alarm Output.
6. Click Save to save the settings.
10.2.4 Configuring Face Detection
Purpose:
Face detection function detects the face appears in the surveillance scene, and some
certain actions can be taken when the alarm is triggered.
Steps:
To Next Page
