HIKVISION NETWORK CAMERA User Manual

User Manual of Network Camera
28

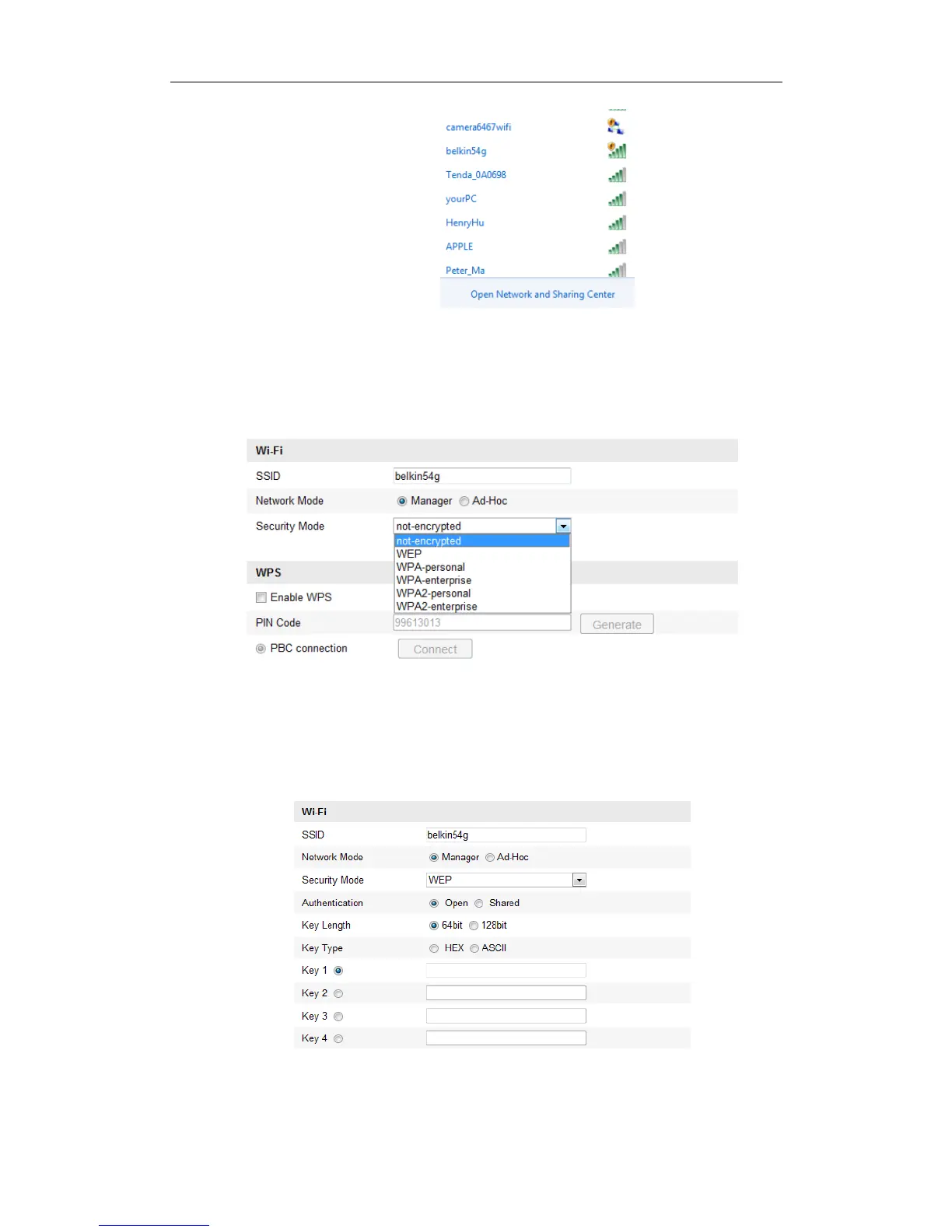

Figure 4-5 Ad-hoc Connection Point
6. Choose the SSID and connect.
Security Mode Description:
Figure 4-6 Security Mode
You can choose the Security Mode as not-encrypted, WEP, WPA-personal,
WPA-enterprise, WPA2-personal, and WPA2-enterprise.
WEP mode:
Figure 4-7 WEP Mode
 Authentication - Select Open or Shared Key System Authentication, depending on

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
