User Manual of Network Camera
33

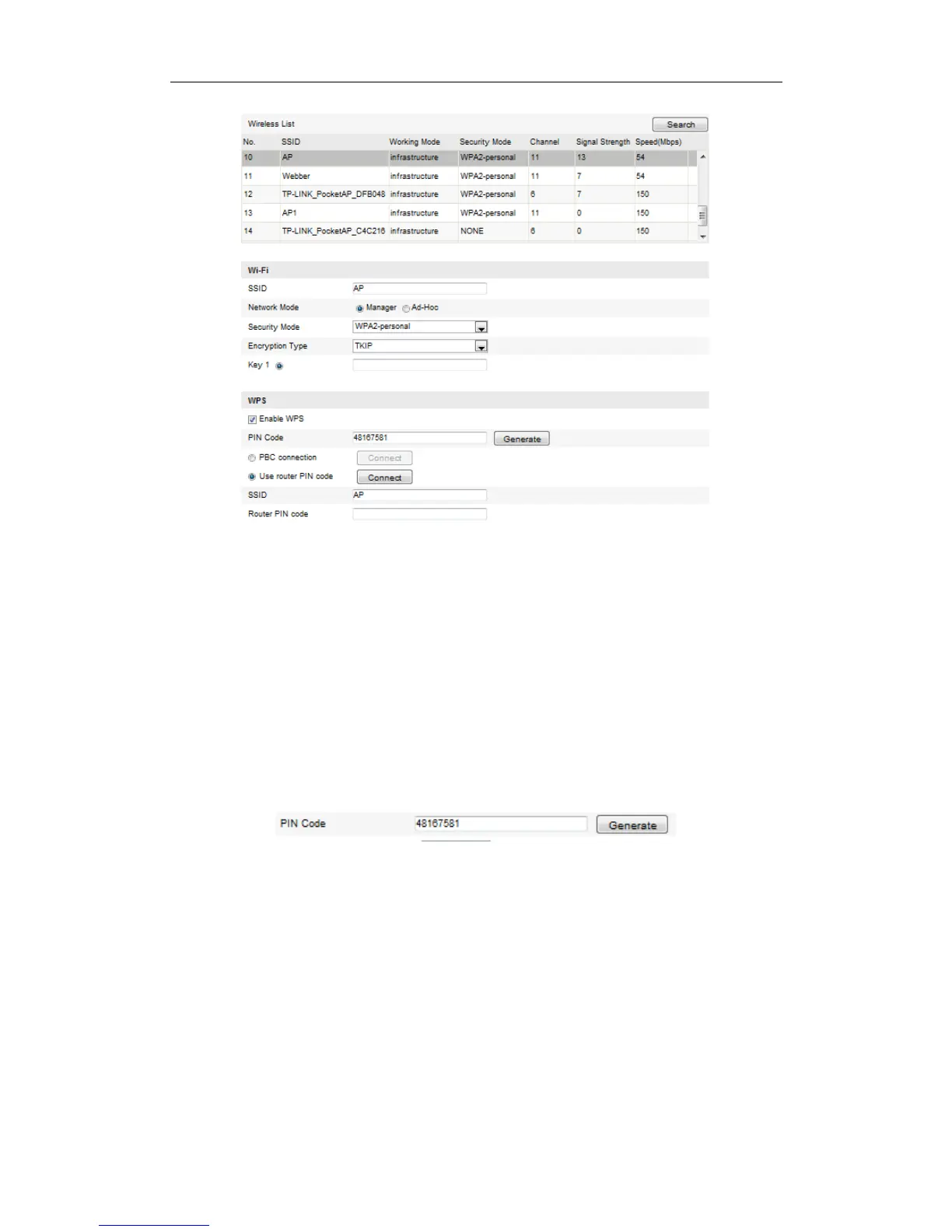

Figure 4-11 Wi-Fi Settings – WPS PIN Mode
2. Choose Use route PIN code.
If the PIN code is generated from the router side, you should enter the PIN code you
get from the router side in the Router PIN code field.
3. Click Connect.
Or
You can generate the PIN code on the camera side. And the expired time for the PIN
code is 120 seconds.
1. Click Generate.
2. Enter the code to the router, in the example, enter 48167581 to the router.
4.3 IP Property Settings for Wireless Network
Connection
The default IP address of wireless network interface controller is 192.168.1.64. When
you connect the wireless network you can change the default IP.
Steps:

HIKVISION NETWORK CAMERA Specifications

General

Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Lens	Fixed or varifocal (depending on model)
Compression	H.265+, H.265, H.264+, H.264
Audio	Built-in microphone and/or audio input/output (depending on model)
Network	Ethernet (RJ-45)
Power Supply	PoE or DC 12V (depending on model)
Weatherproof	IP66 or IP67 (depending on model)
Image Sensor	CMOS (depending on model)
Smart Features	Motion detection, line crossing detection, intrusion detection
Storage	MicroSD card slot (up to 256GB), NAS
Network Interface	10/100 Mbps Ethernet
