Hisense 50H8C User Manual

4
Connecting Devices to your TV
Y P
B
P
R
COMPONENT IN
L R
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
White(L) White(L)
Red(R) Red(R)
Audio Cable
Component Cable
Component
R
L
P
R
P
B
Y
Red(P
R
/C
R
) Red(P
R
/C
R
)
Blue(P
B
/C
B
) Blue(P
B
/C
B
)
Green(Y) Green(Y)
HDMI
HDMI
EXTERNAL DEVICES
DVD
Set-top Box
HDMI Cable
NOTES
Because the HDMI connector provides video and audio signals, it is not necessary to connect an audio cable.
NOTES
One AV device can be connected to the TV using a component video or composite video cable.
TV JACK
TV JACK

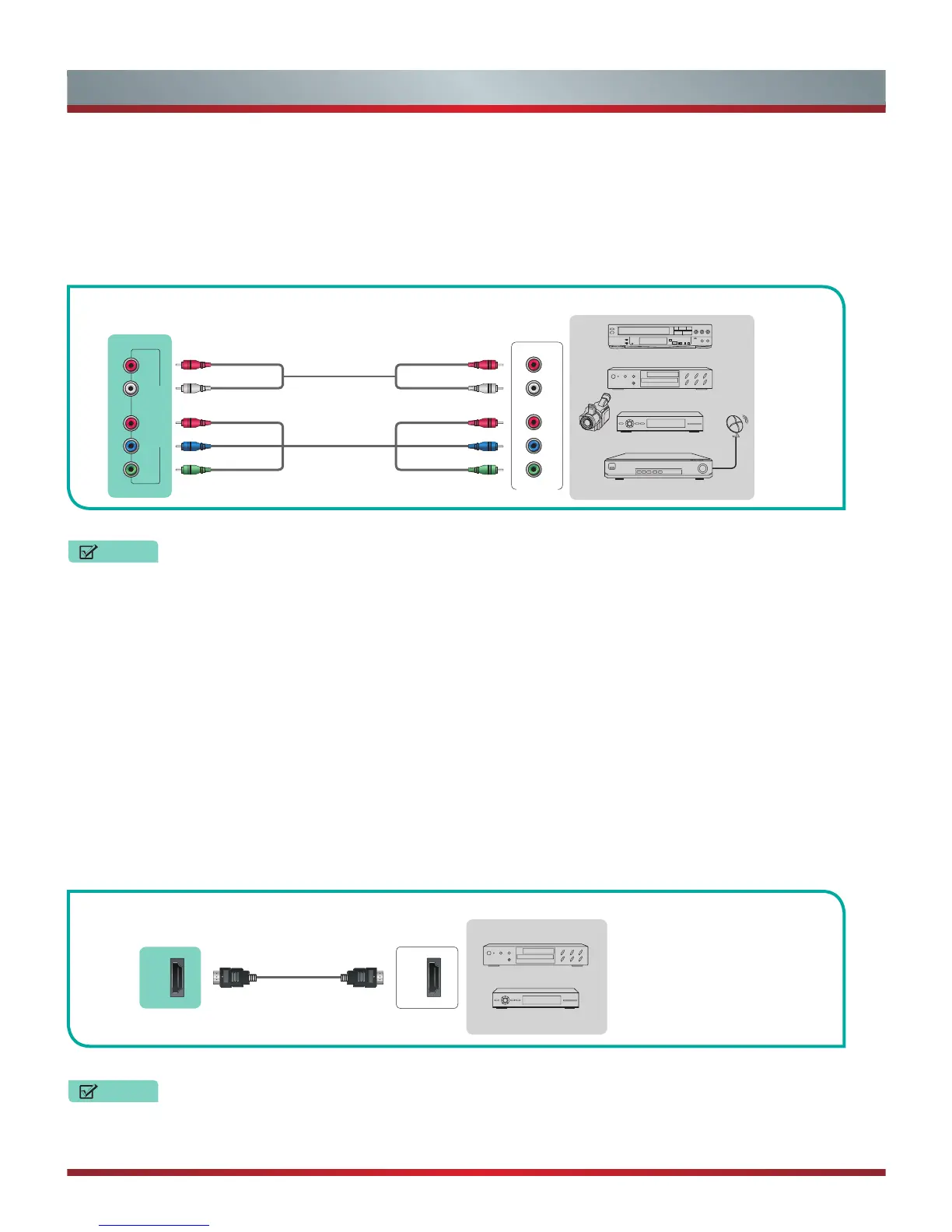

Connecting an AV device with a component video cable (red/blue/green)
To connect an AV device with a component cable (which is red/blue/green):
1. Use a component video cable (not provided) to connect the component output jacks of the external device to the
YP
B
P
R
jacks
for the TV. Use an audio cable to connect the component audio jacks of the external device to the TV AUDIO (L/R) jacks.
2. Plug the connected devices into the YP
B
P
R
and L/R ports on the TV before switching it on.
3. Using your remote, press the [
INPUT
] button and select
Component
as the input source.
Figure 9
. AV device with a component video cable
Connecting an AV device with an HDMI cable
This 4K TV has two different software versions of HDMI ports to connect HDMI-enabled devices. The two high-powered HDMI
version 2.0(HDMI 3, HDMI 4) inputs enable you to connect 4K Ultra-HD external devices that require more bandwidth to transmit to
the TV screen. For example, if you have an X-box or Blu-ray player that supports the 2.0 standard. The two HDMI version 1.4 inputs
are great for any of your external devices that support a standard full high-definition resolution of 1080p.
Please refer to the User Manual that came with your device for step-by-step instructions.
To connect an AV device with an HDMI cable:
1. Use an HDMI cable to connect the
[HDMI]
output port of the AV device to the
[HDMI]
jack of the TV.
2. Plug the connected devices into the power socket.
3. Using your remote, press the
[INPUT]
button and select the corresponding HDMI input.
Figure 10
. AV device with an HDMI cable

Hisense 50H8C Specifications

General

Screen Type	led
Wall Mount	200mm x 200mm
Features	high dynamic range, local dimming, 4k upscaling
Tuner	digital
Screen Size	49.5 inches, 50 inches
Refresh Rate	60hz
Closed Captioning	yes
Motion Enhancement	motion rate 120
HDR	yes
HDR Format	hdr 10
Built-In Speakers	yes
Surround Sound	dolby digital
Speakers Output	20 watts
HDMI ARC Ports	yes
USB Ports	3
USB 2.0 Ports	2
USB 3.0 Ports	1
Ethernet	yes
RF Antenna	yes
Bluetooth	no
Network	built-in wi-fi, ethernet
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
VGA Ports	0
Remote Control	standard
3D	no
Power Consumption	145 kilowatt hours
Depth with Stand	9.7 inches
Height with Stand	27.7 inches
Width with Stand	44.1 inches
Net Weight with Stand	28.2 pounds
Depth without Stand	3.3 inches
Height without Stand	25.6 inches
Net Weight without Stand	27.6 pounds
