5. Connections
5.1 Dolby Atmos®
Dolby Atmos® gives you immersive listening
experience by delivering sound in three
dimensional space, and all the richness, clarity,
and power of Dolby sound. For more information,
please visit dolby.com/technologies/dolby-atmos
5.2 DTS: X
DTS: X, the border sound is no longer constrained
by xed-position speaker placement or specic
channel signals.
For using Dolby Atmos® / DTS: X
Dolby Atmos® / DTS: X is available in HDMI eARC
/ARC mode. For the details of the connection,
please refer to “ HDMI Connection HDMI eARC”.
1. To use Dolby Atmos® / DTS: X mode, Your
TV has to support Dolby Atmos® / DTS: X
or HDMI audio passthrough.
2. Make sure that “Bitstream“, ”RAW“ or ”No
Encoding“ is selected for bitstream in the
audio output of the connected external
device (e.g. Blu-ray DVD player, TV etc.).
3. While
entering Dolby Atmos / DTS: X / Dolby
Digital / PCM format, the soundbar will show
DOLBY ATMOS / DTS: X / DOLBY AUDIO /
PCM AUDIO.
5.3 Use the HDMI eARC Socket
Using HDMI to connect the soundbar, AV
equipment and TV:
eARC / ARC (Audio Return Channel)
The eARC / ARC (Audio Return Channel) function
allows you to send audio from your ARC-
compliant TV to your soundbar through a single
HDMI connection. To enjoy the ARC function,
please ensure your TV is both HDMI-CEC and ARC
compliant and set up accordingly. When correctly
set up, you can use your TV remote control to
adjust the volume output (VOL +/- and MUT
E) of
the soundbar.
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI IN
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN 1 HDMI IN 2
HDMI eARC

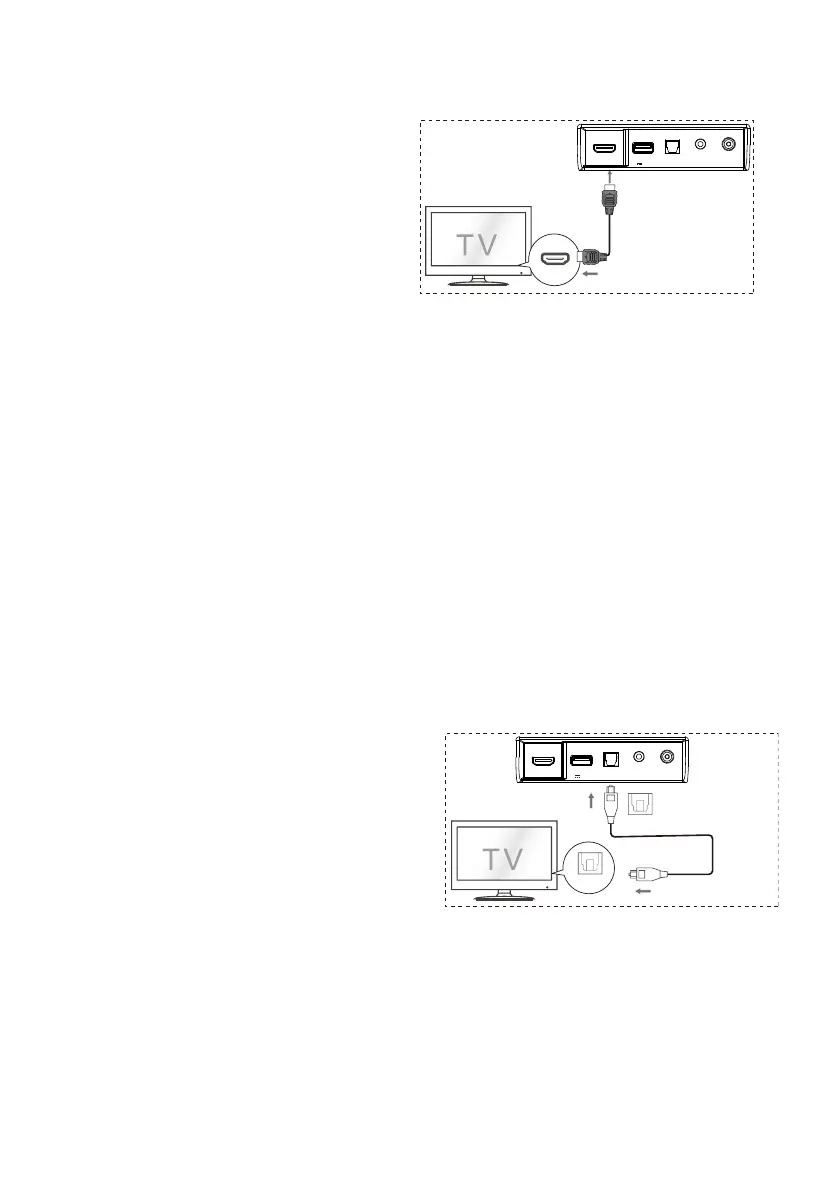

- Connect the HDMI cable from unit's HDMI
eARC socket to the HDMI socket on your ARC
compliant TV. Then press the remote control
to select HDMI eARC.
Tips:
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to
On.
• The setting method of HDMI-CEC and ARC
may dier depending on the TV. For details
about ARC function, please refer to the
owner’s manual.
• ARC only works with devices that are HDMI
ARC capable as well as with an HDMI 1.4
cable (and higher).
HDMI eARC
OPTICAL AUX COAXIAL
USB
5V 500mA
5.4 Use the OPTICAL Socket
- Connect an OPTICAL cable to the TV’s
OPTICAL OUT socket and the OPTICAL
socket on the unit.
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI IN
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN 1 HDMI IN 2
HDMI ARC
HDMI
eARC/ARC
HDMI eARC
OPTICAL AUX COAXIAL
USB
5V 500mA
/ARC
12

Hisense AX3100G Specifications

General

Audio decoders	DTS, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus
RMS rated power	280 W
Audio output channels	3.1 channels
Enhanced Audio Return Channel (eARC)	Yes
Soundbar speaker RMS power	- W
Woofer diameter (imperial)	4 \
Subwoofer connectivity	Wireless
Woofer diameter (subwoofer)	6.5 \
Display type	LED
Product color	Black
Audio formats supported	FLAC, MP3, WAV, WMA
Wi-Fi	No
Bluetooth version	5.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	20 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	15 W
Cables included	AC, HDMI, Optical
Package weight	1016 g

Weight and Dimensions

Depth	90 mm
Width	920 mm
Height	60 mm
Soundbar weight	2540 g
Subwoofer depth	304 mm
Subwoofer width	214 mm
Subwoofer height	294 mm
Subwoofer weight	5170 g
