Hisense AX3100G User Manual

• Subwoofer
Connect the mains cable to the AC IN socket of
the subwoofer and then into a mains socket.
* Power cord quantity and plug vary by regions.
5.6 Use the COAXIAL Socket
• You also can use the COAXIAL cable to connect
the TV's COAXIAL OUT socket and COAXIAL socket
on the unit.
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI IN
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN 1 HDMI IN 2
HDMI ARC
HDMI
eARC/ARC
Tips: The unit may not be able to decode all digital
audio formats from the input source. In this case,
the unit will mute. This is NOT a defect. Ensure
that the audio setting of the input source (e.g. TV,
game console, DVD player, etc.) is set to PCM or
Dolby Digital (Refer to the user manual of the
input source device for its audio setting details)
with HDMI / OPTICAL / COAXIAL input.
5.7 Connect Power
•
Risk of product damage!
Ensure that the power supply voltage
corresponds to the voltage printed on the back
or the underside of the unit.
• Before connecting the AC power cord, ensure
you have completed all other connections.
• Soundbar
Connect the mains cable to the AC IN socket of
the main unit and then into a mains socket.
HDMI eARC
OPTICAL AUX COAXIAL
USB
5V 500mA

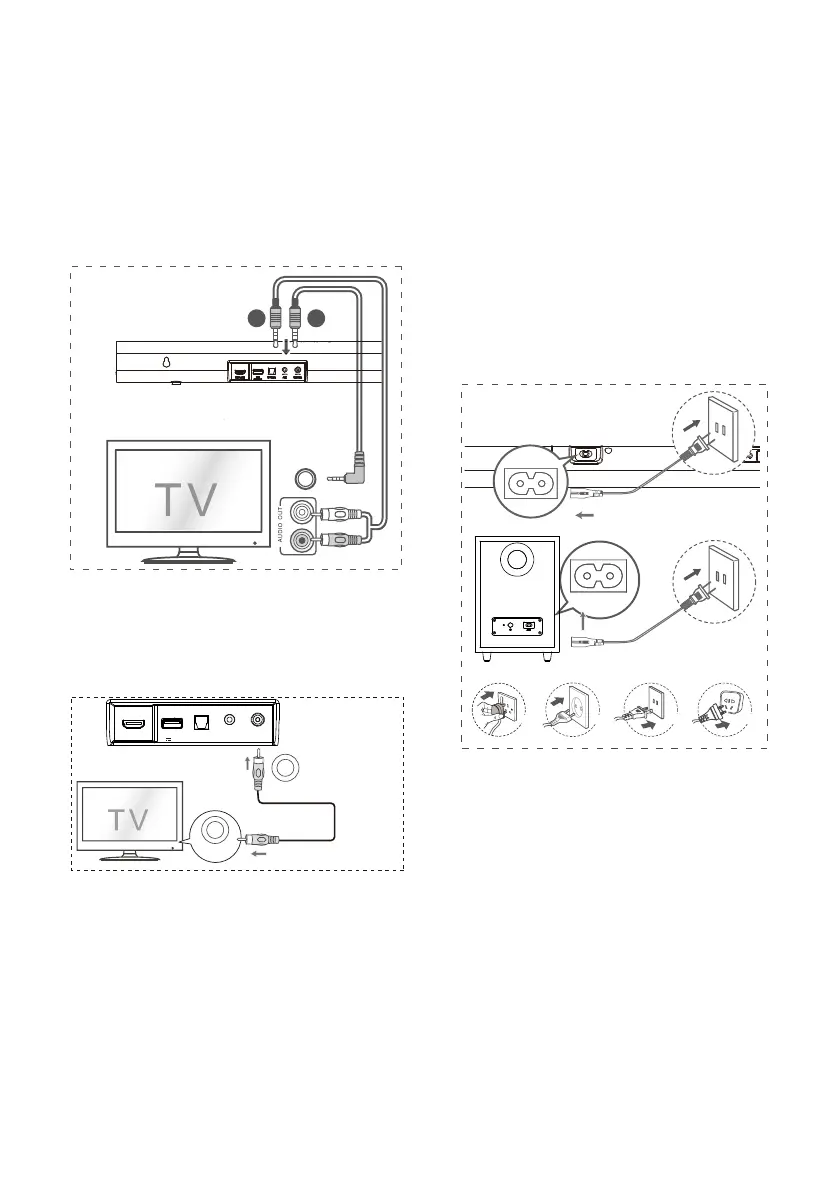

5.5 Connect to AUX Socket
A Use a RCA to 3.5mm audio cable to connect
the TV’s audio output sockets to the AUX
socket on the unit.
B Use a 3.5mm to 3.5mm audio cable to connect
the TV’s or external audio device AUX socket
to the AUX socket on the unit.
BA
AUX
13
For US
For EU
For UK For AUS

Hisense AX3100G Specifications

General

Audio decoders	DTS, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus
RMS rated power	280 W
Audio output channels	3.1 channels
Enhanced Audio Return Channel (eARC)	Yes
Soundbar speaker RMS power	- W
Woofer diameter (imperial)	4 \
Subwoofer connectivity	Wireless
Woofer diameter (subwoofer)	6.5 \
Display type	LED
Product color	Black
Audio formats supported	FLAC, MP3, WAV, WMA
Wi-Fi	No
Bluetooth version	5.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	20 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	15 W
Cables included	AC, HDMI, Optical
Package weight	1016 g

Weight and Dimensions

Depth	90 mm
Width	920 mm
Height	60 mm
Soundbar weight	2540 g
Subwoofer depth	304 mm
Subwoofer width	214 mm
Subwoofer height	294 mm
Subwoofer weight	5170 g
