Hisense HV643D60UK User Manual

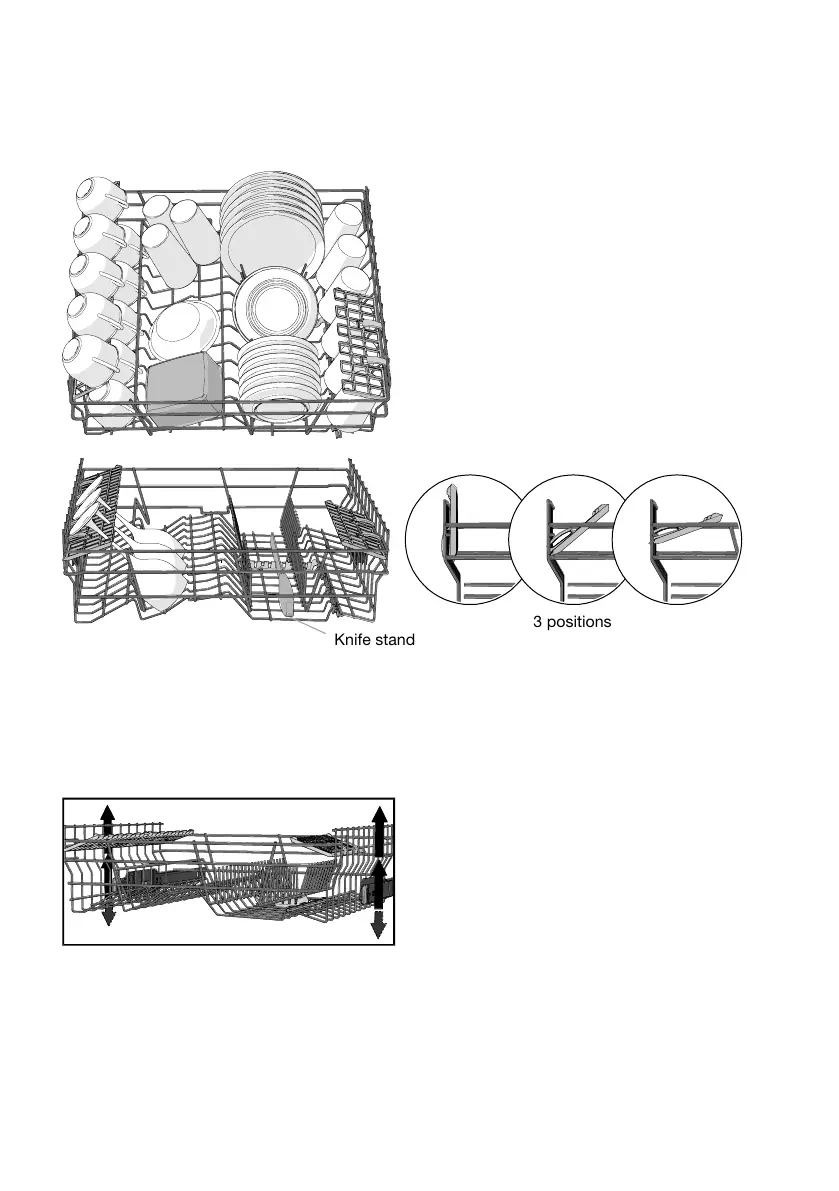

Upper basket
Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face
inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in
the knife stand on the right.
Knife stand
3 positions
Raising and lowering the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and lift it up.
3. If the upper basket is raised while in the top position, it will drop to the bottom position.
Note that both sides of the basket must always be set to the same height.
11

Hisense HV643D60UK Specifications

General

Door color	Black
Water fill	Cold, Hot
Cord length	1.73 m
Control type	Touch
Display type	LED
Product size	Full size (60 cm)
Tub material	Stainless steel
Inlet hose length	1.75 m
Number of baskets	3 basket(s)
Custom panel-ready	Yes
Outlet hose length	1.5 m
Appliance placement	Fully built-in
Door panel included	No
Cutlery compartment type	Drawer
Baskets adjustable placement	Upper
Cycle time	175 min
Noise level	44 dB
Drying system	Residual heat
Delay start (max)	24 h
Dishwashing programs	60min 65°C, Auto 45-65°C, Delicate 40°C, Eco 50°C, Hygiene 70°C, Intensive 70°C
Number of spray zones	5
Number of place settings	16 place settings
Number of washing programs	6
Number of temperature settings	7
Cycle time (quick washing program)	15 min
Country of origin	Slovenia
Package depth	665 mm
Package width	640 mm
Package height	880 mm
Package weight	34500 g
Current	10 A
Connected load	1900 W
Power plug type	Type G
AC input voltage	220-240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (left-on)	0.49 W
Water consumption per cycle	11 L
Energy consumption per cycle	0.85 kWh

Weight and Dimensions

Depth	555 mm
Width	598 mm
Height	816 mm
Weight	32500 g
Installation compartment width	600 mm
Installation compartment height	820 mm
Installation compartment height (max)	900 mm
