Hisense HV643D60UK User Manual

Installation
It is important that you read through and follow the instructions and directions below. Conduct
installation and connection in accordance with the separate installation instructions.

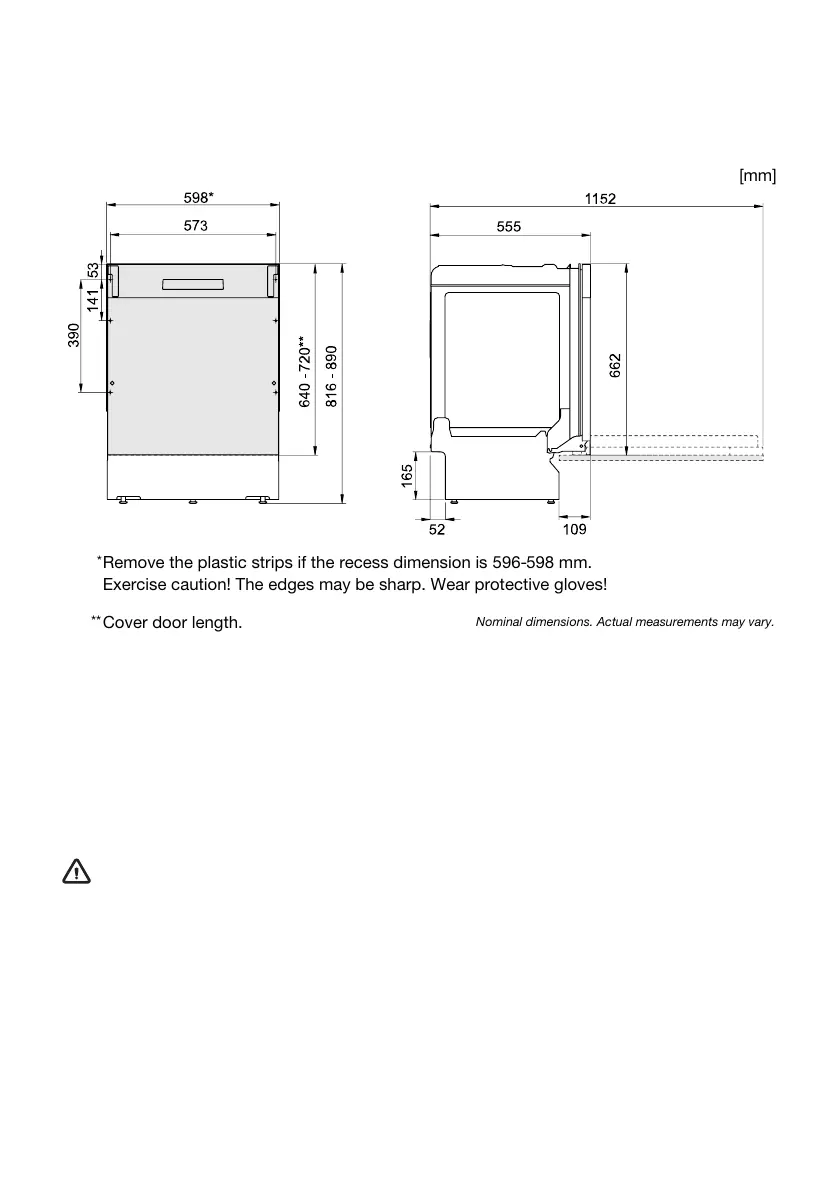

[mm]
Remove the plastic strips if the recess dimension is 596-598 mm.
Exercise caution! The edges may be sharp. Wear protective gloves!
**
Nominal dimensions. Actual measurements may vary.
Cover door length.
*
Safety instructions
• Connections to electricity, water and drainage must be performed by a qualified professional.
• Always follow applicable regulations for water, drainage and electricity.
• Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the 1h 65° program
with the Speed wash option. Check that the dishwasher fills with water and drains. Check also
that none of the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
The plug must be disconnected or power to the socket turned off while the work is carried out!
Setup
• The recess and connection dimensions are included in the separate installation instructions. Check
that all dimensions are correct before starting the installation. Note that the height of the cover
door can be adjusted to match other fittings.
• Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet
so that the dishwasher is level.
29

Hisense HV643D60UK Specifications

General

Door color	Black
Water fill	Cold, Hot
Cord length	1.73 m
Control type	Touch
Display type	LED
Product size	Full size (60 cm)
Tub material	Stainless steel
Inlet hose length	1.75 m
Number of baskets	3 basket(s)
Custom panel-ready	Yes
Outlet hose length	1.5 m
Appliance placement	Fully built-in
Door panel included	No
Cutlery compartment type	Drawer
Baskets adjustable placement	Upper
Cycle time	175 min
Noise level	44 dB
Drying system	Residual heat
Delay start (max)	24 h
Dishwashing programs	60min 65°C, Auto 45-65°C, Delicate 40°C, Eco 50°C, Hygiene 70°C, Intensive 70°C
Number of spray zones	5
Number of place settings	16 place settings
Number of washing programs	6
Number of temperature settings	7
Cycle time (quick washing program)	15 min
Country of origin	Slovenia
Package depth	665 mm
Package width	640 mm
Package height	880 mm
Package weight	34500 g
Current	10 A
Connected load	1900 W
Power plug type	Type G
AC input voltage	220-240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (left-on)	0.49 W
Water consumption per cycle	11 L
Energy consumption per cycle	0.85 kWh

Weight and Dimensions

Depth	555 mm
Width	598 mm
Height	816 mm
Weight	32500 g
Installation compartment width	600 mm
Installation compartment height	820 mm
Installation compartment height (max)	900 mm
