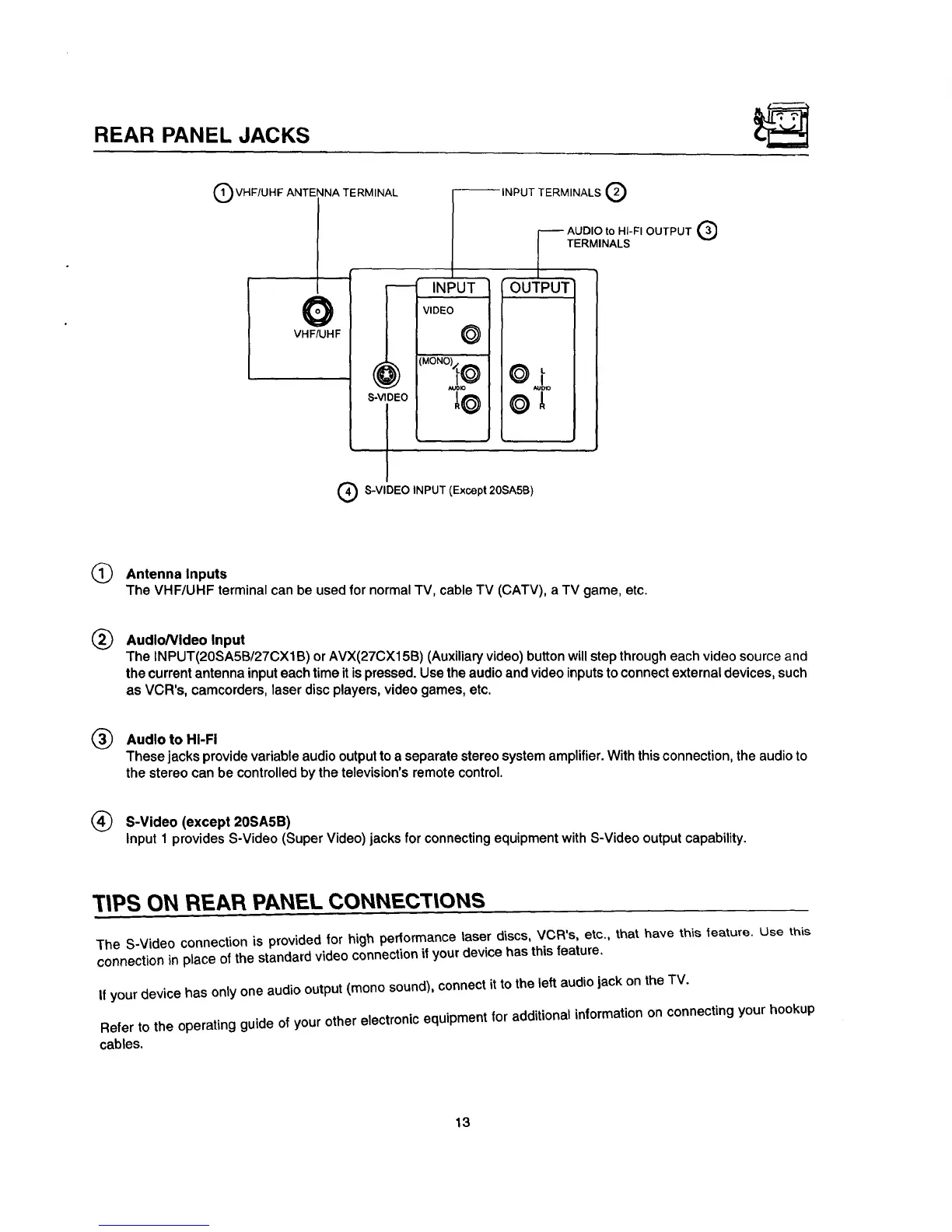

REAR PANEL JACKS
Q VHF/UHF ANTENNA TERMINAL
VHF/UHF
@
S-VIDEO
--INPUT TERMINALS Q
INPUT
VIDEO
©
j----- AUDIO to HI-FI OUTPUT
| TE.M,NA'S®
OUTPUT"
I
(_ S-VIDEO INPUT (Except 20SA5B)
(_ Antenna Inputs
The VHF/UHF terminal can be used for normal TV, cable TV (CATV), a TV game, etc.
® AudloNideo Input
The INPUT(20SA5B/27CXIB) orAVX(27CX15B)(Auxiliaryvideo)button willstepthrougheach video sourceand
thecurrentantennainputeachtimeitis pressed.Usetheaudioandvideoinputsto connectexternaldevices,such
as VCR's, camcorders,laserdiscplayers,videogames,etc.
(_) Audio to HI-Fi
These jacks provide variable audio output to a separate stereo system amplifier. With this connection, the audio to
the stereo can be controlled by the television's remote control.
S-Video (except 20SA5B)
Input1 providesS-Video(SuperVideo)jacksforconnectingequipmentwithS-Videooutputcapability.
T|PS ON REAR PANEL CONNECTtONS
The S-Video connection is provided for high perlormance laser discs, VCR's, etc., that have this teature. Use this
connection in place of the standard video connection if your device has this feature.
If your device has only one audio output (mono sound), connect it to the left audio jack on the TV.
Refer to the operating guide of your other electronic equipment for additional information on connecting your hookup
cables.
