36
AV3000 AVC Unit Service Manual

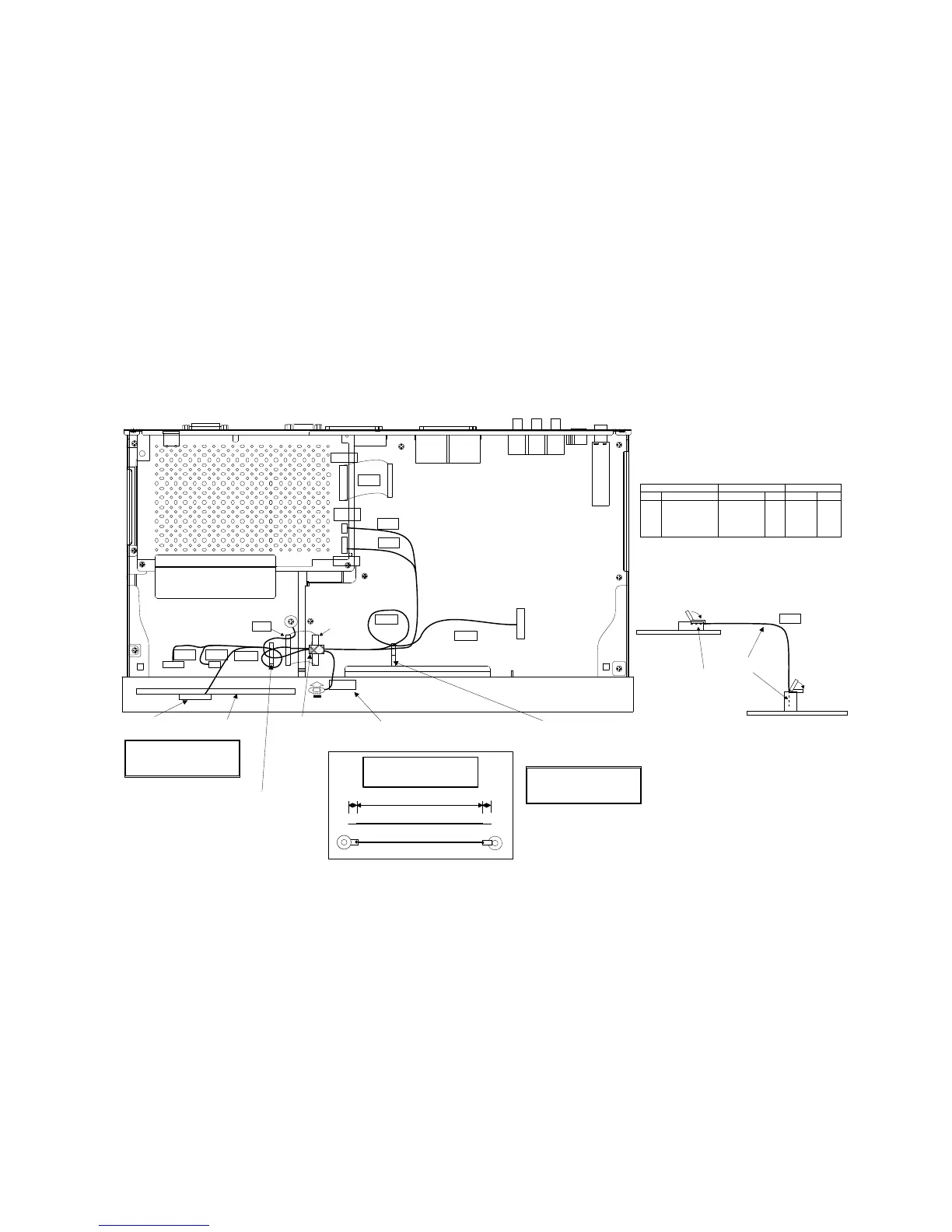

9. UNIT WIRING DIAGRAM
9.1. AVC Unit
ESC
PSP
PSP
ESC
EFP1
EFP2
PFP1
PFP2
POWER Board
PL702
CONTROL Board
PSC
Note:
Before fixing the CONTROL Board,
PSC connector should be inserted
nto the board
EFP1, EFP2, ESC and
EARTH should never
be bunched together
with ZSC (Nittoh
adhesive tape
No. 188
L=50mm)
Lead clamp for EFP1, EFP2 and ESC
should be locked after fixing EFP1
and EFP2 and looped wires
Note:
Make sure the loop is held down
so that it is not pinched by the
top cover
HCP111
ESF
PSF
Printing
side
Insert into the
deepest position
and lock
Specification
1. This Drawing shows the wire dressing and connection of
the AVC3-E Final Assembly.
2. Connectors with wire should be inserted into plug pin
posts as shown on the table below:
Connectors with wire
Plug Pin 1 Plug Pin 2
Name
Assembly list Board
Name
Board
Name
ESC FINAL Assembly CONTROL Brd PSC AV Board PL702
EFP1 FINAL Assembly POWER Board PFP1 HCP111 P002P
EFP2 FINAL Assembly POWER Board PFP2 HCP111 P003P
ESF FINAL Assembly AV Board PSF HCP111 P001
PSP POWER Board AV Board PSP - -
3. For plug pin posts with lock function, connector housings
should be inserted deep enough so that it can be locked.
4. For plug pin posts without lock function, connector housings
should be inserted as deeply as possible.
5. Flexible flat cable ESF should be fixed as shown on the
drawing below:
Terminals of EARTH wire should be fixed with
two screws, one for the POWER Board and the
other for the front key
Lead clamp for EFP1, EFP2,
ESC and EARTH should be locked
after fixing EARTH and looped
EFP1, EFP2 and ESC wires
150
10 10
Preparation:
EARTH wire should be wrapped
& soldered with two 1P-terminals
EARTH
ESC
EFP1
EFP2
P003P
P002P
ESF
PSF
P001P
AV Board
To Next Page
