9
ENGLISH

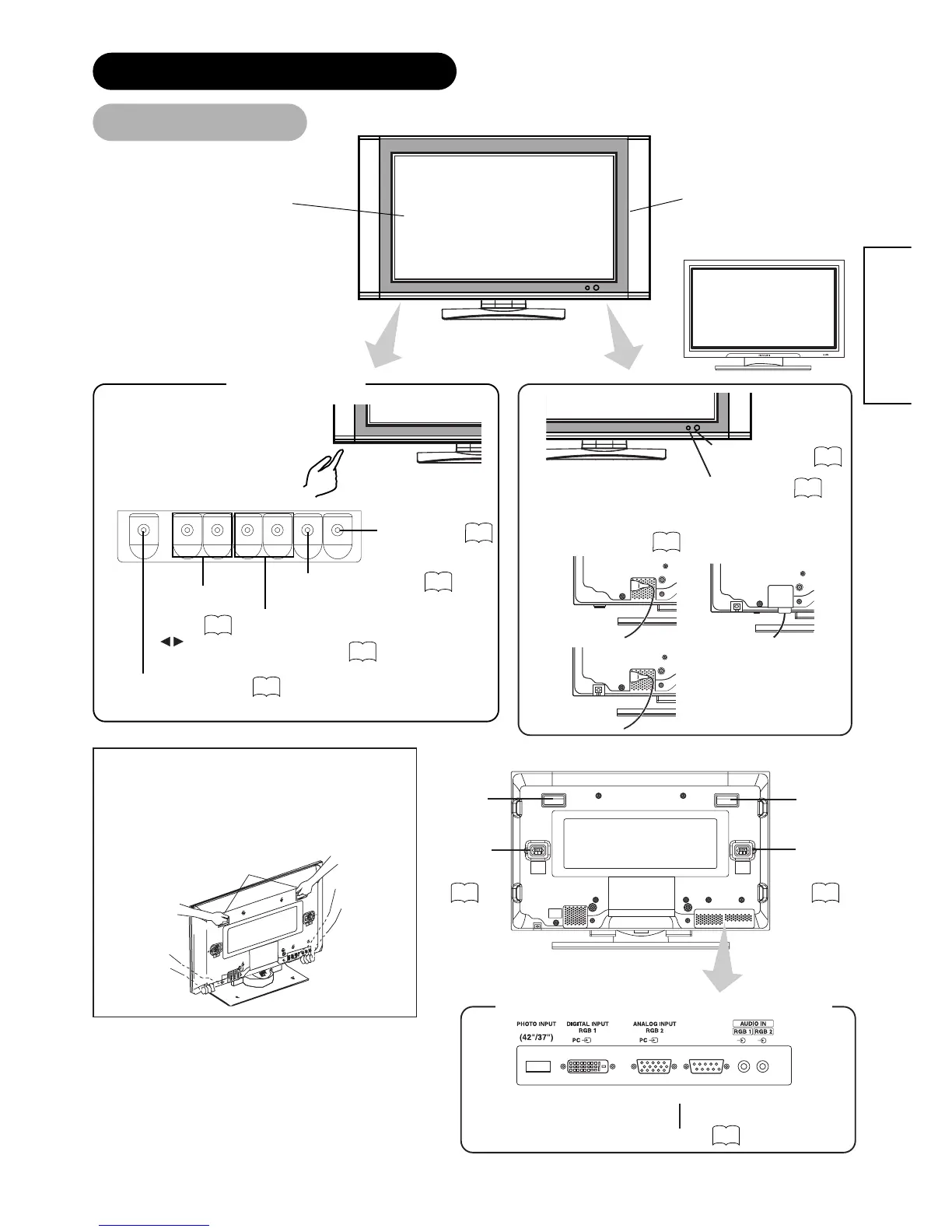

COMPONENT NAMES
Main Unit
Control panel
• Adjustment buttons are located
on the bottom.
• The back cover is provided
with indications to distinguish
the adjustment buttons.
MENU button
SUB-POWER button
VOLUME
UP/DOWN
buttons
( ADJUST
buttons)
INPUT SELECT button
(OK button)
CHANNEL
UP/DOWN buttons
(SELECT button)
• ( ) indicates the function while the MENU is displayed on the screen.
33
22
22
24
21
Remote-control
receiver
14
Indicating lamp
• The main power switch is located at the back, on the
lower surface.
Main power switch
21
21
Caution when moving the main unit
• As this product is heavy, whenever it is moved, two
people are required to transport it safely.
• Whenever the unit is moved it should be lifted forwards
using the two handgrips at the back, and the unit should
then be held at the base on both sides for stability.
Handgrips
Rear
Handgrips
External
speaker
terminals
Handgrips
External
speaker
terminals
16 16
External device connection terminals
RGB input terminals
16
Panel
Cabinet
(front frame)
Front
AV monitor
