--- 14 ---
(4) Stopper for precision cutting (Stopper and holder are optional accessory)
The stopper facilitates continuous precision cutting in lengths of 11" to 17-3/4" (280 mm to 450 mm).
To install the stopper, attach it to the holder with the 6 mm wing bolt as shown in Fig. 17.

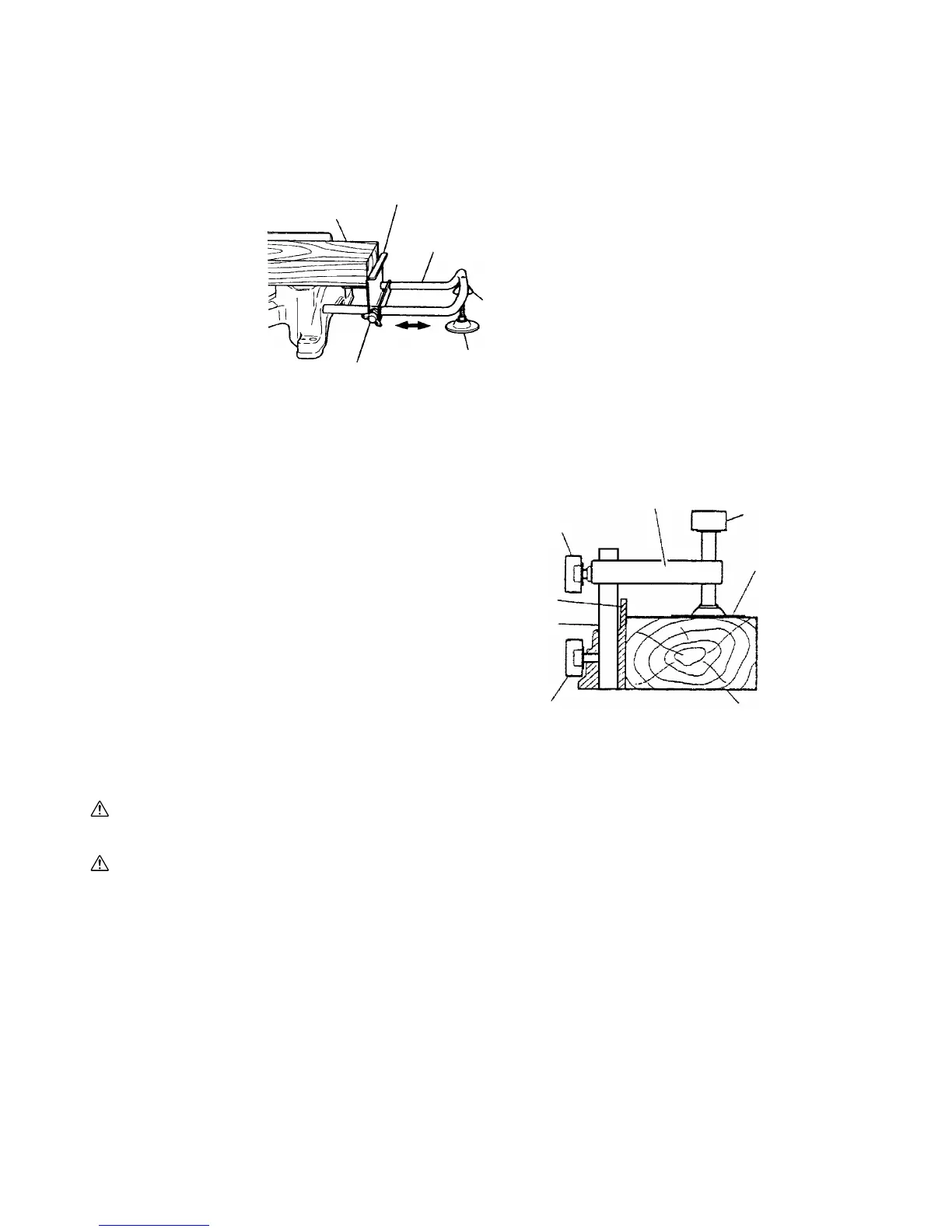

Fig. 17
Workpiece
Stopper
(optional accessory)
Height adjustment bolt 6 mm (optional accessory)
6 mm wing nut (optional accessory)
Holder
(optional accessory)
6 mm wing nut
(optional accessory)
8-3. How to Use the Vise Assembly
(1) The vise assembly can be mounted on either the left
fence (fence (B)) or the right fence (fence (A)) by
loosening 6 mm wing bolt (A).
(2) The screw holder can be raised or lowered according to
the height of the workpiece by loosening 6 mm wing bolt
(B). After the adjustment, firmly tighten 6 mm wing bolt
(B) and fix the screw holder.
(3) Turn the upper knob and securely fix the workpiece in
position (Fig. 18).
Fig. 18
Workpiece
Knob
Vise plate
6 mm wing bolt (B)
6 mm wing bolt (A)
Screw holder
Fence
Vise shaft
WARNING: Always firmly clamp or vise to secure the workpiece to the fence; otherwise the workpiece
might be thrust from the table and cause bodily harm.
CAUTION: Always confirm that the motor head does not contact the vise assembly when it is lowered
for cutting. If there is any danger that it may do so, loosen 6 mm wing bolt (B) and move
the vise assembly to a position where it will not contact the saw blade.
