AV NET
The TV has the AV NET function. This function enables you to control your audio/video equipment such as
VCR, DVD player, Set-Top-Box, etc with the remote control function. You can control your equipment with the
applied remote control unit of the TV after using this function.
The rear panel of the TV has two IR BLASTER output jacks. The TV comes with two IR BLASTER cables.
Each IR BLASTER cable can control two audio/video equipments. Please refer to the following examples when
using the AV NET function.
ǏConnection of the external audio/video equipmentǐ

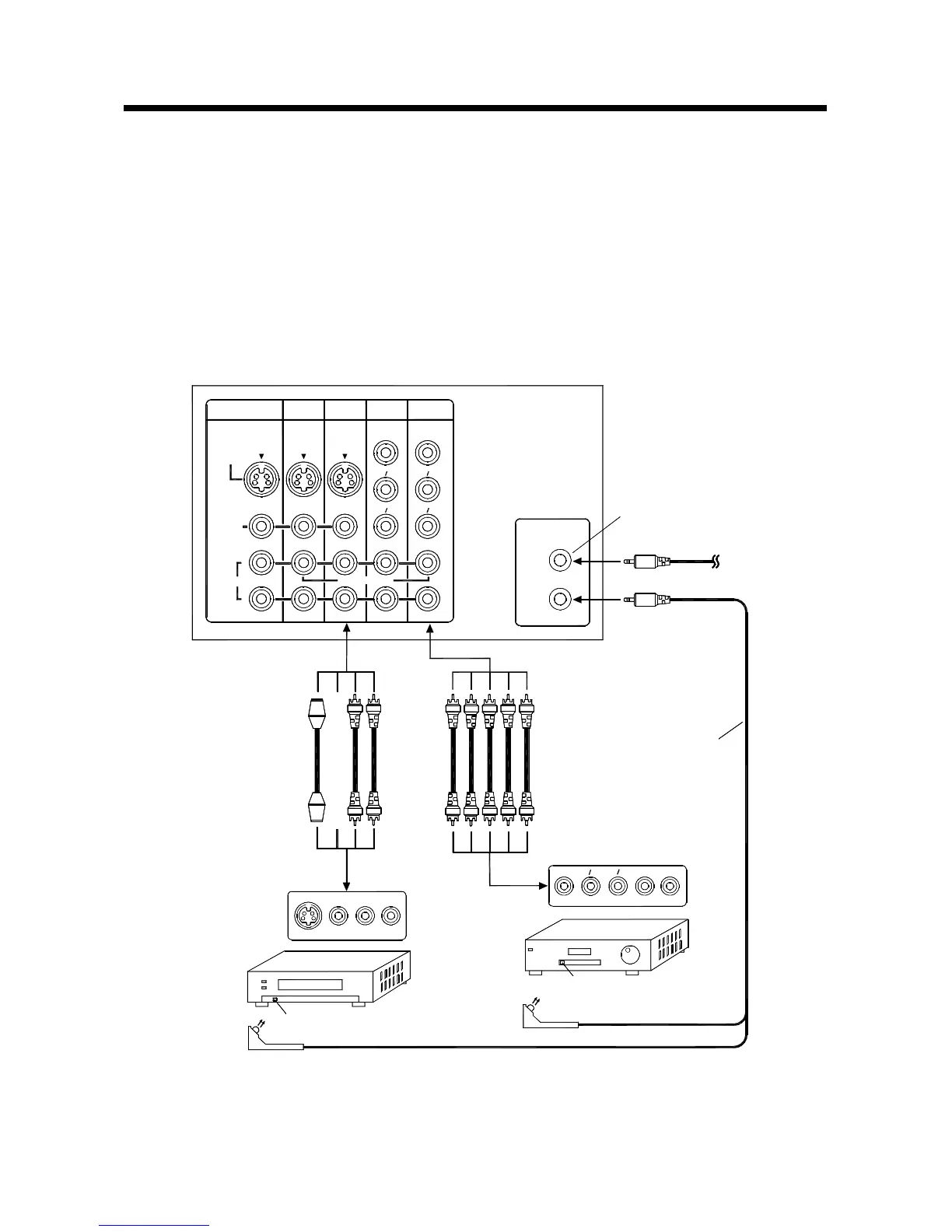

1. Please connect your external audio/video equipment by referring to the following example. (Below shows
INPUT1 is connected to a DVD player, and INPUT3 is connected to a VCR)
2. Please insert the plug of the IR BLASTER cable into the IR BLASTER output jacks on the rear panel of the
TV.
3. Please place the IR mouse near and face to the IR sensor of the DVD player and the VCR. Please refer to the
instructions of the DVD player and the VCR about the IR sensor place.
PB
Y
C
B
PR
CR
R
L
OUTPUT
S-VIDEO
OUTPUT
VIDEO
R
L
'9'᪁ᬒᴎ
ᔩڣᴎⱘ䘹ᬊに
ᔩڣᴎ
'9'᪁ᬒᴎⱘ䘹ᬊに
䘹থᇘ㺙㕂
,5%/$67(5
䘹থᇘ㺙㕂
㑶䘹䕧ߎッᄤ
˄,5%/$67(5˅
䖲㒓
L
R
VIDEO
MONITOR OUT
(MONO)
C
P
RR
C
P
BB
Y/
INPUT 4
INPUT 3
INPUT 1
INPUT 2
S-VIDEO
AUDIO
VARIABLE
FIXED/
VIDEO
C
P
RR
C
P
BB
Y/
VIDEO
TV AS CENTER
BLASTER
IR
(MONO) (MONO) (MONO)
IR BLASTER
output jacks
IR BLASTER
cable
IR sensor of DVD player
VCR
DVD player
IR sensor of VCR player
IR mouse
IR mouse
