CONNECTION WITH OTHER EQUIPMENT
Jacks and connections of side panel
The side panel jacks are provided to allow you to conveniently connect a camcorder, VCR, etc.

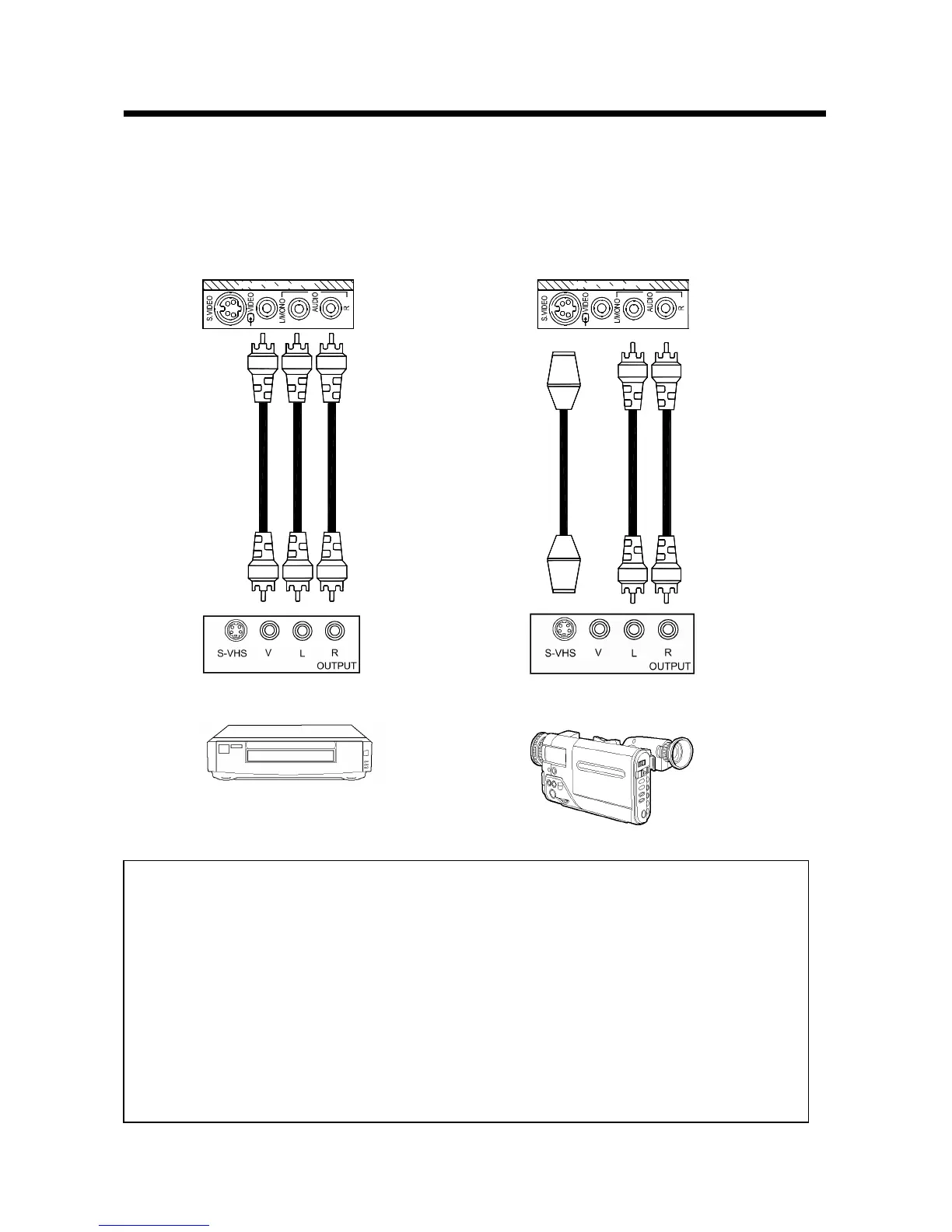

ǏThe typical connection of video camera or VCR, etc.ǐ
Side panel jacks
˄Outputs from VCR, DVD, S-VHS video camera, etc˅
5
N
I
U
P
T
5
N
I
U
P
T
or
Note˖
1.Insert connection cord plugs completely when connecting to side panel jacks, and ensure that the
are properly connected. S.VIDEO and VIDEO input jacks at the side panel cannot be used at the
same time, or else, the playback picture may be abnormal. Thus, before you connect the cable to
S.VIDEO jack, please check that VIDEO jack is not connected, and vice versa.
2.If your equipment has S.VIDEO outputˈplease use S.VIDEO cable instead of the standard video
cable.
3.If your equipment has a mono sound output, please insert the audio cable into the left audio
(L/MONO) jack of your TV.
