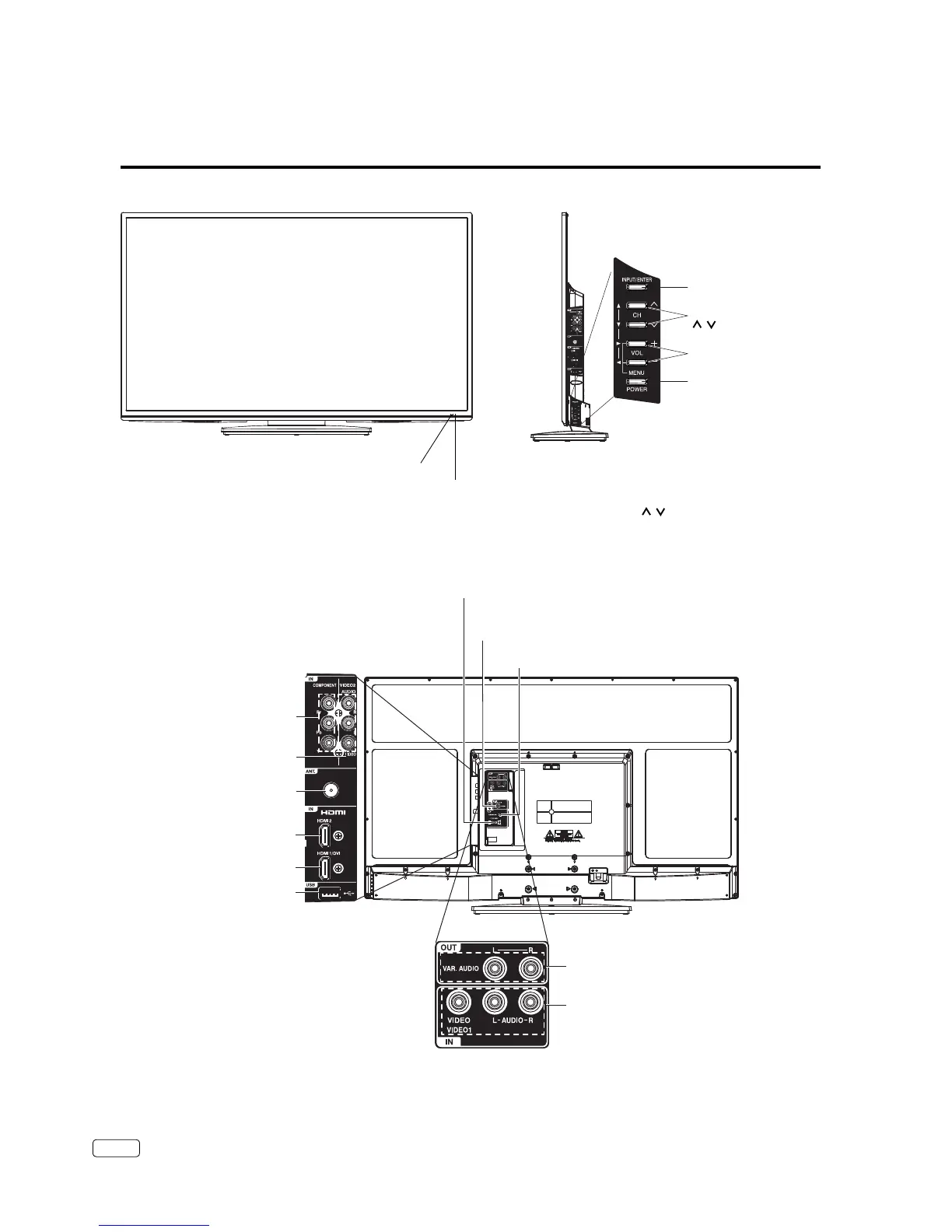

Location of controls
Right sideFront
Remote sensor
POWER button
INPUT/ENTER button
VOL (VOLUME) +/–
//
/ MENU buttons
CH (CHANNEL)
/ // buttons
Rear
To display the menu screen.
Press hold VOL (VOLUME) +/– simultaneously
about 1 second the menu will be appear.
CH (CHANNEL)
/ buttons,
VOL (VOLUME)
+/–
buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
PC/DVI AUDIO IN jack
VIDEO1 IN (VIDEO/AUDIO L/R jacks
COMPONENT IN jacks
HDMI2 IN jack
PC MONITOR IN jack
ANT. RF IN jack
Power Indicator
Red : Standby
Green : On
HDMI1/DVI IN jack
DIGITAL AUDIO
COAXIAL OUT jack
VIDEO2 IN
(VIDEO/AUDIO L/R jacks
VAR.VARIABLE AUDIO L/R OUT jacks
USB INPUT
Right side
Note: This illusration used here based on model LE39S406/LE39H316.
