EN 22
The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features
of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.

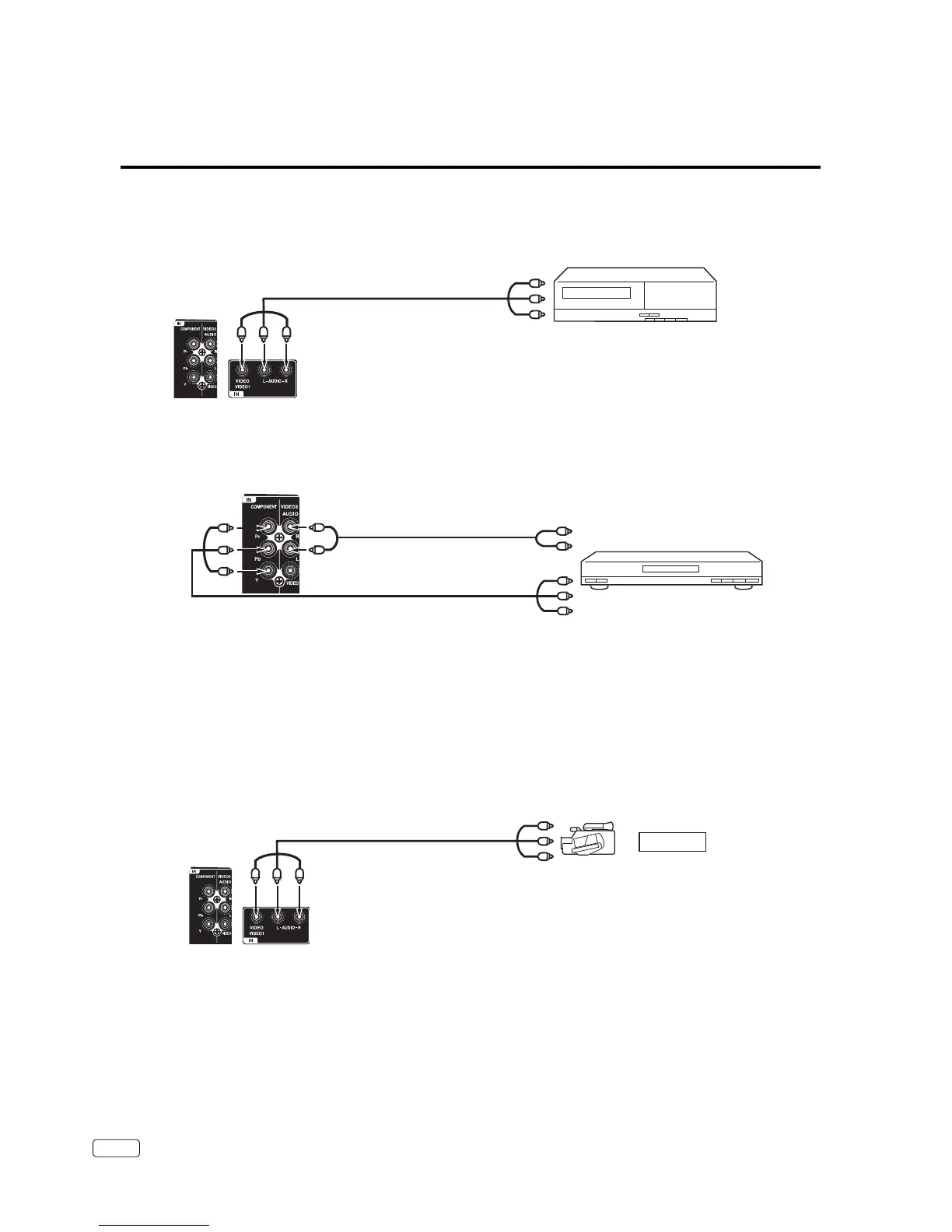

To connect the TV to a VCR
Connections to other equipment
To connect the TV to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the component
video cables (not supplied).
Right and Rear of the unit
Right of the unit
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive
signals.
•
To connect the TV to a camcorder or a game console
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video game consoles. However, due to the wide variety of signals generated by
these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll
need to consult each component’s Owner’s Manual for additional information.
Y
Pb
Pr
Y
Pb
Pr
To Component OUT
Audio cord (not supplied)
Component video cord
(not supplied)
To AUDIO IN
To COMPONENT IN
To Audio OUT
DVD
To Video/Audio OUT
Video/Audio cord (not supplied)
To VIDEO/AUDIO IN
VCR
GAME CONSOLE
or
Video/Audio cord (not supplied)
To VIDEO/AUDIO IN
To Video/Audio OUT
Right and Rear of the unit
J3PC1421A_EN.indd 22 8/24/12 4:50:21 PM
