MAINTENANCE
NOTE
The information contained in this manual is designed to assist you in the safe maintenance
of the Nailer.
Some illustrations in this manual may show details or attachments that diff er from those
on your own Nailer.
MAINTENANCE AND INSPECTION
Read section titled “SAFETY” (pages 4 –
6).
WARNING
Disconnect air hose, remove your ●
fi nger from the trigger and remove
all nails from Nailer when:
1) doing maintenance and
inspection; and
2) clearing a jam.

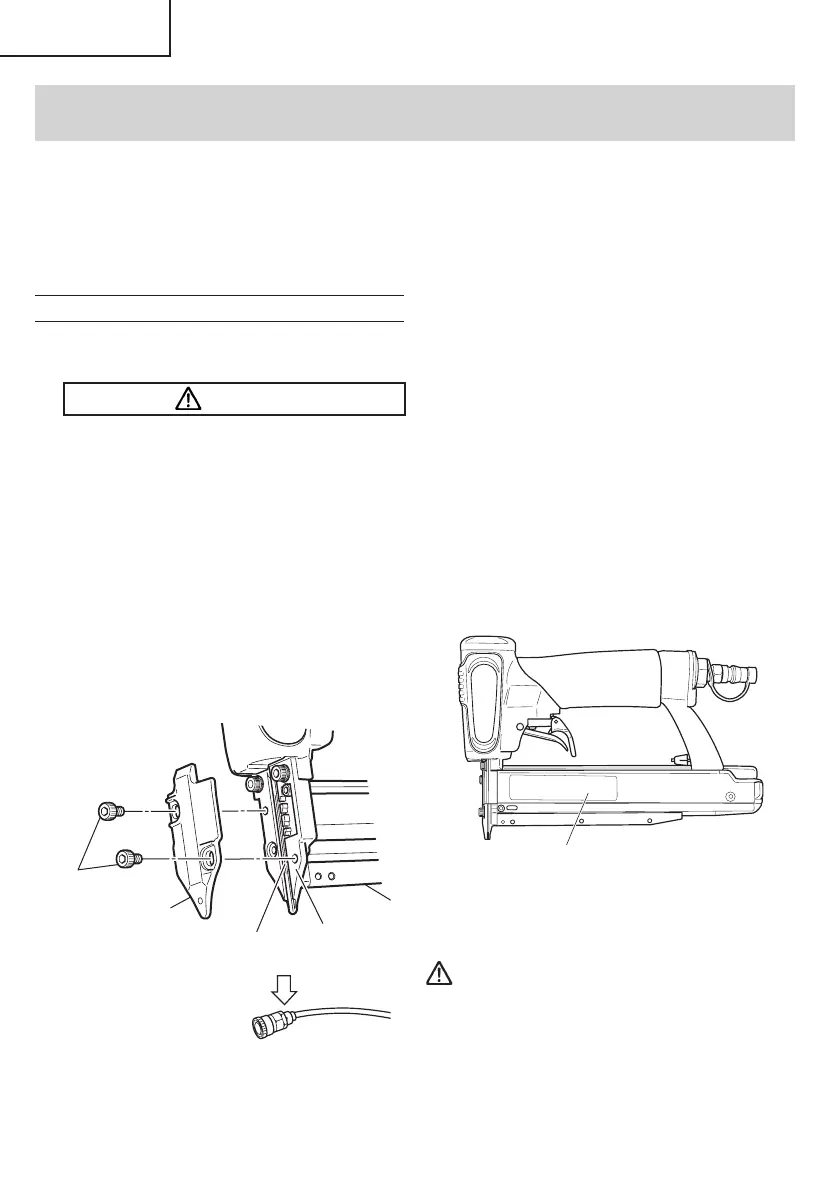

1. Clearing a jam
Remove a jammed nail in the following
order:
1 Disconnect air hose.
2 Remove all nails.
3 Remove the nose with the Allen wrench
stored in the rear of the magazine.
1
Nose
Guide groove
Disconnect
air hose
Blade guide
Maggzine
Hexagonal-
socket bolt
M4×6
4 Remove the jammed nail with a slotted-
head screwdriver.
5 Install the nose.
6 In case of frequent jam, contact a
Hitachi authorized service center.
2. Storing
When not in use for an extended period, ○
apply a thin coat of the lubricant to the steel
parts to avoid rust.
Do not store the Nailer in a cold weather ○
environment.
Keep the Nailer in a warm area.
When not in use, the Nailer should be stored ○
in a warm and dry place.
Keep out of reach children.
3. Warning label
Change the warning label if missing or
damaged.
A new warning label is available from a
Hitachi authorized service center.
Warning label
4. Maintenance chart (page 18)
5. Operator troubleshooting (pages 18 – 19)
6. Service parts list
CAUTION
Repair, modifi cation and inspection of
Hitachi Power Tools must be carried
out by a Hitachi Authorized Service
Center.
This Parts List will be helpful if
presented with the tool to the Hitachi
Authorized Service Center when
requesting repair or other maintenance.
