BEFORE OPERATION
Read section titled “SAFETY” (pages 4 –
6).
Make sure of the followings before operation.
WORKING ENVIRONMENT
WARNING
No fl ammable gas, liquid or other ●
fl ammable objects at worksite.
Clear the area of children or ●
unauthorized personnel.
AIR SUPPLY
DANGER
Never use oxygen ●
or other bottled
gases. Explosion
may occur.
WARNING
Never connect Nailer to pressure ●
which potentially exceeds 200 psi
(13.7 bar 14 kgf/cm
2
).
Never use non relieving coupler on ●
Nailer.
1. Power source
Use only clean, dry, regulated compressed ○
air as a power source for this Nailer.
Air compressors used to supply compressed ○
air to this Nailer must comply with the
requirements of the latest version of ANSI
Standard B 19.3 “Safety Standard For
Compressors For Process Industries”.
Moisture or oil in the air compressor may ○
accelerate wear and corrosion in the
Nailer.
Drain daily.

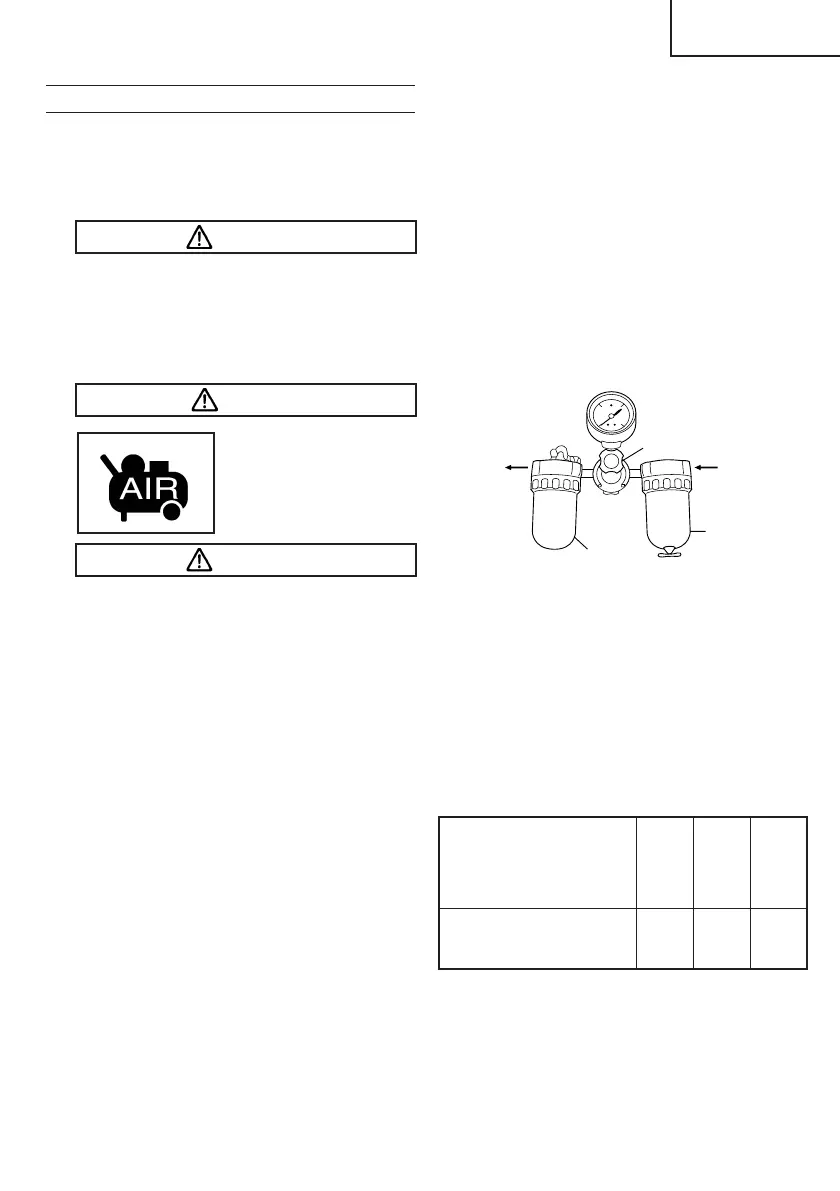

2. Filter-Regulator-Lubricator
Use a regulator with a pressure range of 0 – ○
100 psi (0 – 6.9 bar 0 – 7 kgf/cm
2
).
Filter-regulator-lubricator units supply an ○
optimum condition for the Nailer and extend
the Nailer life.
These units should always be used.
Filter
The fi lter removes moisture and dirt mixed
in compressed air.
Drain daily unless fi tted with an automatic
drain.
Keep the fi lter clean by regular
maintenance.
Regulator
The regulator controls the operating
pressure for safe operation of the Nailer.
Inspect the regulator before operation to
be sure it operates properly.
Lubricator
The lubricator supplies an oil mist to the
Nailer.
Inspect the lubricator before operation to be
sure the supply of lubricant is adequate.
Use Hitachi pneumatic tool lubricant.
Nailer Side
Filter
Lubricator
Compressor
Side
Regulator
3. Air hose
Air hose must have a minimum working
pressure rating of 150 psi (10.4 bar 10.6
kgf/cm
2
) or 150% of the maximum pressure
produced in the system, whichever is
higher.
4. Air consumption
Using the Air consumption table and the
Air compressor size formula, fi nd a correct
compressor size.
Air consumption table
Operating
pressure
psi 80 90 100
(bar) (5.5) (6.2) (6.9)
(kgf/cm
2
)(5.6)(6.3) (7)
Air
consumption
ft
3
/cycle .011 .015 .018
(ltr/cycle) (.3) (.4) (.5)
Air compressor size formula
Amount of air required
= number of Nailers
× average nails driven each minute per
Nailer
× air consumption at given air pressure
× safety factor (always 1.2)
