Hitachi RB 40SA - Tightening Torque Specifications; Wiring Diagrams

--- 8 ---
7-3. Tightening Torque
(1) Tapping Screw D4 [9] [25] 2.0 0.5 N
•
m (20 5 kgf
•
cm)
(2) Tapping Screw D5 [10] 2.9 0.5 N
•
m (30 5 kgf
•
cm)
(3) U-Nut M6 [6] 2.9 0.5 N
•
m (30 5 kgf
•
cm)

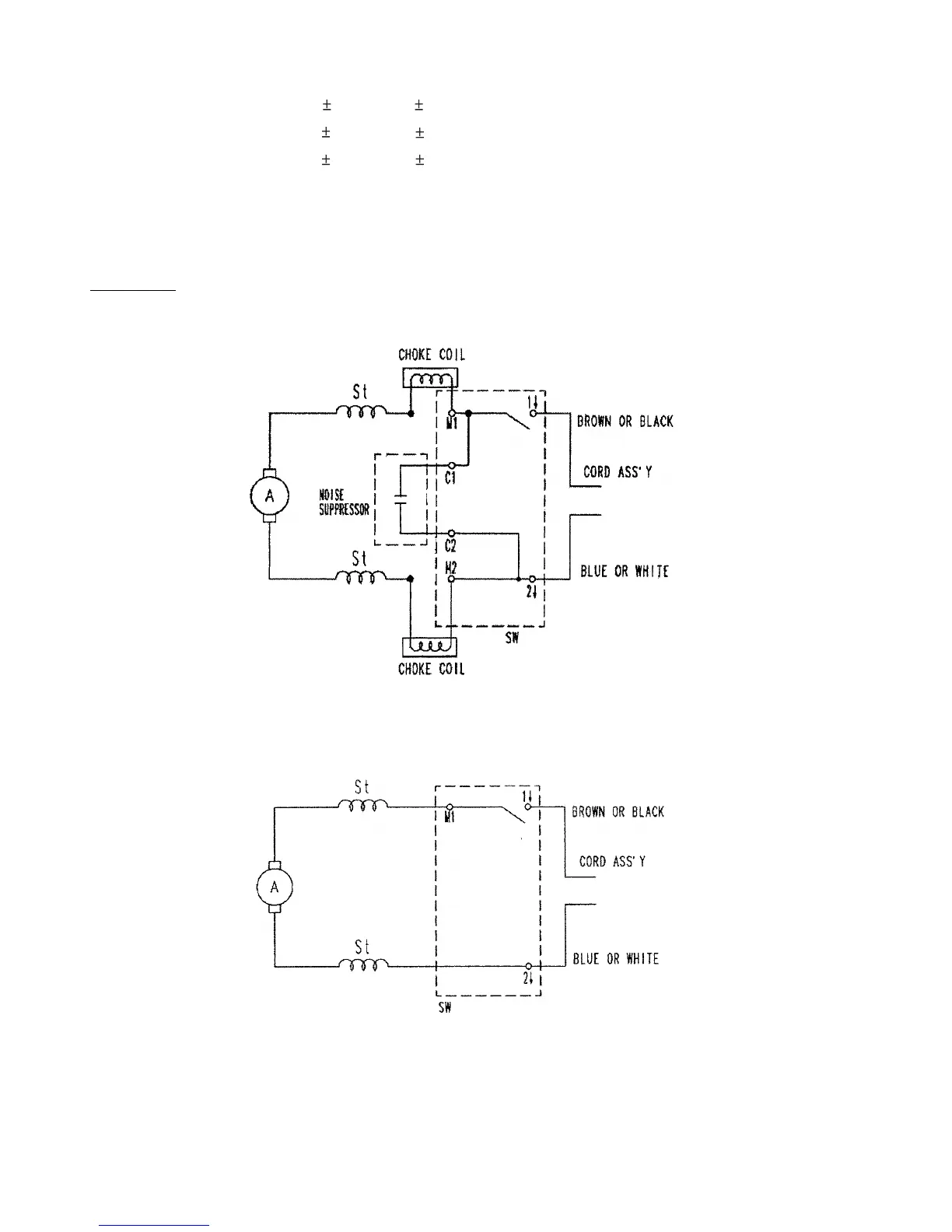

7-4. Wiring Diagram
(1) RB 40SA
(a) Products with noise suppressor and choke coil:
(b) Products without noise suppressor and choke coil:
