Hitachi RB 40SA User Manual

--- 9 ---

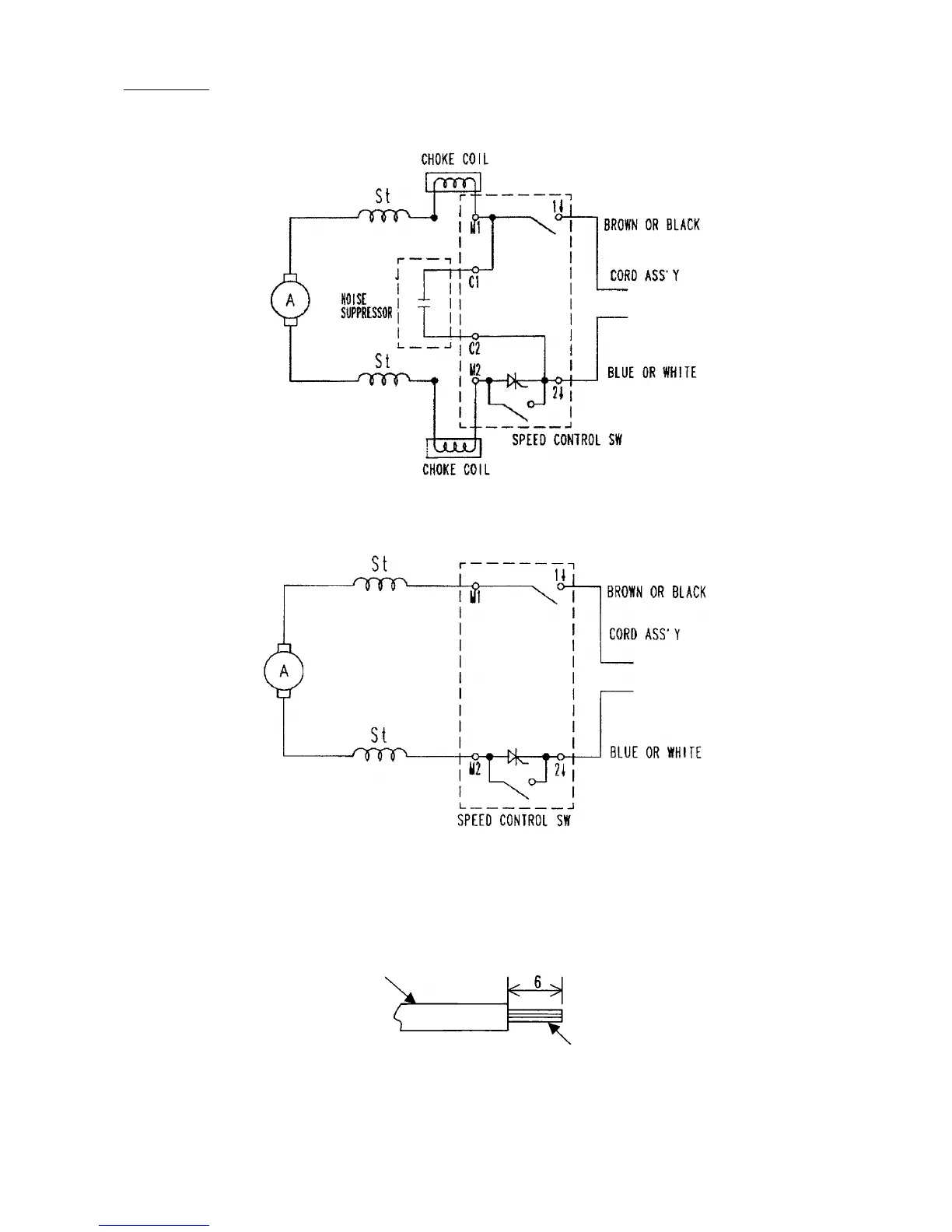

(2) RB 40VA
(a) Products with noise suppressor and choke coil:
(b) Products without noise suppressor and choke coil:
7-5. Connection to the Switch
Solder the tips of the internal wires of the Stator Ass'y [18], Noise Suppressor [30] and Choke Coil [31].
Then insert them into the terminals of the Switch (1P Pillar Type) [24].
Solder
Internal wire
