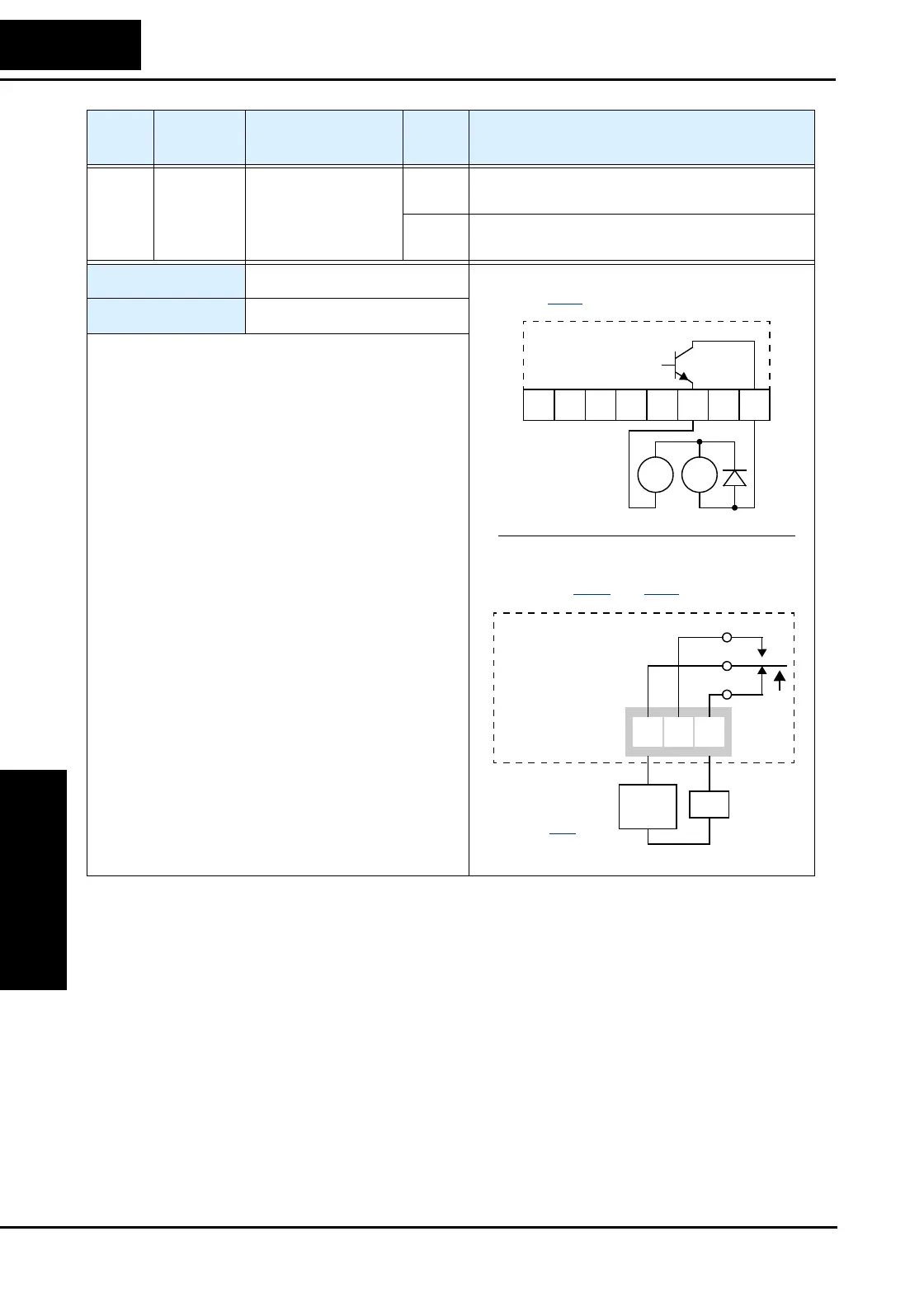

Using Intelligent Output Terminals
Operations
and Monitoring
4–50
Option
Code
Terminal
Symbol
Function Name
Output
State
Description
09 LOG Logic Output
Function
ON when the Boolean operation specified by C143
has a logical “1” result
OFF when the Boolean operation specified by C143
has a logical “0” result
Valid for outputs:
11, 12, AL0 – AL2
Required settings:
C141, C142, C143
Notes:
RY
+
12 11LH O
OI FM
CM2
Example (requires output configuration—
see page 3–46
):
Inverter output
terminal circuit
LOG
Example for terminals [AL0], [AL1], [AL2]
(requires output configuration—
see pages
4–35 and 3–46):
AL0 AL2AL1
Inverter logic
circuit board
See I/O specs
on page 4–6
.
LOG
Load
Power
supply
