Hitachi SJ200 Series User Manual

“A” Group: Standard Functions
Configuring
Drive Parameters
3–26

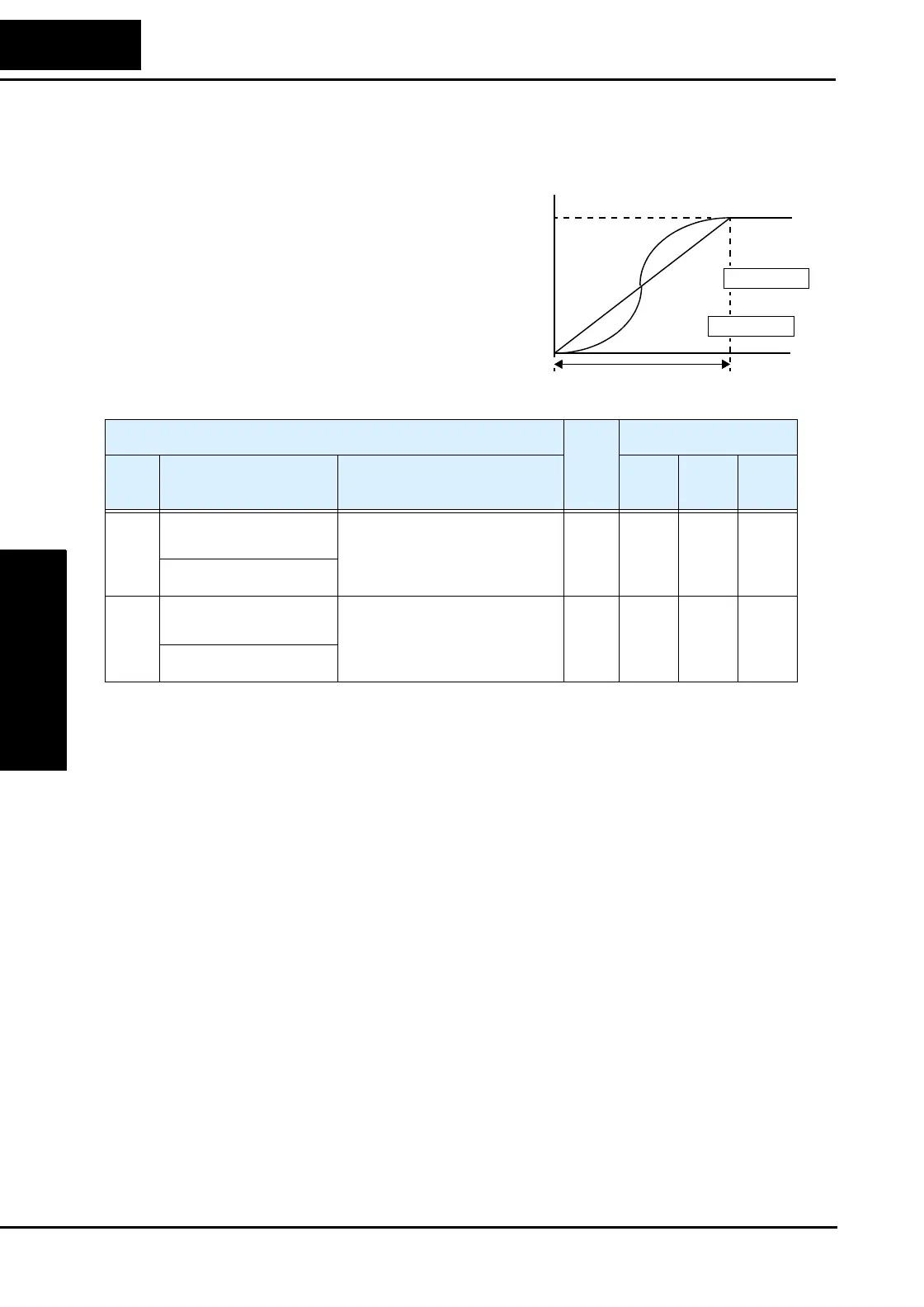

Accel/Decel
Standard acceleration and deceleration is
linear. The inverter CPU can also calculate
an S-curve acceleration or deceleration
curve as shown. This profile is useful for
favoring the load characteristics in particu-
lar applications.
Curve settings for acceleration and decel-
eration are independently selected. To
enable the S-curve, use function A097
(acceleration) and A098 (deceleration).
Acceleration period
S-curve
Linear
Accel. curve selection
Target
freq.
Output
frequency
t
0
A097
=
00
A097
=
01
“A” Function
Run
Mode
Edit
Defaults
Func.
Code
Name /
SRW Display
Description
–FEF
(EU)
–FU
(USA)
Units
A097 Acceleration curve
selection
Set the characteristic curve of
Acc1 and Acc2, two options:
00...linear
01...S-curve
✘ 00 00 —
ACC LINE L
A098 Deceleration curve
selection
Set the characteristic curve of
Acc1 and Acc2, two options:
00...linear
01...S-curve
✘ 00 00 —
DEC LINE L

Hitachi SJ200 Series Specifications

General

Series	SJ200
Category	Inverter
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Cooling Method	Fan cooled
Humidity	5 to 95% RH (non-condensing)
Control Method	V/f Control, Sensorless Vector Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Ambient Temperature	-10 to 50°C
Braking Unit	Built-in
Communication	RS-485 (Modbus RTU)
Altitude	Up to 1000m
Output Voltage	3-Phase 200-240 VAC, 3-Phase 380-480 VAC
Storage Temperature	-20 to +60°C (-4 to 140°F)
