OPERATOR'S STATION
1-65

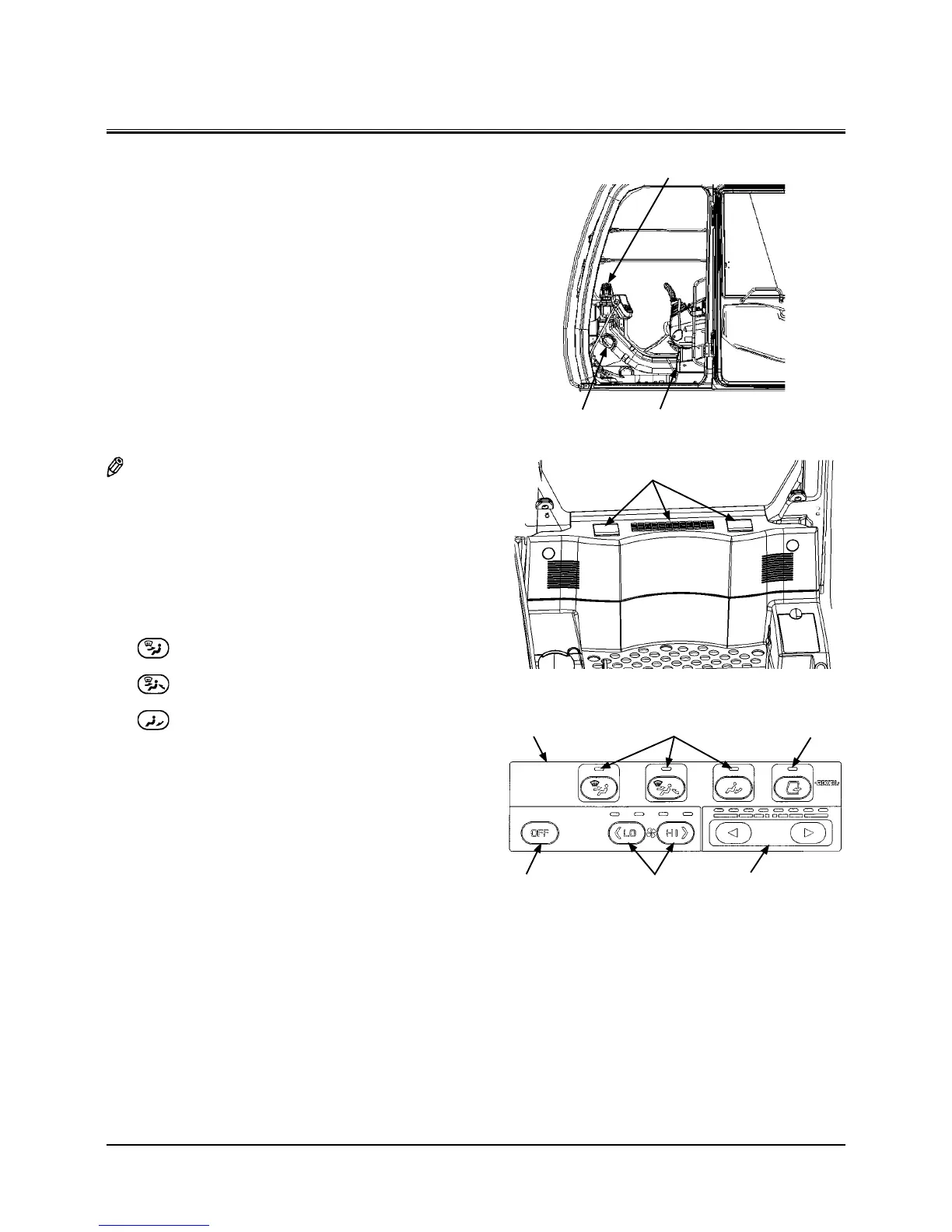

CAB HEATER (Optional)
Part Name and Location
1- Front Vent
2- Foot Vent
3- Defroster Vent
4- Rear Vents
5- Control Panel
6- Mode Switch
7- Fresh Air Vent Switch
8- Temperature Control Switch
9- Blower Switch
10- OFF Switch
NOTE: Air flow direction can be changed by controlling the
louvers at all air vents except for foot vent (2). The lou-
vers at front (1) and defroster (3) vents can be manually
opened or closed.
Control Panel Designation and Function
• Mode Switch (6)
Selects the air vent.
Air flows out of front vent (1) and defroster vent (3).
Air flows out of front (1), rear (4) vents and the
defroster vent (3).
Air flows out of foot vent (2).
• Temperature Control Switch (8)
One of 8 indicators is lit. The air flow temperature at the
vent is lower or higher as the indicator closer to the left or
right end is lit respectively. Both warmed and cooled air
flow out of the same air vent.
3
1
2
4
M1U1-01-025
M1U1-01-027
M178-01-072
5 6 7
8910
To Next Page
