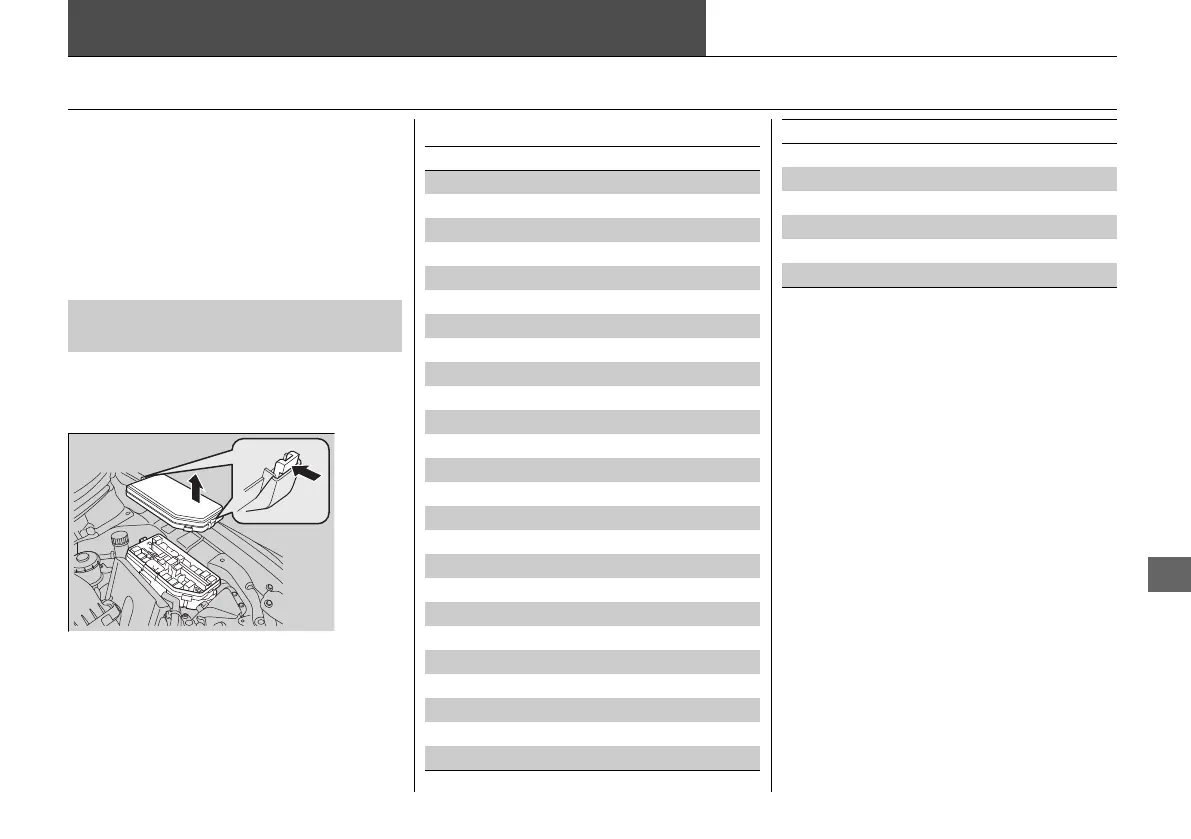

Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK (0 and
check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located on the passenger’s side, near the
windshield washer reservoir. Push the tabs
to open the box.
■
Engine Compartment Fuse Box
(Primary)
■ Circuit protected and fuse rating
Circuit Protected Amps
1 − −
2− −
3 ACG FR 15 A
4Washer 15 A
5 VB SOL 7.5 A
6 ECU FR 7.5 A
7 − −
8FI Sub 15A
9 DBW 15 A
10 FI Main 15 A
11 Ignition Coil 15 A
12 − −
13 FI ECU 7.5 A
14 − −
15 Radio 20 A
16 Back Up 10 A
17 MG Clutch 7.5 A
18 Front Fog Lights
*
20 A
19 − −
20 Right Headlight High Beam 10 A
21 − −
22 Small Lights 10 A
23 − −
24 Left Headlight High Beam 10 A
25 − −
26 Right Headlight Low Beam 15 A
27 Left Headlight Low Beam 15 A
28 IGPS Oil Level 7.5 A
29 Cooling Fan 30 A
30 Sub Fan 30 A
31 Wiper Main 30 A
Circuit Protected Amps
* Not available on all models
