Honda BF5A User Manual

12

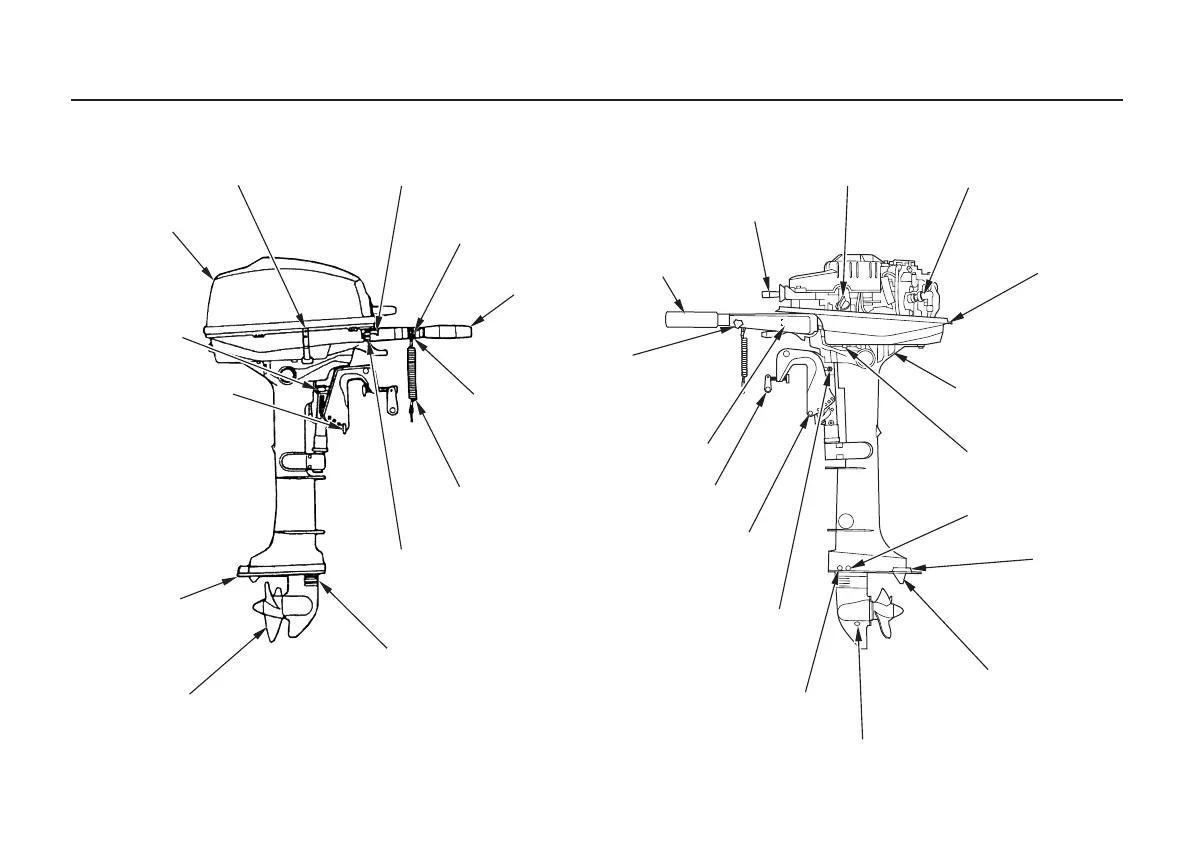

COMPONENT AND CONTROL LOCATIONS
CONTROLS AND FEATURES
ANODE
SPARK PLUG
THROTTLE GRIP
CHOKE KNOB
FUEL HOSE
CONNECTOR
(MALE)
TRANSOM ANGLE
ADJUSTING ROD
PROPELLER
GEARSHIFT LEVER
THROTTLE
FRICTION KNOB
COOLING SYSTEM
INDICATOR
WATER INTAKE PORT
(each side)
OIL PRESSURE
INDICATOR
WASH SCREW
(FLUSH SCREW)
STEERING
FRICTION BOLT
EMERGENCY
STOP SWITCH
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
ENGINE COVER
LOCK LEVER
OIL FILLER CAP/DIPSTICK
STARTER GRIP
ENGINE OIL
DRAIN BOLT
EXHAUST PORT
GEAR OIL DRAIN/FILL SCREW
GEAR OIL
LEVEL SCREW
STERN BRACKET
CLAMP SCREW
TILLER
HANDLE
ENGINE COVER
TILT LEVER
ANTIVENTILATION
PLATE
11/03/07 16:27:50 31ZV1660_013

Honda BF5A Specifications

General

Bore x Stroke	60 mm x 45 mm
HP Rating	5 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Starting System	Manual
Gear Ratio	2.08:1
Dry Weight	27 kg
Lubrication	Wet sump
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Ignition System	CDI
Exhaust	Above Propeller
Fuel Tank Capacity	1.5 L (0.40 US gal)
Shaft Length	Short (381 mm)
Gear Shift	Forward, Neutral
Trim Positions	4
