Propeller and Shear Pin
Replacement
SERVICING YOUR OUTBOARD MOTOR

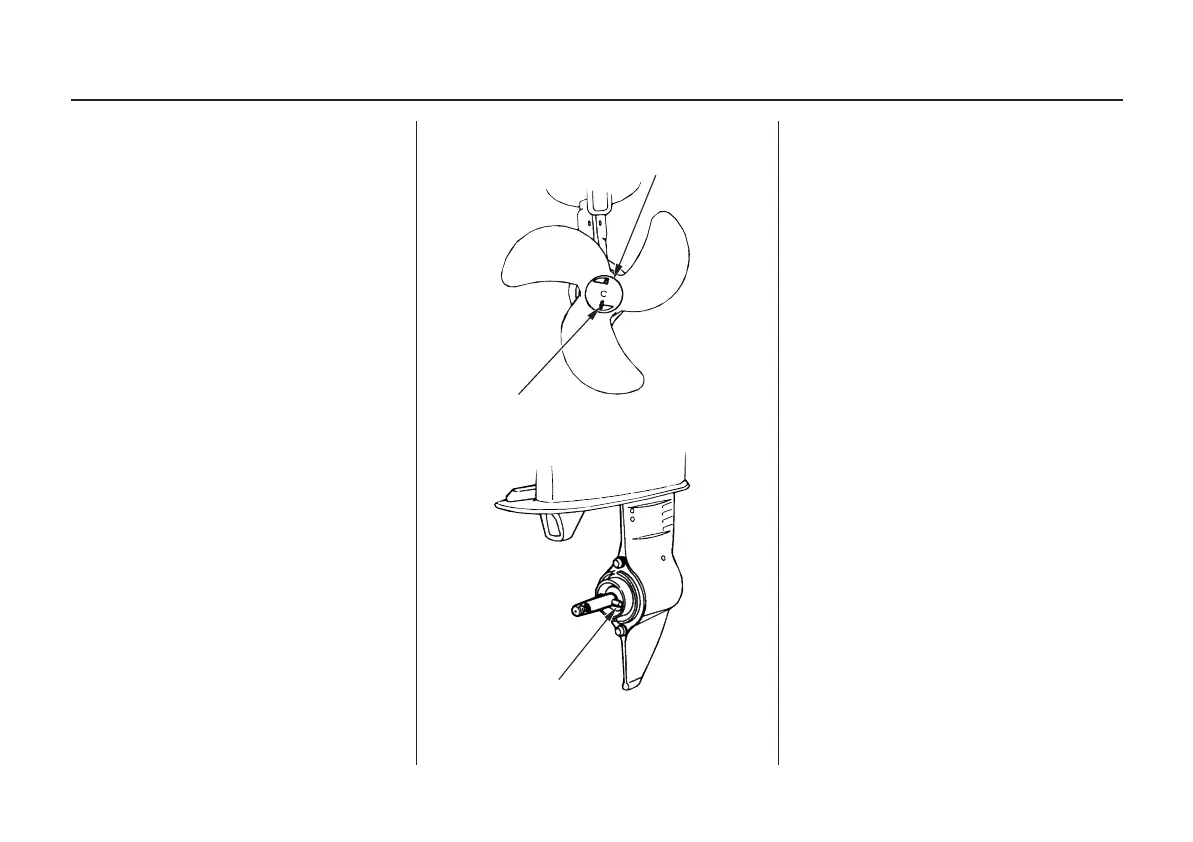

PROPELLER CAP
SHEAR PIN
COTTER PIN
Removal
Remove the cotter pin, the
propeller cap, and the propeller.
Remove the broken shear pin and
replace it with a new one.
Operating the outboard motor at
higher altitudes will reduce available
power. This may require decreasing
the propeller pitch to maintain correct
engine RPM.
The propeller blades may have sharp
edges, so wear heavy gloves to
protect your hands.
Ashearpinisusedtoprotectthe
propeller and drive mechanism from
damage when the propeller strikes an
obstruction.
Before replacing the propeller or the
shear pin, remove the emergency
stop switch clip from the emergency
stop switch to prevent any possibility
of the engine being started while you
are working with the propeller.
1.
2.
11/03/07 16:37:14 31ZV1660_058

Honda BF5A Specifications

General

Bore x Stroke	60 mm x 45 mm
HP Rating	5 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Starting System	Manual
Gear Ratio	2.08:1
Dry Weight	27 kg
Lubrication	Wet sump
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Ignition System	CDI
Exhaust	Above Propeller
Fuel Tank Capacity	1.5 L (0.40 US gal)
Shaft Length	Short (381 mm)
Gear Shift	Forward, Neutral
Trim Positions	4
