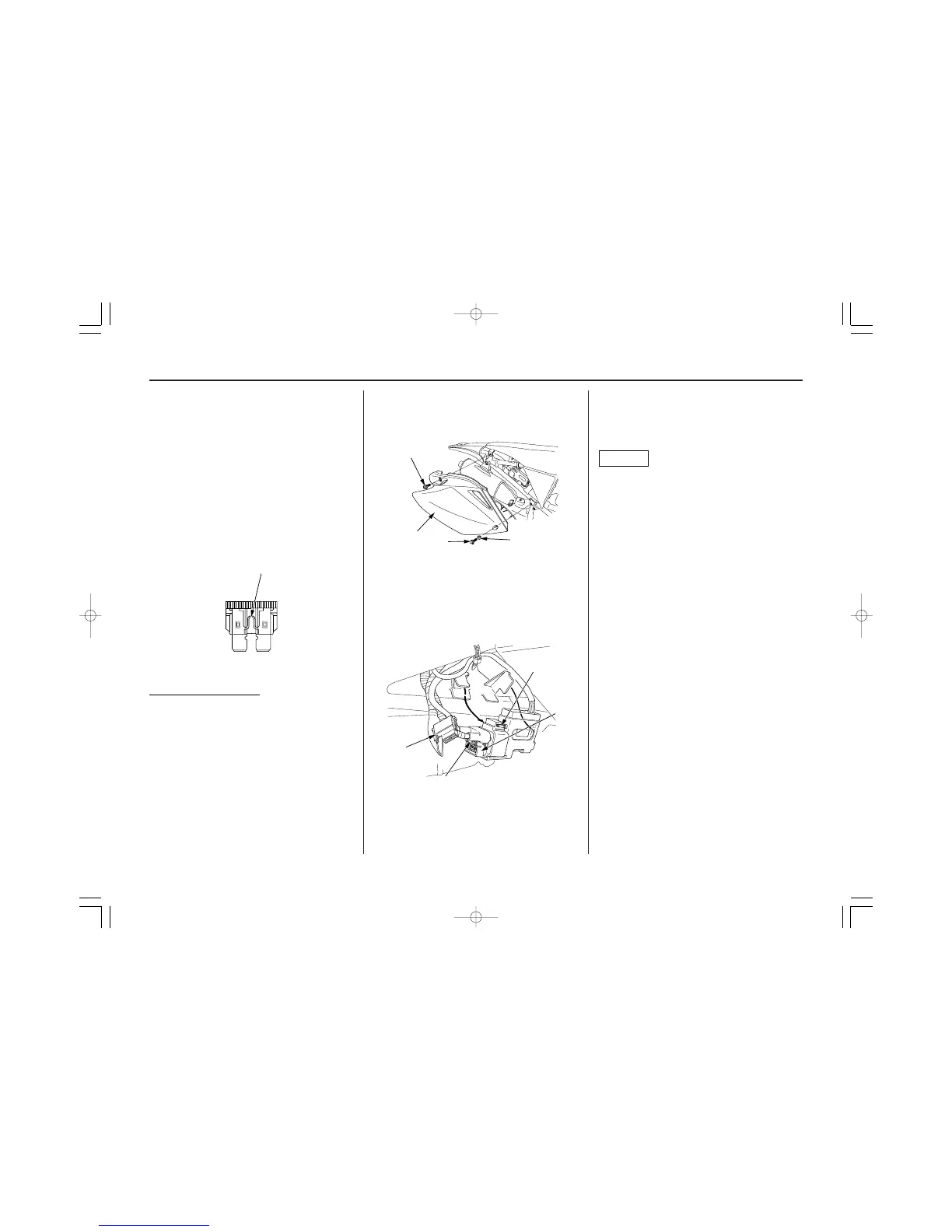

146 Taking Care of the Unexpected
If a Fuse Blows
All of the electrical circuits on your CRF have a
fuse to protect them from damage caused by
excess current flow (short circuit or overload).
If something electrical on your CRF stops
working, the first thing you should check for is a
blown fuse (1). Check the fuse before looking
elsewhere for another possible cause of the
problem. Replace a blown fuse and check
component operation.
• The main fuse (and spare) are located on the
starter magnetic switch behind the right side
cover.
(2) seat mounting bolt
(3) right side cover bolt
(4) collar
(5) right side cover
3. Disconnect the wire connector (6) of the
starter magnetic switch (7).
4. Pull out the main fuse (8). If it is blown,
install the spare main fuse (9).
1. To prevent an accidental short circuit, stop the
engine.
2.
Remove the seat mounting bolt (2), right side
cover bolt (3), collar (4) and right side cover (5).
(6) wire connector
(7) starter magnetic switch
(8) main fuse
(9) spare main fuse
5. Reconnect the wire connector.
If you do not have a replacement fuse with the
proper rating for the circuit, install one with a
lower rating.
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If you replace a blown fuse with a spare fuse that
has a lower rating, replace the fuse with the
correct rating as soon as you can. Also remember
to replace the spare fuse that was installed.
If the replacement fuse of the same rating burns
out in a short time, there is probably a serious
electrical problem on your CRF.
Leave the blown fuse in that circuit and have
your CRF checked by your Honda dealer.
NOTICE
(2)
(4)
(3)
(5)
(1) blown fuse
Recommended Main Fuse: 15A
(1)
(9)
(6)
(8)
(7)
250X_140-168.qxd 08.7.3 10:16 ページ146

Honda CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Induction	Keihin 37mm flat-slide carburetor
Ignition	CDI
Transmission	Wide-ratio five-speed
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Fuel Capacity	1.9 gallons
Final Drive	520 chain; 13T/51T
Rake	27.5 degrees
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Curb Weight	254 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
