Servicing Your Honda 83
Suspension
Rear Suspension Inspection
The swingarm is controlled by one hydraulic
shock absorber with an aluminum reservoir for
oil and nitrogen gas pressure. The gas pressure
in the reservoir is contained within a rubber
bladder.
The shock absorber’s spring pre-load and
damping adjustments (compression and rebound)
should be adjusted for the rider’s weight and
track conditions (page 124).
Do not attempt to disassemble, service, or
dis
pose of the damper; see your Honda dealer.
The instructions found in this owner’s manual are
limited to adjustments of the shock assembly only.
• When your CRF is new, break it in for
approximately one hour with the standard
suspension settings before attempting to
adjust the rear suspension.
• Make all compression and rebound damping
adjustments in the specified increment or
turns described in pages 121. (Adjusting two
or more increments or turns at a time may
cause you to pass over the best adjustment.)
Test ride after each adjustment.
• If the rear suspension is too stiff/soft, adjust it
by turning all the compression and rebound
adjusters according to the procedures
described in page 121. After adjusting the
adjusters simultaneously, suspension may be
fine-tuned by turning one of the compression
and rebound damping adjusters in one click or
in 1/12 turn increments.
• If you have a problem finding an acceptable
adjustment, return to the standard position and
begin again.

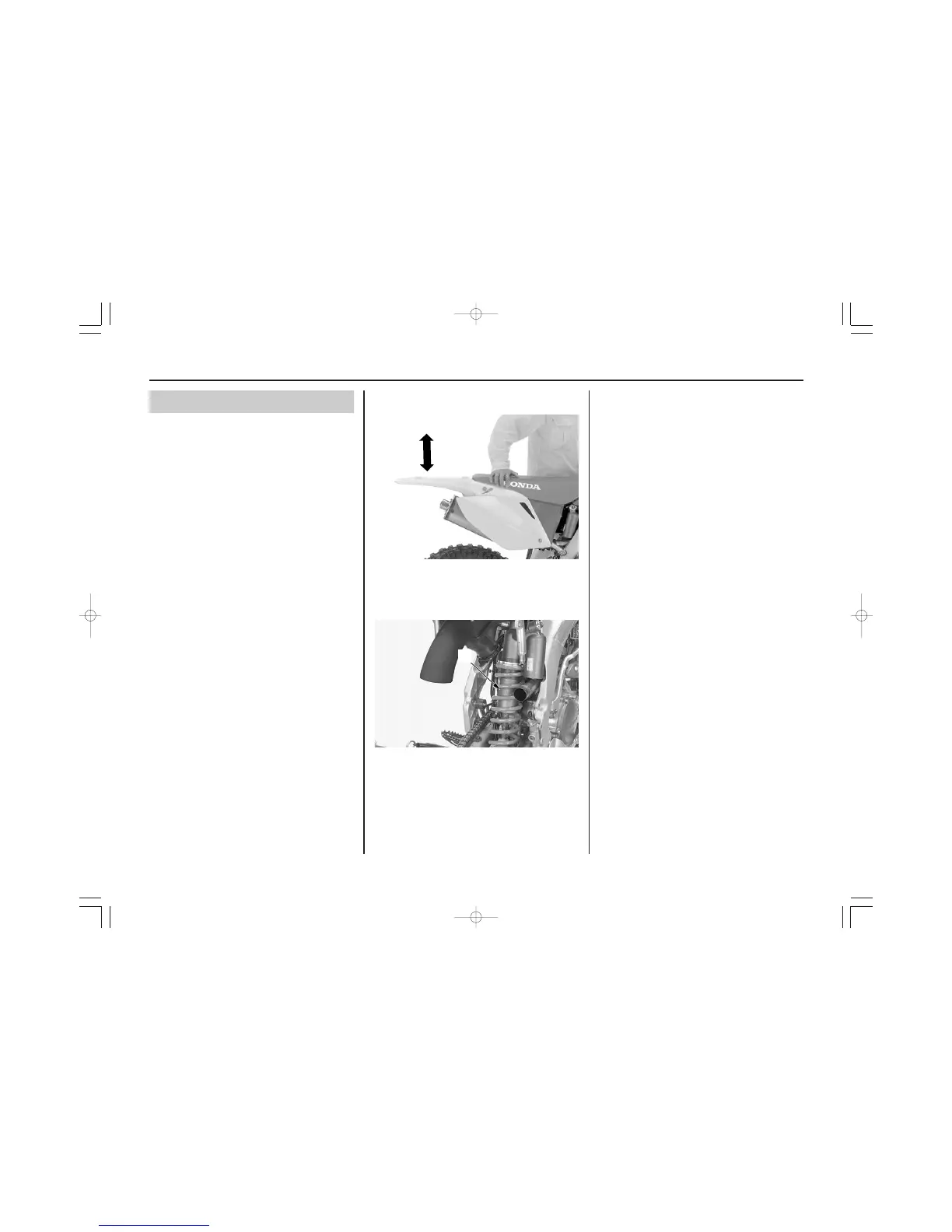

1. Bounce the rear of the motorcycle up and down
and check for smooth suspension action.
2. Lift the subframe to the upright position
(page 38).
3. Check for a broken or collapsed spring.
4. Check the rear shock absorber (1) for a bent
rod or oil leaks.
(1) rear shock absorber
5. Push the rear wheel sideways to check for
worn or loose swingarm bearings. There
should be no movement. If there is, have the
bearings replaced by your Honda dealer.
(1)
250X_060-083.qxd 08.7.3 10:12 ページ83

Honda CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Induction	Keihin 37mm flat-slide carburetor
Ignition	CDI
Transmission	Wide-ratio five-speed
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Fuel Capacity	1.9 gallons
Final Drive	520 chain; 13T/51T
Rake	27.5 degrees
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Curb Weight	254 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
