Honda CRF250X User Manual

Servicing Your Honda 37

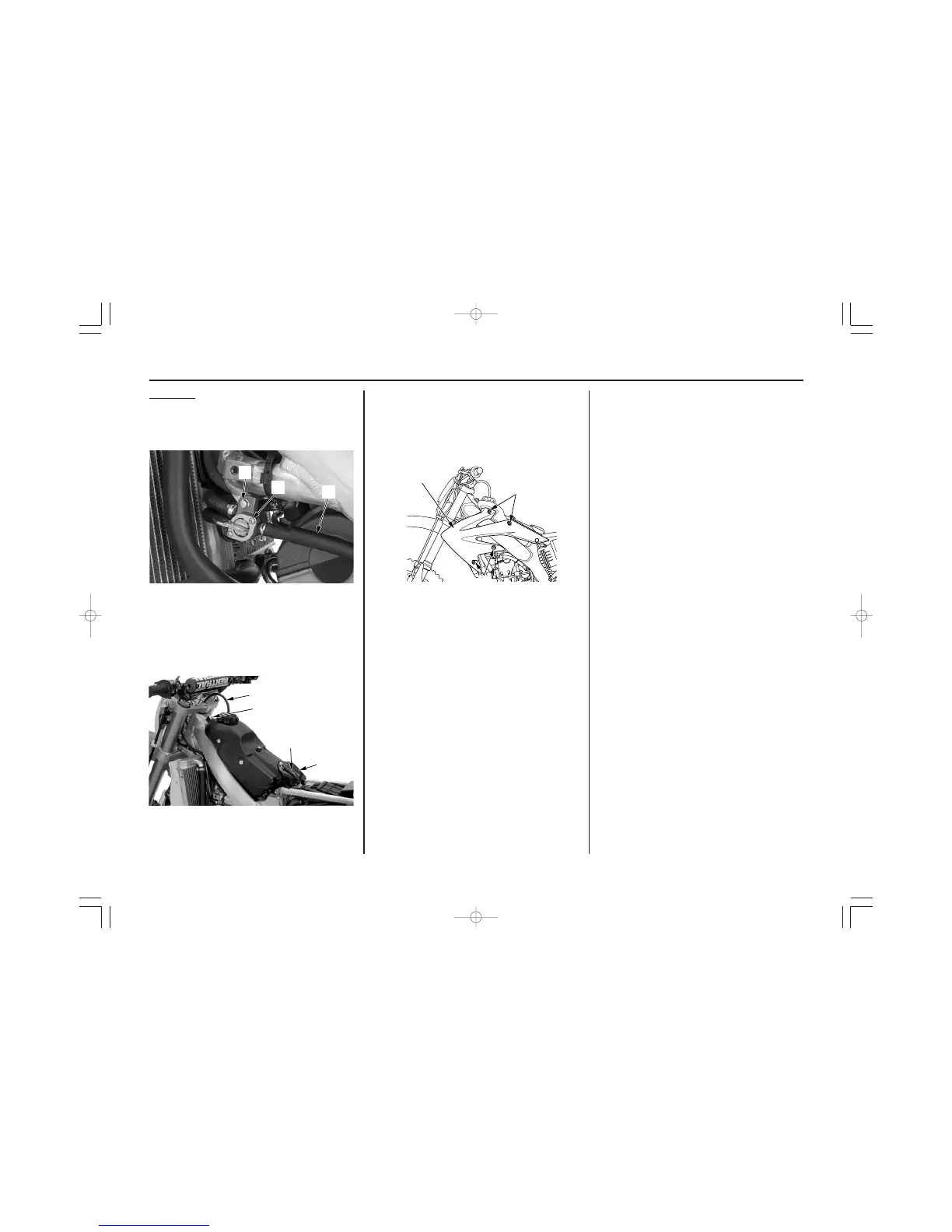

Fuel Tank Removal
(1)
(3)
(2)
(8)
(9)
(10)
Installation
1. Install the fuel tank on the frame.
2. Install the fuel valve (1) and tighten fuel valve
bolt (2).
3. Connect the fuel line (3) to the fuel valve.
(1) fuel valve (3) fuel line
(2) fuel valve bolt
4. Install and tighten the fuel tank bolt (4).
5. Hook the air cleaner cover rubber (5).
6. Install the fuel tank band (6).
7. Put the breather tube (7) in the steering stem
nut.
8. Install the shrouds (8) and shroud B bolts/
collars (9).
Tighten the shroud B bolts to the specified
torque:
5 N·m (0.5 kgf·m, 3.7 lbf·ft)
9. Install the shroud A bolts/collars (10).
(8) shroud
(9) shroud B bolts/collars
(10) shroud A bolts/collars
(4) fuel tank bolt (6) fuel tank band
(5) air cleaner cover rubber (7) breather tube
(7)
(4)
(6)
(5)
10.Install the seat (page 35).
250X_030-059.qxd 08.7.3 10:10 ページ37

Honda CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Induction	Keihin 37mm flat-slide carburetor
Ignition	CDI
Transmission	Wide-ratio five-speed
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Fuel Capacity	1.9 gallons
Final Drive	520 chain; 13T/51T
Rake	27.5 degrees
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Curb Weight	254 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
