Honda CRF250X User Manual

Servicing Your Honda 47
Transmission Oil
Checking & Adding Oil

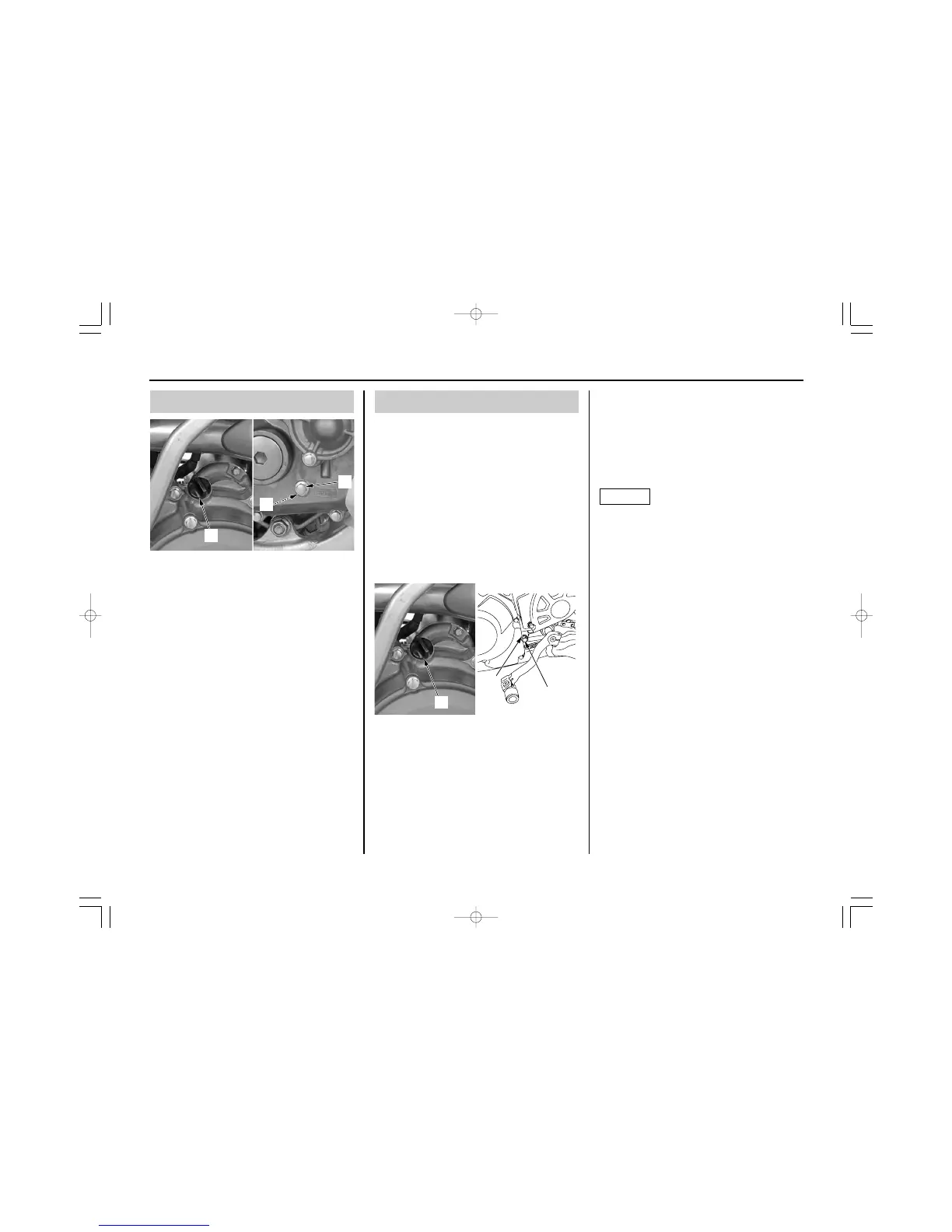

(1) transmission oil filler cap (3) sealing washer
(2) oil check bolt
1. Run the engine at idle for 3 minutes, then shut
it off.
2. Wait 3 minutes after shutting off the engine to
allow the oil to properly distribute itself in the
clutch and transmission.
3. Support the CRF in an upright position on a
level surface.
4. Remove the transmission oil filler cap (1), oil
check bolt (2) and sealing washer (3) from the
right crankcase cover. A small amount of oil
should flow out of the oil check bolt hole.
Allow any excess oil to flow out of the oil
check bolt hole.
If no oil flows out of the oil check bolt hole,
add oil slowly through the transmission oil
filler hole until oil start to flow out of the oil
check bolt hole.
Tighten the oil check bolt with a new sealing
washer and transmission oil filler cap. Repeat
step 1 – 4.
5. After inspection the oil level or adding oil,
tighten the oil check bolt to the specified
torque:
Oil Check Bolt:
12 N·m (1.2 kgf·m, 9 lbf·ft)
6. Install the transmission oil filler cap securely.
Replacing Transmission Oil
1. Run the engine at idle for 3 minutes, then shut
it off.
2. Support the CRF in an upright position on a
level surface.
3. Remove the transmission oil filler cap (1)
from the right crankcase cover.
4. Place an oil drain pan under the engine to
catch the oil. Then remove the transmission
oil drain bolt (2) and sealing washer (3).
5. After the oil has drained, apply fresh engine
oil to the transmission oil drain bolt threads
and tighten it with a new sealing washer to the
specified torque:
16 N·m (1.6 kgf·m, 12 lbf·ft)
6. Fill the crankcase with recommended oil.
Capacity:
0.67R(0.71 US qt, 0.59 Imp qt)
after oil change
7. Check the transmission oil level by following
the steps in
Checking & Adding Oil (this page).
Pour the drained oil into a suitable container and
dispose of it in an approved manner (page 143).
Improper disposal of drained fluids is harmful to
the environment.
NOTICE
(1)
(2)
(3)
(3)
(2)
(1)
(1) transmission oil filler cap
(2) transmission oil drain bolt
(3) sealing washer
250X_030-059.qxd 08.7.14 14:29 ページ47

Honda CRF250X Specifications

General

Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Induction	Keihin 37mm flat-slide carburetor
Ignition	CDI
Transmission	Wide-ratio five-speed
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/100-18
Trail	113mm (4.4 inches)
Wheelbase	58.3 inches
Seat Height	37.7 inches
Fuel Capacity	1.9 gallons
Final Drive	520 chain; 13T/51T
Rake	27.5 degrees
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Curb Weight	254 lbs (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
