Honda CRF450RX 2020 User Manual

8 Instruments & Controls
MIL (Malfunction Indicator Lamp)
Always clean around the ECM and keep debris
away from the connectors before disconnecting
them.
A faulty PGM-FI system is often related to poorly
connected or corroded connections. Check the
following connections.
Remember, circuit inspection is not a “cure-all” for
other problems in your engine’s PGM-FI system.

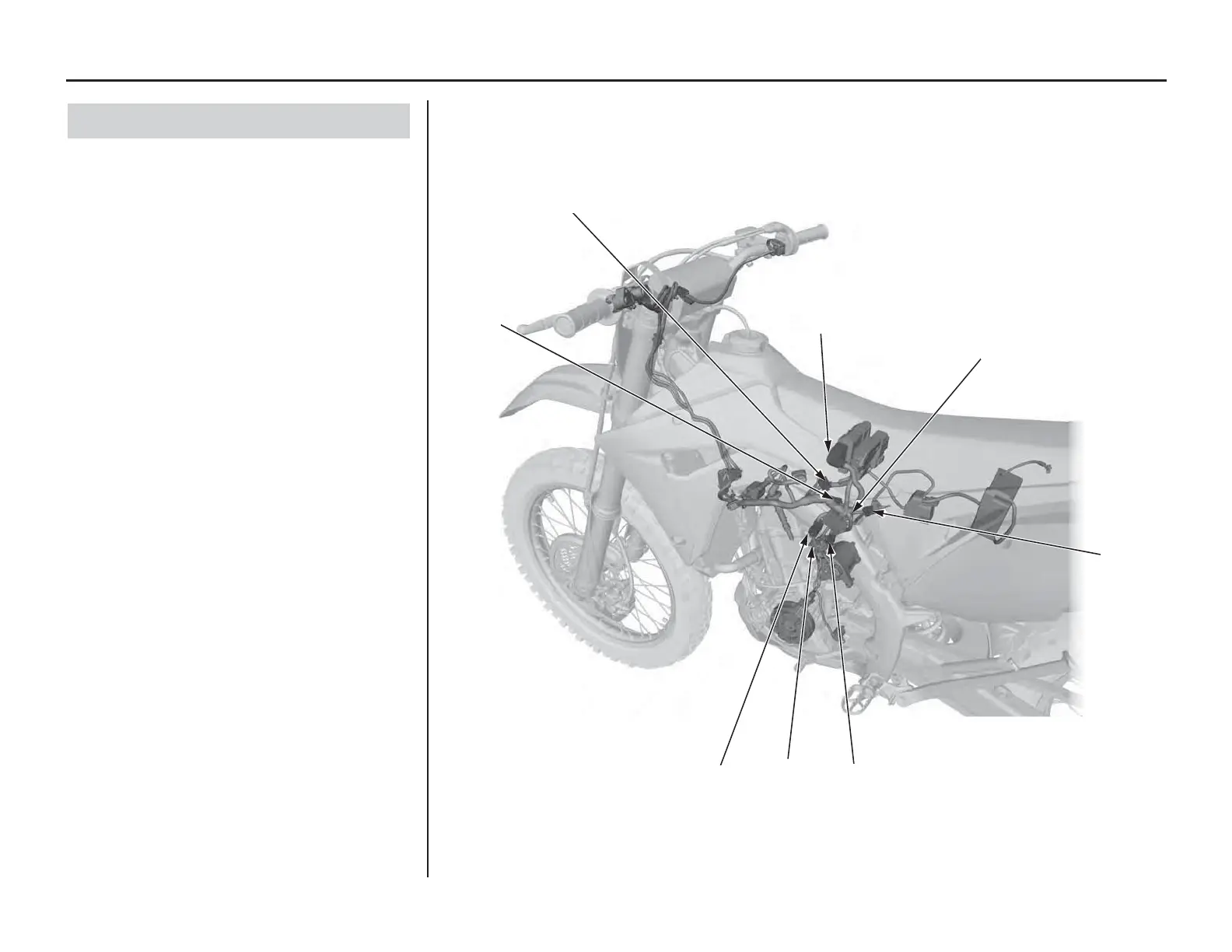

Circuit Inspection
(1) MAP sensor connector
(2) ECT sensor connector
(3) TP sensor connector
(4) IAT sensor connector
(5) Injector connector
(6) CKP sensor connector
(7) ECM connector
(8) GP sensor connector
(3)
(4)
(2)
(6)
(1)
(5)
(7)
(8)

Honda CRF450RX 2020 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	13.5:1
Induction	Programmed Fuel Injection (PGM-FI), 46mm throttle body
Ignition	Full transistorized ignition
Transmission	5-speed
Final Drive	Chain
Front Brake	Single 260mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-18
Wheelbase	58.3 inches
Seat Height	37.8 inches
Ground Clearance	12.9 inches
Starter	Electric
Trail	4.6 inches
Front Suspension	49mm inverted fork with rebound and compression damping adjustability; 12.0 inches travel
Rear Suspension	12.4 inches of travel
Valve Train	Unicam, four-valve
