Honda EG5000X User Manual

＃＃
＃＃
＃
＃＃
18
AC RECEPTACLE SELECTION
Power Producing Circuits
120V/240V 120V ONLY
POWER
CIRCUIT 1
POWER
CIRCUIT 2
POWER CIRCUIT 1
POWER CIRCUIT 2
RECEPTACLE 3 RECEPTACLE 4
RECEPTACLE 5
RECEPTACLE 2RECEPTACLE 1

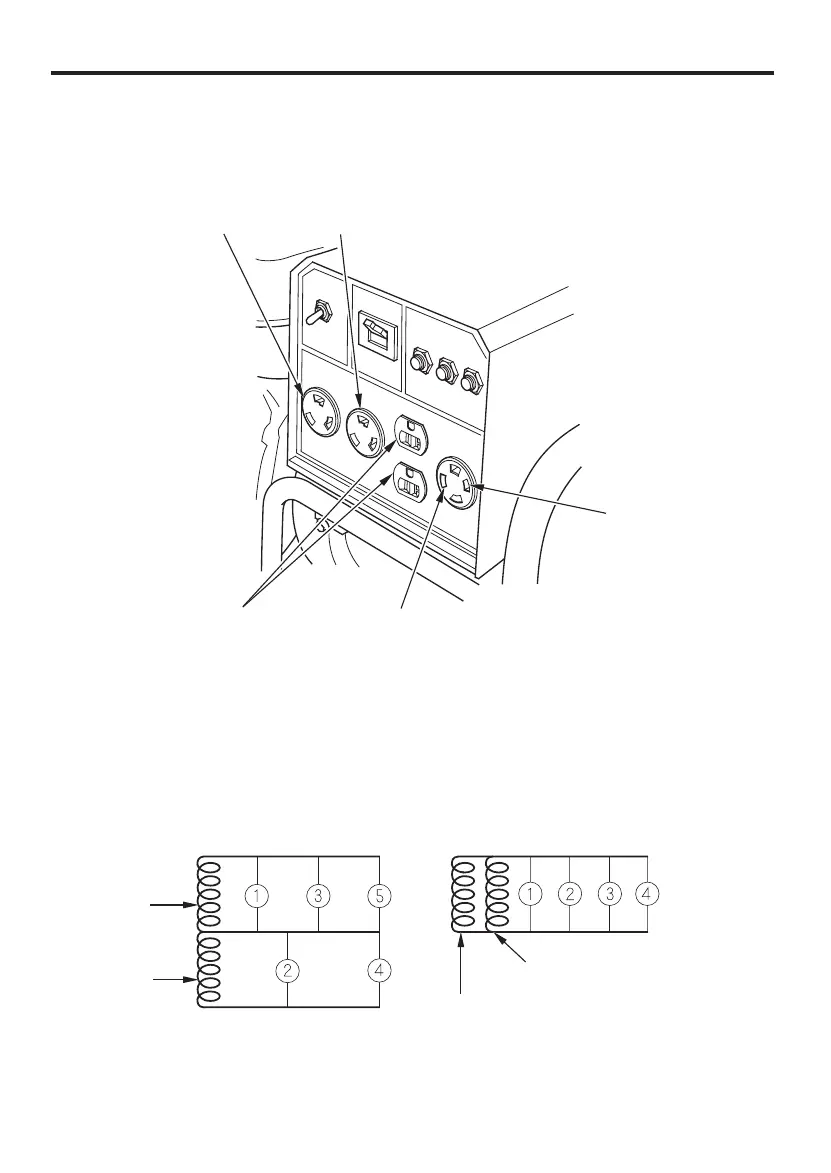

The control panel, shown below, has a voltage selector switch and
five receptacles. Receptacle 4 and 5 comprise one 240-volt
receptacle with two powered terminals.
When the voltage selector switch is in the 120V ONLY position, the
power producing circuits operate in parallel, sharing the total load
connected to receptacles 1, 2, 3, and 4.
This generator is equipped with two power generating circuits. When
the voltage selector switch is in the 120V/240V position, each of the
two power producing circuits supplies power to specific receptacles.
