CYLINDER BLOCK
14-5

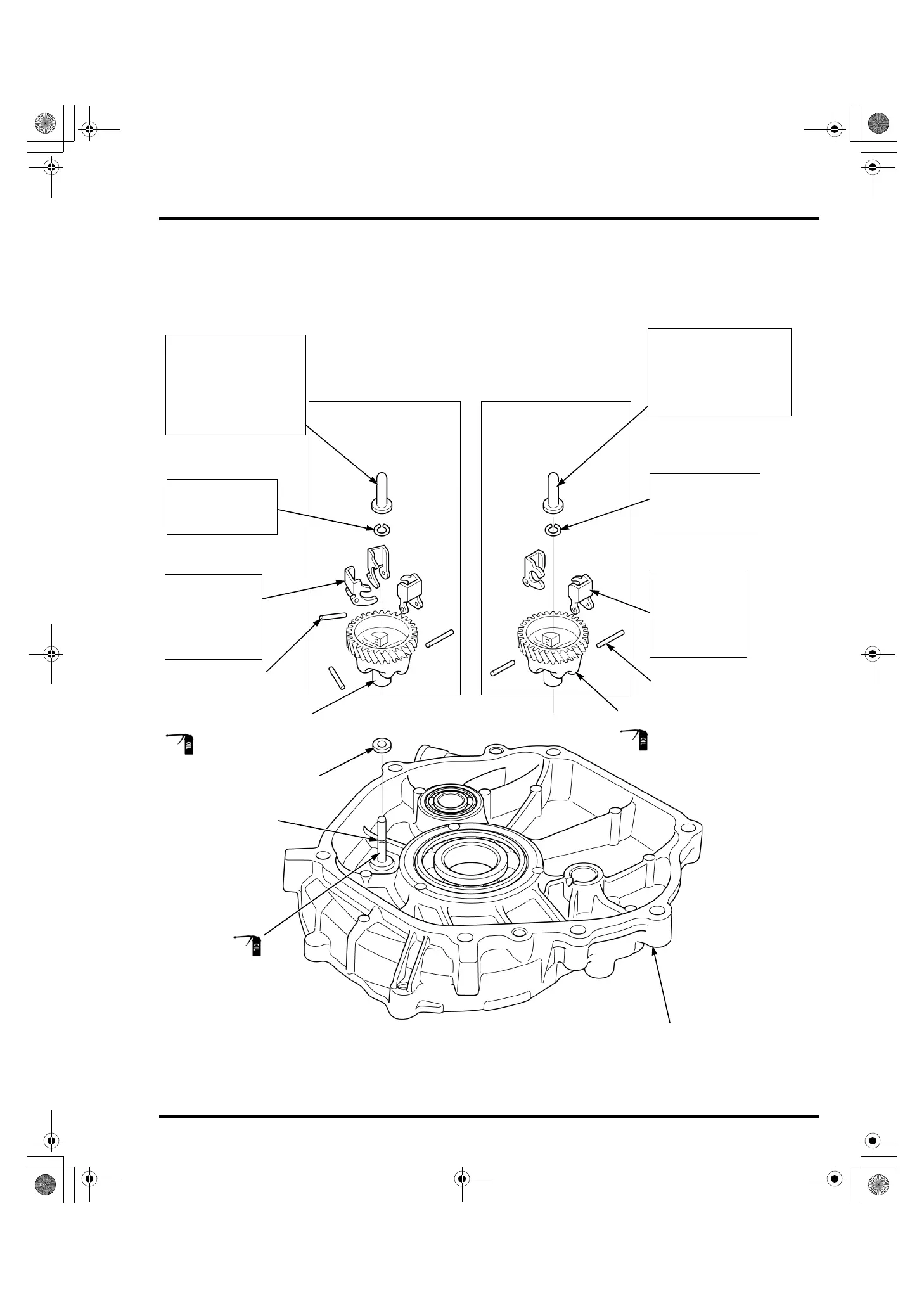

GOVERNOR DISASSEMBLY/ASSEMBLY
Remove the crankcase cover (page 14-3).
groove
EG3600CX
/EG4000CX:
Except
EG3600CX
/EG4000CX:
WASHER (6 mm)
CRANKCASE COVER
GOVERNOR SLIDER
GOVERNOR
HOLDER CLIP
ASSEMBLY:
Spread the governor weight
to install the governor
slider.
After installing the governor
slider, check to be sure it
moves smoothly.
GOVERNOR WEIGHT HOLDER
GOVERNOR
WEIGHT (3)
ASSEMBLY:
Install firmly into the
groove of the
governor shaft.
REASSEMBLY:
After installing the
governor weight,
check to be sure
they moves
smoothly.
(Apply to the weight
installation part and gear)
GOVERNOR
WEIGHT PIN (3)
GOVERNOR SLIDER
GOVERNOR
HOLDER CLIP
ASSEMBLY:
Spread the governor weight
to install the governor slider.
After installing the governor
slider, check to be sure it
moves smoothly.
GOVERNOR WEIGHT HOLDER
GOVERNOR
WEIGHT (2)
ASSEMBLY:
Install firmly into the
groove of the
governor shaft.
REASSEMBLY:
After installing the
governor weight,
check to be sure
they moves
smoothly.
(Apply to the weight
installation part and gear)
GOVERNOR
WEIGHT PIN (2)
82Z30000.book 5 ページ ２０１０年６月２５日 金曜日 午後５時５０分

Honda EG6500CXS Specifications

General

AC Output	120/240V
Displacement	389 cc
Engine	Honda GX390
Rated Power	5.5 kVA
Maximum Power	6.5 kVA
DC Output	12V
Starting System	Electric
