50
TECHNICAL & CONSUMER INFORMATION

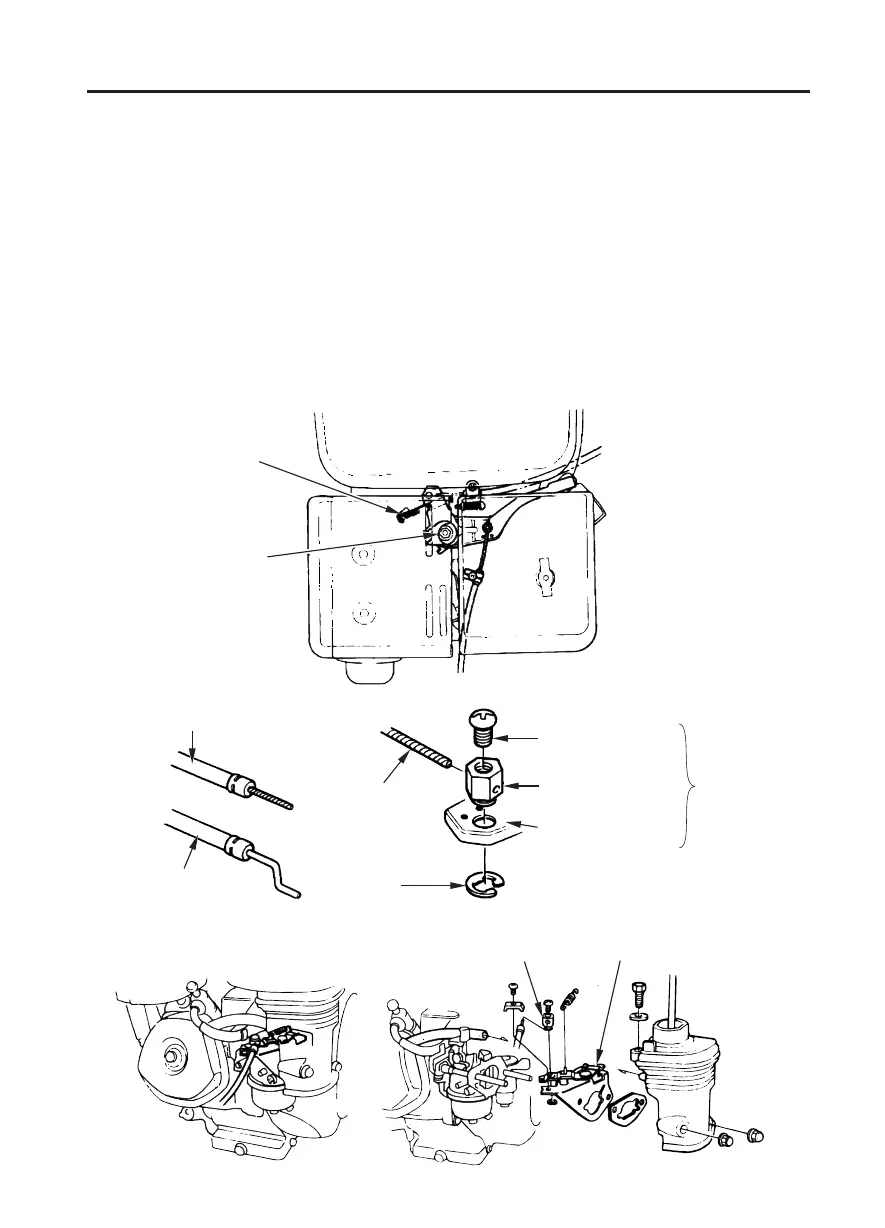

Remote Control Linkage
RETURN SPRING
THROTTLE LEVER
PIVOT NUT
Flexible wire core
mounting
Solid wire core
mounting
WIRE
5mm
CIRCLIP
THROTTLE
LEVER
WIRE HOLDER
4 mm SCREW
OPTIONAL
WIRE HOLDER CHOKE LEVER
REMOTE CHOKE LINKAGE
REMOTE THROTTLE LINKAGE
The throttle and choke control levers are provided with holes for
optional cable attachment. The following illustrations show
installation examples for a solid wire cable and for a flexible, braided
wire cable. If using a flexible, braided wire cable, add a return spring
as shown.
It is necessary to loosen the throttle lever friction nut when operating
the throttle with a remote-mounted control.
03/08/21 20:14:12 31ZH9613_051
