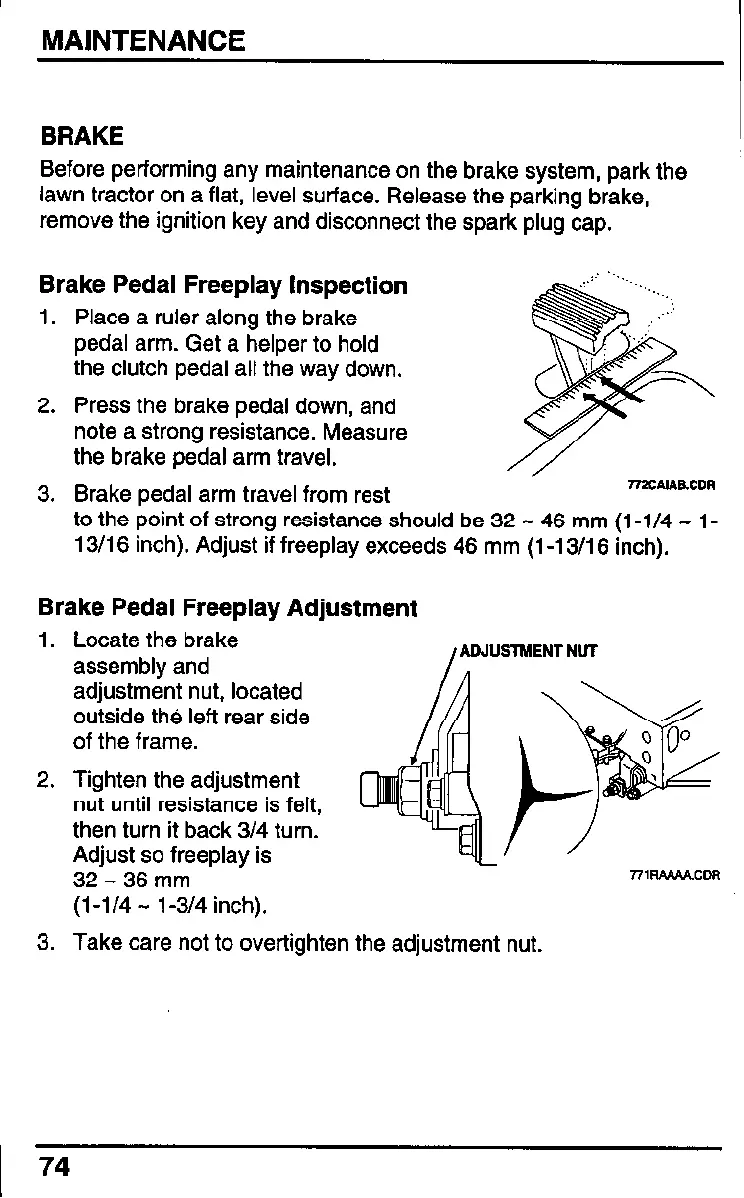

MAINTENANCE
Brake Pedal Freeplay Inspection
Place a ruler along the brake
1.
2.
3.
pedal arm. Get a helper to hold
the clutch pedal all the way down.
Press the brake pedal down, and
note a strong resistance. Measure
the brake pedal arm travel.
Brake pedal arm travel from rest
TIXAlA0.CDR
to the point of strong resistance should be 32 - 46 mm (l-1/4 - l-
13/l 6 inch). Adjust if freeplay exceeds 46 mm (l-1 3/l 6 inch).
BRAKE
Before performing any maintenance on the brake system, park the
lawn tractor on a flat, level surface. Release the parking brake,
remove the ignition key and disconnect the spark plug cap.
Brake Pedal Freeplay Adjustment
1.
2.
3.
Locate the brake
assembly and
adjustment nut, located
outside the left rear side
of the frame.
Tighten the adjustment
nut until resistance is felt,
then turn it back 3/4 turn.
Adjust so freeplay is
32-36 mm
(1 -l/4 - l-3/4 inch).
Take care not to overtighten the adjustment nut.
JUSTMENT NUT
74
