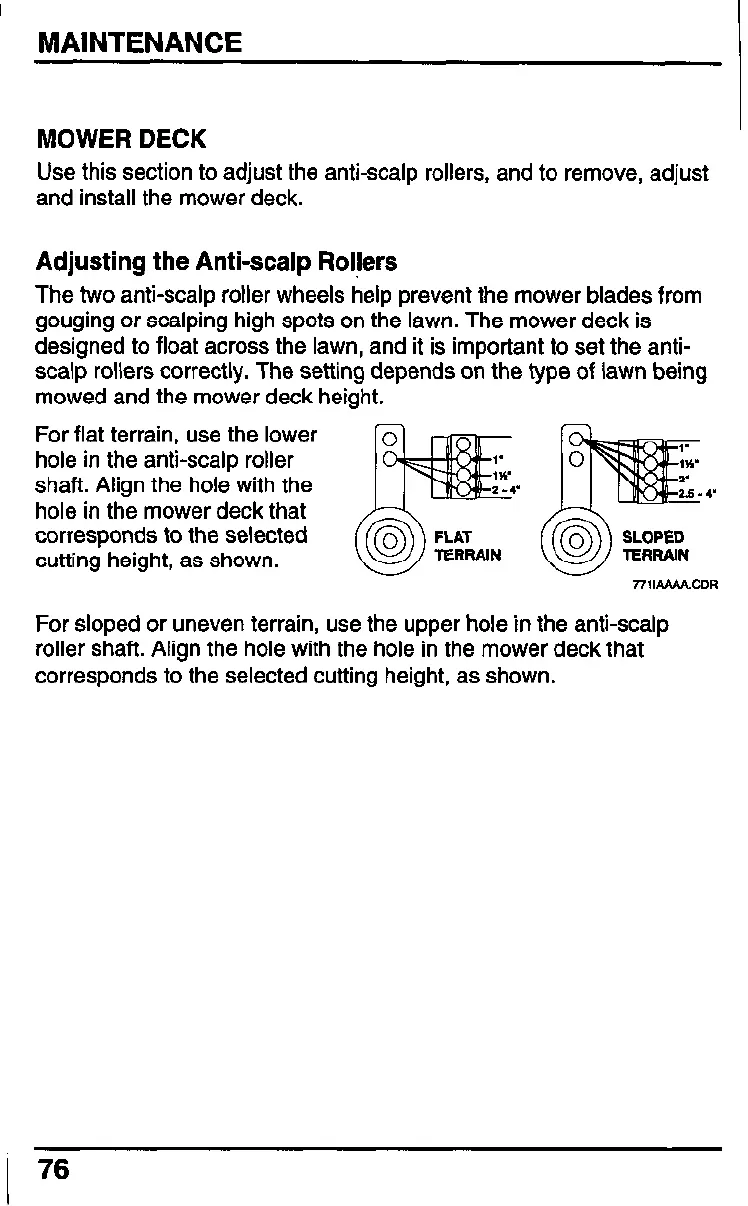

MAINTENANCE
MOWER DECK
Use this section to adjust the anti-scalp rollers, and to remove, adjust
and install the mower deck.
Adjusting the Anti-scalp Rol!ers
The two anti-scalp roller wheels help prevent the mower blades from
gouging or scalping high spots on the lawn. The mower deck is
designed to float across the lawn, and it is important to set the anti-
scalp rollers correctly. The setting depends on the type of lawn being
mowed and the mower deck height.
For flat terrain, use the lower
hole in the anti-scalp roller
shaft. Align the hole with the
4’
hole in the mower deck that
corresponds to the selected
cutting height, as shown.
77IlAAAA.CDR
For sloped or uneven terrain, use the upper hole in the anti-scalp
roller shaft. Align the hole with the hole in the mower deck that
corresponds to the selected cutting height, as shown.
76
