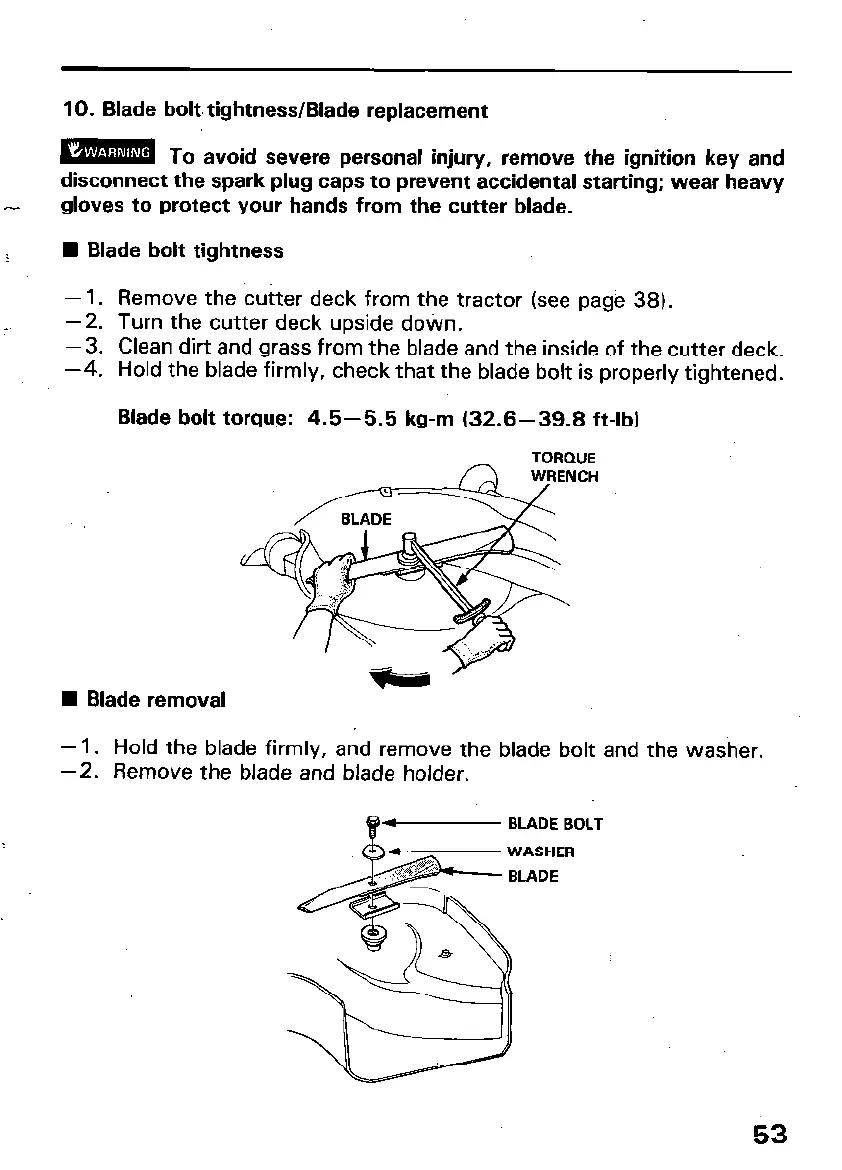

10. Blade bolt. tightness/Blade replacement
m To avoid severe personal iniury, remove the ignition key and
disconnect the spark plug cabs to prevint accidental starting; wear heavy
gloves to protect your hands from the cutter blade.
n Blade bolt tightness
- 1. Remove the cutter deck from the tractor (see page 38).
-2. Turn the cutter deck upside dotin.
-3.
Clean dirt and grass from the blade and the inside of the cutter deck.
-4.
Hold the blade firmly, check that the blade bolt is properly tightened.
Blade bolt torque: 4.5-5.5 kg-m (32.6-39.8 ft-lb)
TORQUE
W Blade removal
- 1. Hold the blade firmly, and remove the blade bolt and the washer.
-2. Remove the blade and blade holder.
P
- BLADE BOLT
53
