Honda MB5 1982 User Manual

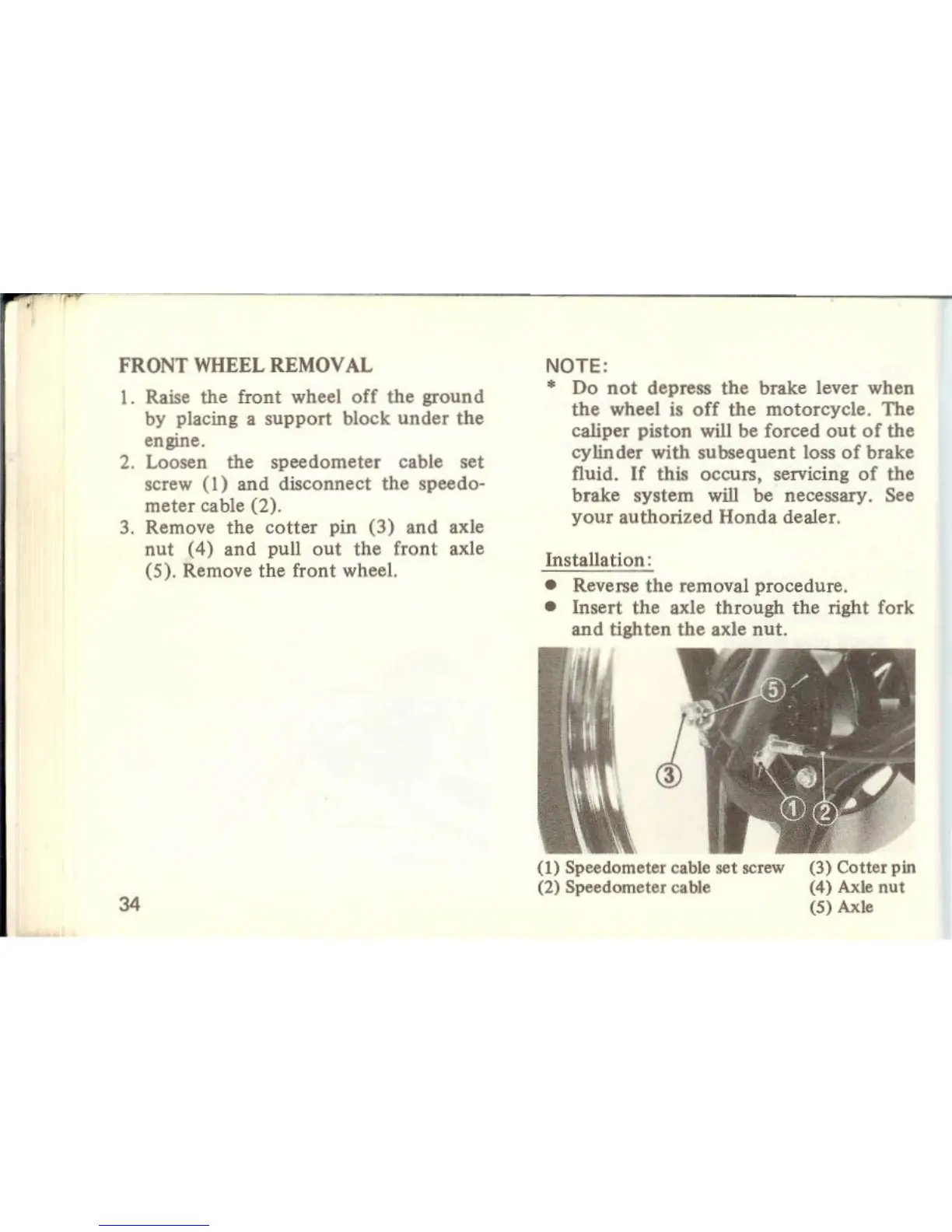

FRONT WHEEL REMOVAL
1. Raise the front wheel off the ground
by placing a
support block under the
engine.
2. Loosen the speedometer cable set
screw (
1) and disconnect the speedo-
meter cable (2).
3. Remove the cotter pin (3) and axle
nut ( 4) and pull out the front axle
(5). Remove the front wheel.
34
NOTE:
* Do not depress the brake lever when
the wheel is off the motorcycle. The
caliper piston will be forced out of the
cylinder with subsequent loss of brake
fluid.
If this occurs, servicing of the
brake system will be necessary. See
your authorized Honda dealer.
Installation:
• Reverse the removal procedure.
• Insert the axle through the right fork
and tighten
the axle nut.
(1) Speedometer cable set screw
(2) Speedometer cable
(3) Cotter pin
(4) Axle nut
(5) Axle

Honda MB5 1982 Specifications

General

Brand	Honda
Model	MB5 1982
Category	Motorcycle
Language	English
