Removing & Installing Body Components u Front Top Cover
64
Front Top Cover
#
Removal
1.
Remove the clips. 2 P. 63
2.
Remove the screws A and the screws B.
3.
Remove the front top cover by releasing
the tabs and the harness clip then
disconnect the connector A and the
connector B.
#
Installation
Install the parts in the reverse order of
removal.

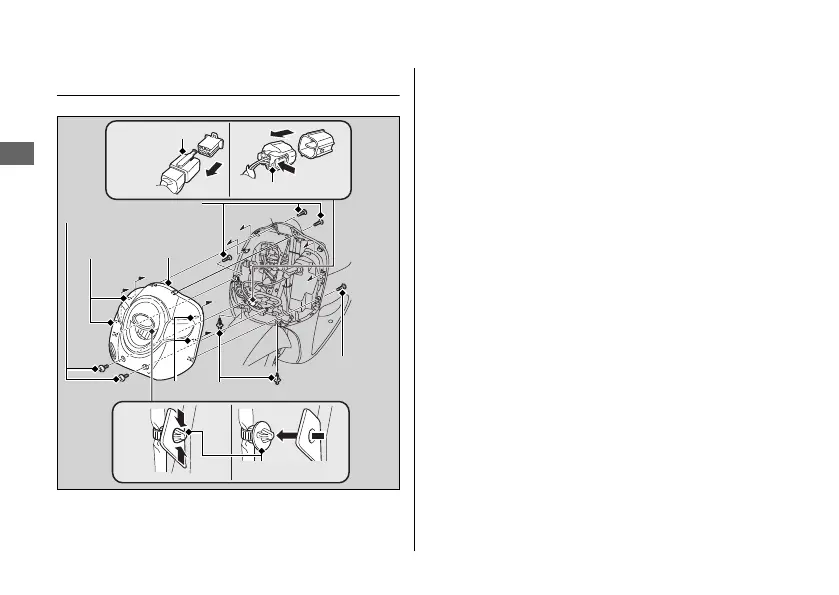

Front top
cover
Screws A
Tabs
Clips
Connector B
Screws B
Tabs
Screw A
Harness clip
Connector A
