Removing & Installing Body Components u Clip B
60
Maintenance
Clip B
The clip B must be removed to service the
coolant reserve tank.
❙

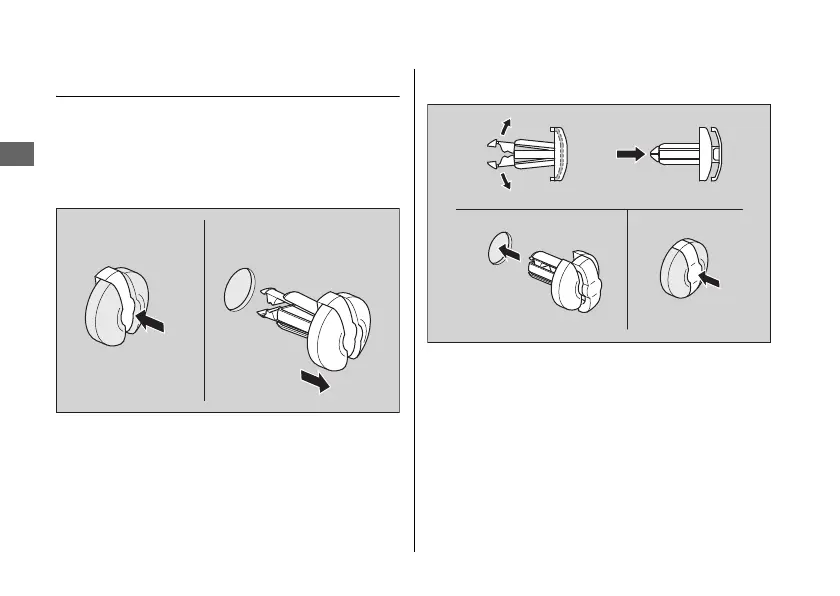

Removal
1. Press down on the centre pin to release
the lock.
2. Pull the clip out of the hole.
❙
Installation
1. Slightly open the retaining pawls and then
push them out.
2. Insert the clip into the hole.
3. Press down on the centre pin to lock the
clip.
!a !b
!a
!b !c
