Honda Urban Express NU50 1982 User Manual

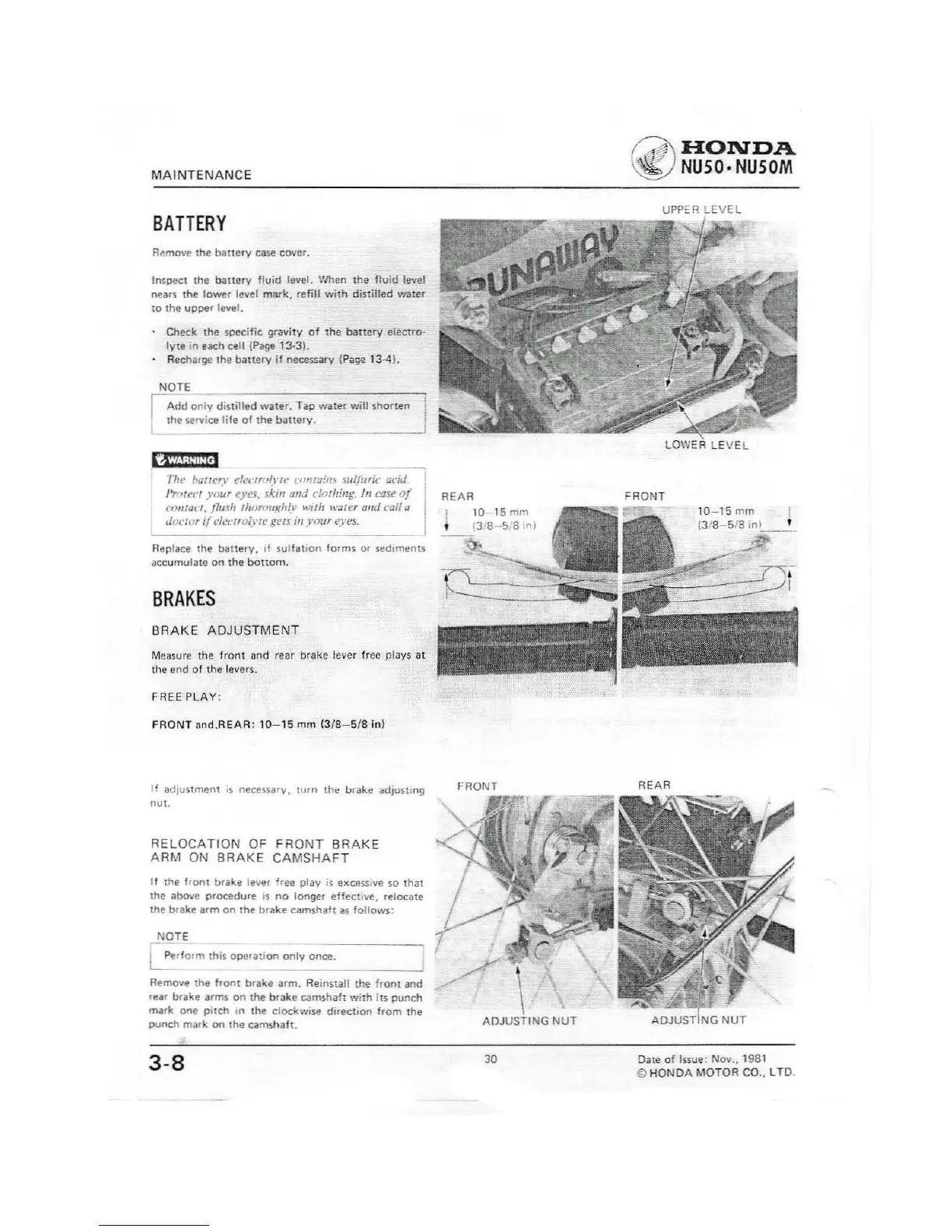

MAINTENANCE
BATTERY
Remove lh!! bantry case cover.
Inspect the battery fluid level. '.''IIhen the fluid level
nears the lower level mas-k, refill with distilled water
to the upper level.
Check the specific; gravity of the battery electro-
lyte in each cell (Page 13-31.
Recharge the battery if necessary (Page 13-41.
NOTE
IAdd only distilled water. Tap water will shorten
I ;he service life of the batlery.
'd'2Q'iii!f1
Tile haw-r)' t'fccrm{I"'" suI/uric GeM
/'rnfen your eye.f. skill (lJIJ dorhitlg_ III case Of
('0IlrO("1. /lu{l/ tJllm.Jll.tflt{r .... -;th It".ner alld call u
r/()('tOf if gNS ill your .:yes.
Replace the battery, II sullatioll forms Of sediments
accumulate on the bonom.
BRAKES
BRAKE ADJUSTMENT
Measure the fronl and rear brake lever free plays at
the end of the levers.
FREE PLAY:
FRONT and.REAR: 10-15 mm (3/8-5/8 in)
If adjustment is necessary, turn the urake adjustm9
nut.
RELOCATION OF FRONT BRAKE
ARM ON BRAKE CAMSHAFT
U the front b,ake lever play is eXCp.$Slve so that
the above procedure IS no longer effective, relocate
the
blake arm on the brake camshaft as follows:
thiS operatIon only once.
Remove the front brake arm. Reinstall the front and
rear brake arms on the brake camshaft with its punch
mark. one pilch III the clockwise direction from the
punen mark on the
3-8
-:.' ,',
... '
"._-'1#
, ..
ADJUSTiNG NUT
30
@ NU50· NU50M
UPP:::R lEVEL
LOWER LEVEL
FRONT
10-15mm
(3'8-5/8 inl __
REAR
Date of Issue: Nov., 1981
© HONDA MOTOR CO., LTO.
