CIU Emulation
Part No.: 4417589_Rev13 Protocol Manual - CIU Emulation
CIU 888 1 - 3
1.1 CIU Emulation Configuration Procedure
NOTE: For guidance on which tool to use for CIU Emulation configuration, refer to
Introduction section of configuration manual.
1.1.1 Configuring a host port for CIU Emulation using Service tool
The following configuration settings in Service tool need to be applied to
enable CIU Emulation for one of the host ports of the CIU 888.
NOTE: Refer to the Configuration Manual CIU 888 (Part No. 4417584) for more
information about the commissioning and configuration of the CIU 888.
1. On the HostPort tab, Set the Protocol Type property to CIU-GPU
(see FIGURE 1-2, 1).
2. If required, select the MSU mode option (see FIGURE 1-2, 2). Refer
to section 1.3.3 for more information about MSU mode.
A check mark is displayed in the associated check box.
3. If required, enable or disable the Host port cache option (see
FIGURE 1-2, 3).

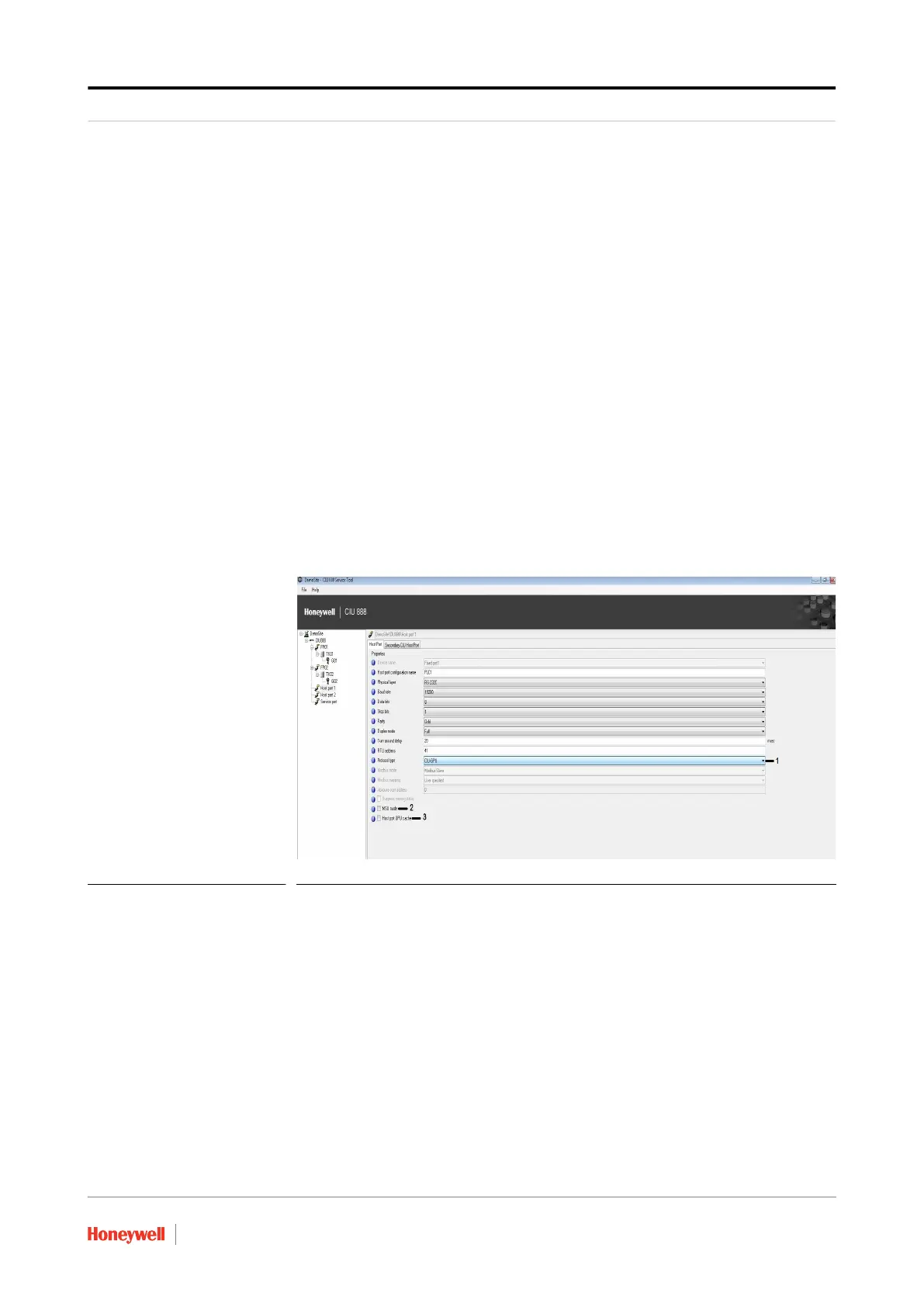

FIGURE 1-2 CIU Emulation-Service Tool
1.1.2 Configuring a host port for CIU Emulation using Ensite Pro
The following configuration settings in Ensite Pro need to be applied to
enable CIU Emulation for one of the host ports of the CIU 888.
NOTE: Refer to the Configuration Manual CIU 888 (Part No. 4417584) for more
information about the commissioning and configuration of the CIU 888.
CIU Prime
1. On the HostPort 2 tab, select the Advanced option (see FIGURE 1-
3, 1).
