Release 1 34-ST-25-19 RMA 3000 Remote Meter Assemblies User Manual
6/04
7
RED
YEL
BLU
YEL
RED
Smart Meter
51308619-002
4 -20 mA
Analog
30751118-TAB
FL1
FL2
FL3
Filter Plate Assy
51204200-001
FL Ci ≤ 6 nF
Analog Assembly (ME)
IS Parameters
Ui ≤ 30 V, Ii ≤ 100 mA, Pi ≤ 1.2 W
Ci ≤ 0
Li ≤ 150 µH
Ri ≈ 0
Smart Meter Assembly (SM) with Filters
IS Parameters
Ui ≤ 30 V, Ii ≤ 100 mA, Pi ≤ 1.2 W
Ci ≤ 18 nF
Li ≈ 0 (negligible)
Ri ≈ 0
Field Wiring
Connections
Ref. 51202263, Remote Meter MOA 10/28/2002
RED
YEL
BLU

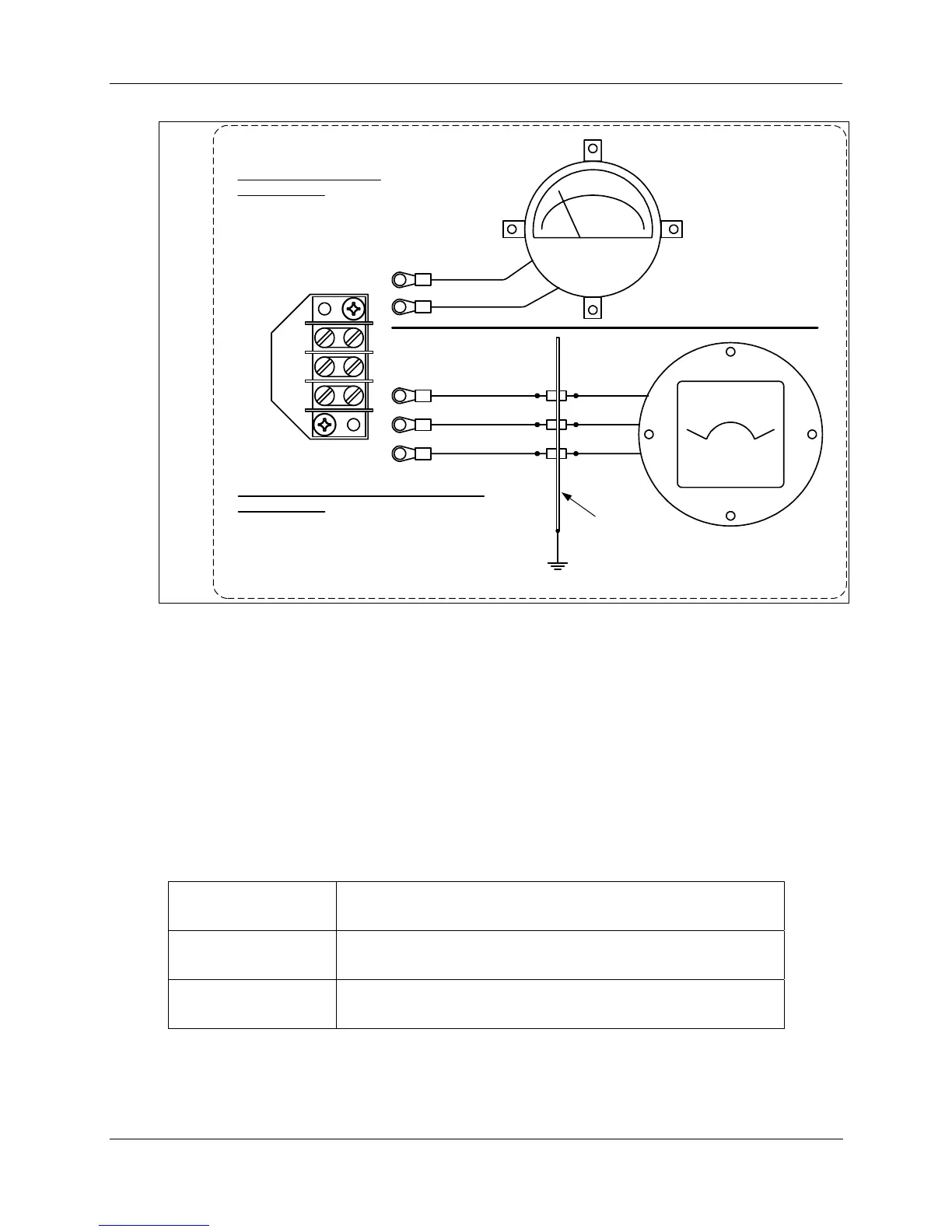

Figure 6 RMA 3000 Intrinsic Safety Parameters
Approvals/Certifications
Each of the meter selections (SM/DM/ME) itself carries no approvals or certifications for use in hazardous
areas (or for RFI, etc). However, when it is properly installed in the flameproof/explosion-proof housing,
or when installed as intrinsically safe, the meter is covered by the approvals and certifications of the
housing (or as intrinsically safe) and of the installation practices used therewith. When installed as
intrinsically safe, external wiring shall be in accordance with ordinary location requirements; that is, NEC
or CEC or local codes.
For information regarding integral installation in Honeywell Smart Transmitters refer to the following
publications.
ST 3000 Smart Pressure Transmitters
34-ST-25-14B
ST 3000 Smart Transmitter Release 300 and SFC Smart Field
Communicator Model STS 103 User’s Manual
34-ST-25-17A
ST 3000 Smart Transmitter Release 300 with HART
Communications Option User Manual
34-ST-25-33C
ST 3000 Smart Transmitter Release 300 and SFC Smart Field
Communicator Model STS 103 User’s Manual
