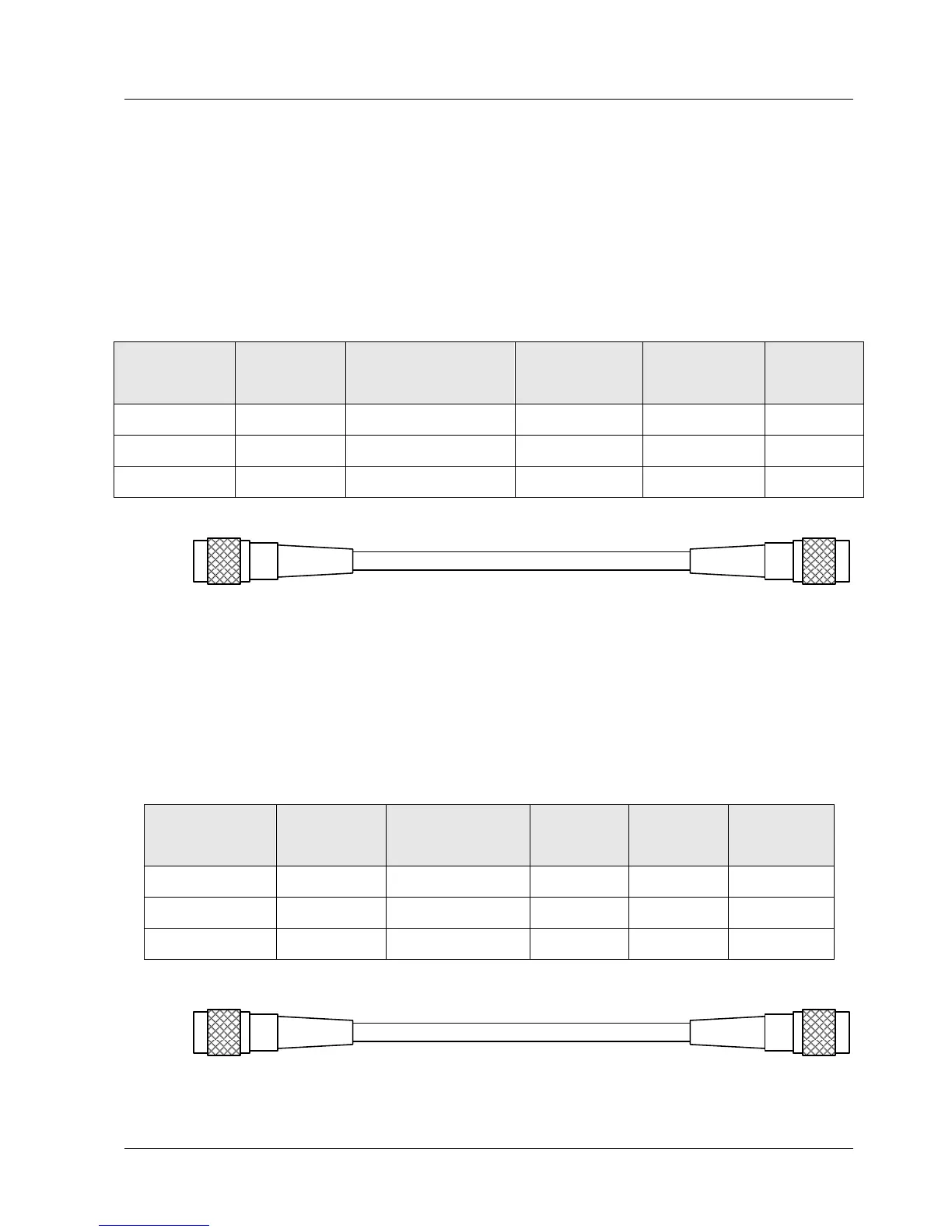

5
.
Cables
5.1
.
SmartLine
W
ireless Transmitter with N Connectors Antenna or
Lightning Arrestor Cables
Revision 1
SmartLine Wireless Transmitter Professional Installation Guide
11
5.
Cables
5.1
SmartLine Wire
less Transmitter
with N Connecto
rs Antenn
a or
Lightning
Arrestor Cables
Table 5-1 Transm
itter to A
ntenna or Lightning
A
rrestor Cable Specifications
for
SmartLine Wireless
with N connecto
rs
Honeywell
Part Number
Cable Type
Connector
Type
Frequency
(GHz)
Length
(m)
Loss
(dB)
50018278-001
400 Series
N male to N m
ale
2.4
1
1
50018278-003
400 Series
N male to N m
ale
2.4
3
2
50018278-010
400 Series
N male to N m
ale
2.4
10
3
TYPE N-MALE
TYPE N-MALE
5.2
Transmitter co
nnection status
Table 5-
3
Lightning
Arrestor to A
ntenna Cable Specifications
Honeywell
Part Number
Cable Type
Connector
Type
Frequency
(GHz)
Length
(m)
Loss
(dB)
50018278-001
400 Series
N male to N m
ale
2.4
1
1
50018278-003
400 Series
N male to N m
ale
2.4
3
2
50018278-010
400 Series
N male to N m
ale
2.4
10
3
TYPE N-MALE
TYPE N-MALE
20
22
Table of Contents
Default Chapter
7
Table of Contents
7
1 Designation, Scope and Preface
11
Designation
11
Table 1-1 - Smartline Wireless Transmitter Types
11
Scope
12
Preface
12
Site Survey
12
Abbreviations & Definitions
13
Table 1-2 -Table of Abbreviations and Definitions
13
2 Federal Communication Commission (Fcc)
15
FCC Compliance Statement
15
Industry Canada (IC)
15
IC Compliance Statements
15
RF Safety Statement
15
FCC and Industry Canada (IC) Identification Numbers
16
ISA100 Radios
16
Intended Country Usage
16
North America
16
European Union
16
3 Smartline Wireless Transmitter General Description
17
Intended Used
17
Smartline Wireless Transmitter
17
Figure 3-1 Smartline Wireless Pressure Transmitter Showing 4 Dbi Integral Antenna
17
4 Product Specification
18
ISA100 Radio, 2.4 Ghz
18
Table 4-1 Specifications of ISA100 Radio Module in Smartline Wireless Transmitter
18
Smartline Wireless Transmitter User Environment
19
Smartline Wireless Instrument Power Specifications
19
Weight
19
Table 4-2 User Environment Specifications for Smartline Wireless Transmitter
19
Dimensions
20
Figure 4-1 Dimensions of a Typical Smartline Wireless Transmitter with the 4 Dbi Integral Antenna Option
20
5 Cables
21
Smartline Wireless Transmitter with N Connectors Antenna or Lightning Arrestor Cables
21
Transmitter Connection Status
21
Table 5-1 Transmitter to Antenna or Lightning Arrestor Cable Specifications for Smartline Wireless with N Connectors
21
Antenna Lightning Arrestors
22
6 Approved Antenna Types/Gains
23
Antenna Details
23
Table 6-1 Approved Antenna Types/Gains
23
Figure 6-1 Remote Antennas
23
7 Equivalent Isotropically Radiated Power (Eirp)
24
Eirp Limits
24
Table 7-1 Maximum EIRP Limits for ISA100 Radios
24
Table 7-2 ISA100 Transmit Power Settings for the Antennas and Cable Lengths Specified
26
8 Setting Tx Power
28
TX Power Setting
28
9 Agency Label Information
29
External FCC/IC Labels
29
External FCC/IC Label
29
10 Rf Safety, Maximum Permissible Exposure (Mpe) Statement
30
MPE Statement
30
11 Agency Compliance
31
Radio and EMC Certifications
31
Federal Communication Commission (FCC)
31
Industry Canada (IC)
31
European Telecommunications Standards Institute (ETSI)
31
Product Safety Agency Certifications
31
European Union Certification (CE-Mark)
31
