69-1435–1

T8011R PROGRAMMABLE HEAT PUMP THERMOSTAT

5 FEET

[1.5 METERS]

YES

M11338

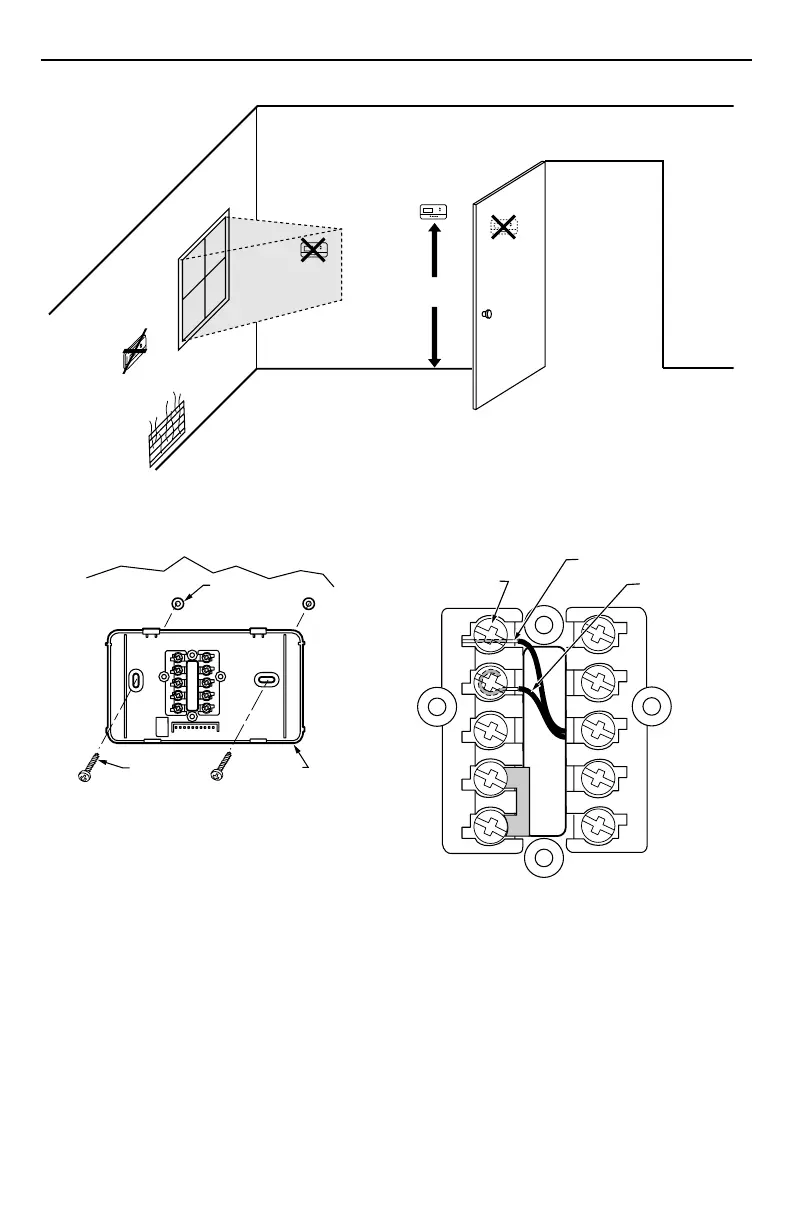

Fig. 1. Typical location of thermostat.

Fig. 2. Mounting wallplate to wall.

Wiring

IMPORTANT

Use 18-gauge maximum wire for wiring the

T8011R Thermostat.

All wiring must comply with local electrical codes and

ordinances. Disconnect the power supply to prevent

electrical shock or equipment damage.

The shape of the terminals permits insertion of straight or

wraparound wiring connections; either method is accept-

able. A letter code is located near each terminal for

identification. See Fig. 3.

NOTE: To ensure proper mounting of thermostat, restrict

all wiring to the shaded area in the center of the

terminals. See Fig. 4.

Refer to Fig. 5 for typical wiring hookup.

TERMINAL

SCREW

M11334

FOR STRAIGHT INSERTION

STRIP 5/16 IN. (8 MM)

FOR WRAPAROUND

STRIP 7/16 IN. (11 MM

)

M12202

WALL

ANCHORS (2)

WALLPLATE

MOUNTING

SCREWS (2)

Fig. 3. Wiring connections.
