Honeywell VARIODYN D1 User Manual

Installation Instruction VARIODYN
®
D1 System
58 FB 798663.GB0 / 05.19

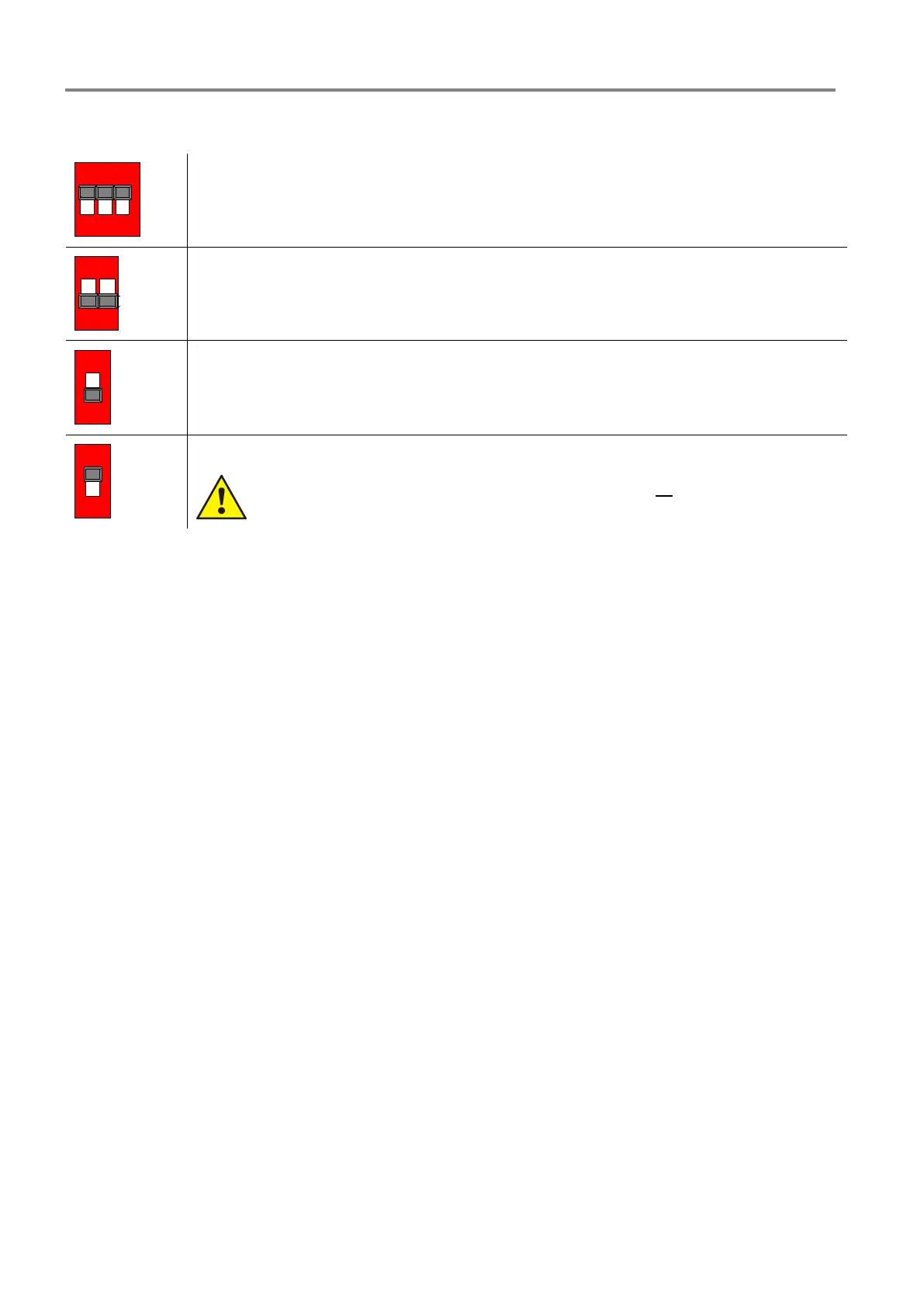

7.1.1 DIP switches 2XH series
1
2 3
ON
OFF
ON
Factory setting
1 2
ON
ON
OFF
CH 1/2
Configuration of the LED signalling for indicating the audio signals as of -20 dB or as of -6 dB.
Separate, individual settings are possible for both channels 1 (CH 1) and 2 (CH 2).
3
ON
OFF
DC FAULT
ON  An error in the emergency power supply (24 V DC – if present) is reported.
3
ON
OFF
OFF  No emergency power supply is connected.
If an emergency power supply is connected, there will be no indication of a fault
even though the DIP switch is set to ‘OFF'.
