20. Warnings
The use of any battery other than the ones indicated will void the intrinsic safety approval of the
detector.
Substitution of any components could void the intrinsic safety approval of the detector. Replace batteries
only in a safe area.

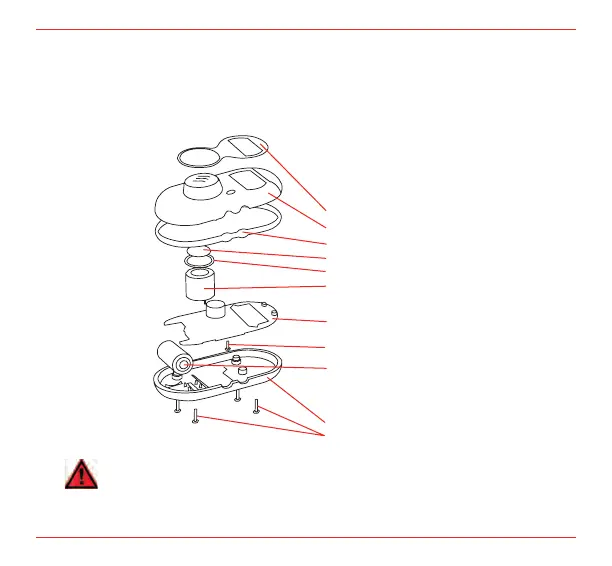

Detector Label
Body Seal
Sensor Filter
O-Ring
Plug-in Sensor
Main PCB (only remove if
changing sensor)
Main PCB Screw
Battery - Note polarity
Positive (+) should face the side
of the instrument where the two
buttons are located.
Detector Case - Rear
Detector Case Screws
Detector Case - Front
+
-
Warning:
Remove the battery before removing this insulator. Be sure that the insulator is secured in
place prior to re-installing the battery.
