Honeywell Z-Wave Series User Manual

8
Quick Installation Guide
Auto Chg. On
AM
Heat On
Menu FanMode
Fan
Auto
Mode
Heat
Wake Away HomeSleep
Following Schedule
Recovery

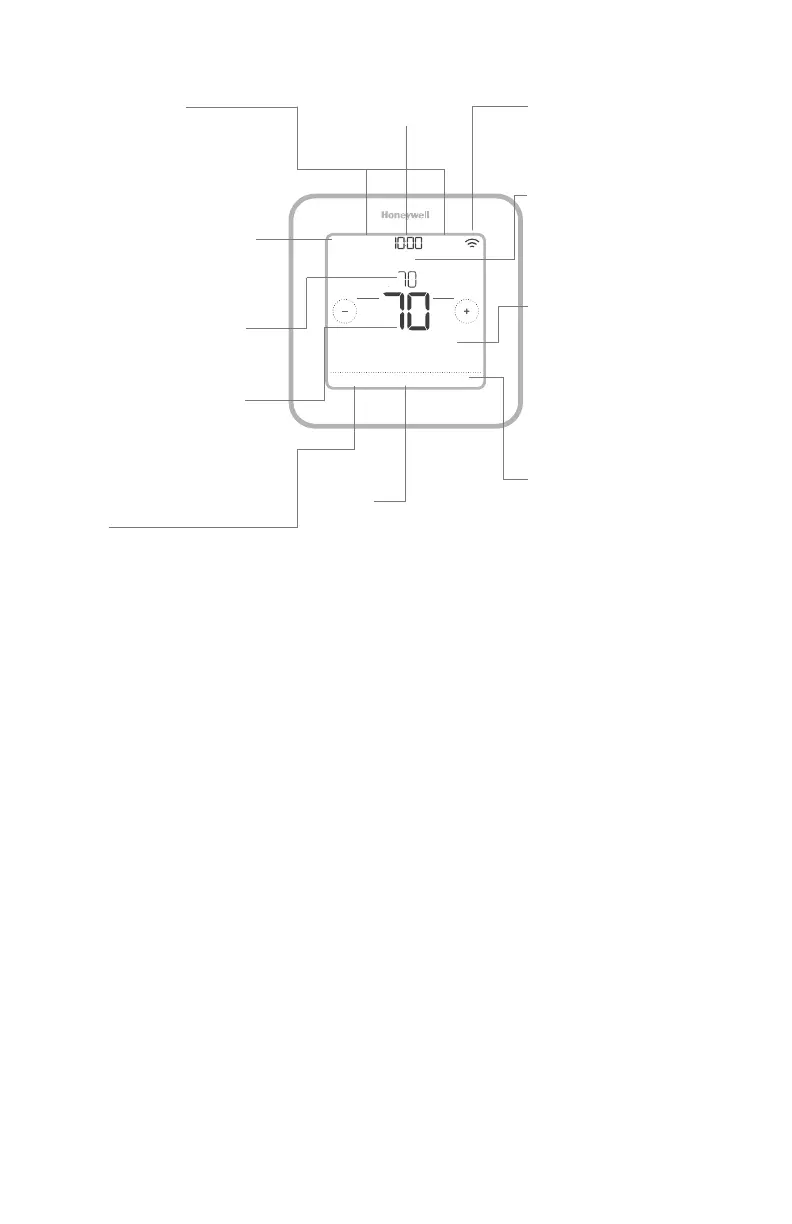

Key features
The screen will wake up by pressing the center area of the displayed temperature.
If powered by 24 VAC, the screen stays lit for 45 seconds after you complete
changes.
If powered by battery only, the screen stays lit for 8 seconds.
Brightness of an inactive backlight can be adjusted in the thermostat MENU only
if the thermostat is powered by 24 VAC.
System status
information
Cool On, Heat On
Emergency Heat On,
Recovery, or Auto
Changeover On.
Schedule information
Following time or
occupancy based
temperature control.
Desired temperature
Displays the desired
temperature setting.
Indoor temperature/
% indoor relative
humidity
Touch to display either
indoor temperature or %
indoor relative humidity.
Mode
Select system mode:
Auto (if enabled)/Heat/
Cool/Off/EM Heat
(Emergency Heat if
installed and configured).
ZWave connection
status
Shows ZWave
connection status.
Messaging
Shows device setup
options, menu options,
reminders, schedule
overrides.
Schedule period
Shows schedule period:
Wake/Away/Home/
Sleep. (varies on whether
included in/excluded
from ZWave network
and program scheduled
enabled).
Fan
Select Fan mode Auto/
On/Circulate.
Time, ISU #, or
Alert #
Menu
Touch to display user
options.
Note: Long press
of Menu button
for 5 seconds to
access Advanced
Menu options.
